SK2S090-150
Technical Data
Data Sheet N1733, Rev A
SK2S090-150 Power Schottky Rectifier
Features
International standard package SOT-227
Epoxy meets UL 94V-0
Extremely low switching losses
Low IRM -values
Copper internally DBC isolated
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

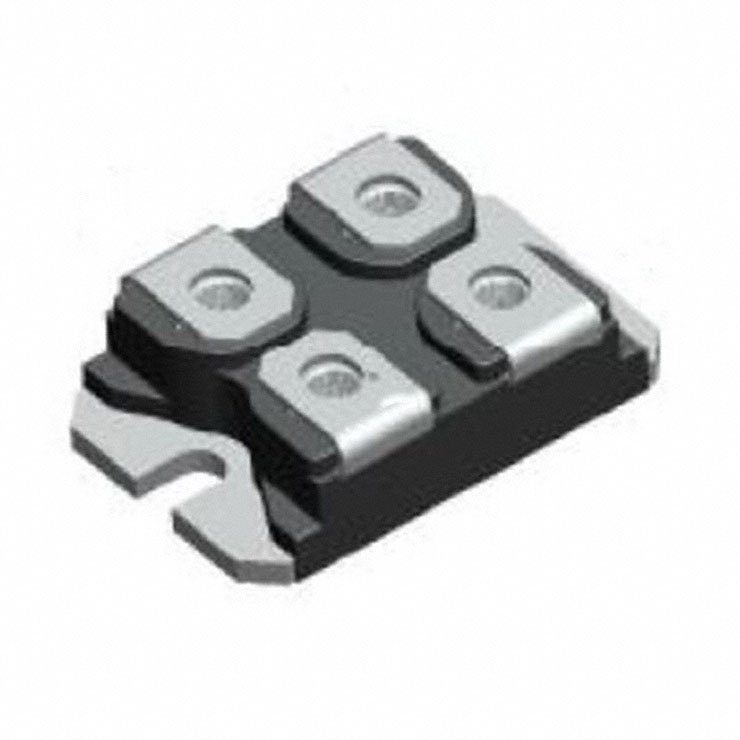

SOT-227
Circuit Diagram
Applications
Rectifiers in switch mode power Supplies(SMPS)
Free wheeling diode in low voltage Converters
Advantages
High reliability circuit operation
Low voltage peaks for reduced Protection circuits
Low noise switching
Low losses
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Symbol
Condition
VRRM
VRWM
VR
-
Average Rectified Forward Current
IF(AV)
50% duty cycle @TC =95°C,
rectangular wave form
Peak One Cycle Non-Repetitive
Surge Current (Per Leg)
IFSM
8.3 ms, half Sine pulse
Max.
Units
150
V
45(Per Leg)
90(Per Device)
A
800
A
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SK2S090-150
Technical Data
Data Sheet N1733, Rev A
Electrical Characteristics:
Characteristics
Symbol
Forward Voltage Drop(Per Leg)*
VF1
Junction capacitance
Typ.
Max.
Units
IR1
-
0.90
0.95
0.85
0.90
2
IR2
@VR = rated VR, TJ = 125 C
-
30
mA
CJ
VR=5V f=1MHz TVJ=25℃
-
2000
pF
VF2
Reverse Current(Per Leg)*
Condition
@ 45A, Pulse, TJ = 25 C
@ 90A, Pulse, TJ = 25 C
@ 45A, Pulse, TJ = 125 C
@ 90A, Pulse, TJ = 125 C
@VR = rated VR, TJ = 25 C
-
V
V
mA
* Pulse width < 300 µs, duty cycle < 2%
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Thermal Resistance Junction to
Case(Peg Device)
Mounting torque(M4)
Terminal connection torque(M4)
Typical Approximate Weight
Symbol
TJ
Tstg
RJC
SK2S090-150
Package
SOT-227
(Pb-Free)
DC operation
MD
-
wt
-
Ordering Information
Device
Condition
-
Specification
Units
-55 to +200
-55 to +200
C
C
0.4
C/W
1.1-1.5/9-13
1.1-1.5/9-13
30
Nm/
lb.in.
g
Marking Diagram
Shipping
36pcs /BULK
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
S
K
2
S
090
150
= SMC's Power Module
= SOT-227 Package
= Circuit Configuration
= Schottky Rectifier
= Forward Current (90A)
= Reverse Voltage (150V)
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SK2S090-150
Technical Data
Data Sheet N1733, Rev A
Mechanical Dimensions SOT-227(Millimeters)
38.0± 0.2
31.5± 0.1
± 0.3
12.0
9.5± 0.1
4
2
30.2± 0.1
15.0
4-M4
4.2+0.2
-0
8± 0.2
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
25MAX
4.2
4.5± 0.3
R2.1
12.7
∮4.2
SK2S090-150
Technical Data
Data Sheet N1733, Rev A
