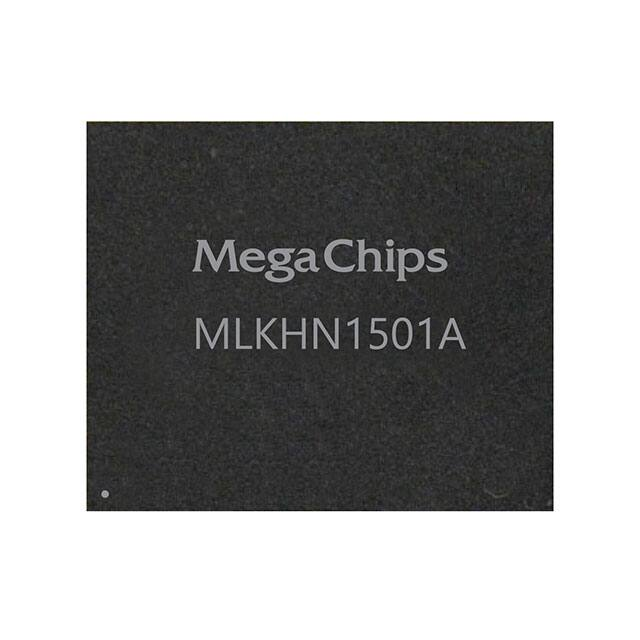

BlueChip PLC MLKHN1501 Single-Chip HD-PLC w/Multi-hop ■ GENERAL DESCRIPTION MLKHN1501 is the world’s first fully compliant IEEE 1901 HD-PLC Power line Communications (PLC) solution with “multi-hop”. It delivers bi-directional, IP based, high-speed communication over AC/DC power lines, COAX and twisted pair wiring where wider bandwidths, robustness, long-range, support for larger number of nodes, and highly secure network is required. The MLKHN1501 combines the Physical (PHY), Media-Access-Control (MAC), 128Mb SDRAM, and a fully integrated Analog-Front-End (AFE) with high precision A/D, D/A data converters and programmable gain amplifiers (PGA) in a single compact package. The modem is based on an Orthogonal Frequency Division Multiplexing (OFDM), using advanced Forward-Error-Correction (FEC) techniques to allow the most robust high-speed data communication over channels with high implosive noise such as the harsh AC power lines. The MLKHN1501 uses ITU-T G.9905, Centralized Matrix based Source Routing (CMSR) mechanism designed specifically to provide improved robustness, extended range, and wider coverage, while putting minimum load on the network. In addition, it uses a 128-bit AES encryption engine for the highest security at every node meeting today’s Internet-of-Things (IoT) requirements. ■ FEATURES • Support up to 1024 nodes • Range up to 10Km @10 hops • Data rate up to 10Mbps (UDP/10 hops) • Channel Access: CSMA/CA • HD-PLC/Ethernet/RS485 bridge • Ethernet⇔PLC⇔Ethernet • RS485⇔PLC⇔RS485 ■ APPLICATIONS • Smart Grid/AMI • Smart Buildings/Homes • Video Entry Systems • Security/Surveillance • • • • • • • High noise immunity (0dB) Supports IPv4/IPv6 Low power: 0.57W (typ) Meets EN50561-1 EMC requirements Free Topology Plug-and-Play Operating Temp: -40°C to +85°C • • • • Outdoor Lighting HVAC Industrial Automation Solar Power ■ BLOCK DIAGRAM © 2019 MegaChips MegaChips reserves the right to make changes to this document and to any products without notice. Rev 1.4 BlueChip PLC MLKHN1501 Single-Chip HD-PLC w/Multi-hop ■ KEY SPECIFICATIONS PLC Method Frequency band 2-28MHz Modulation Wavelet OFDM PHY/MAC IEEE1901 full compliant PHY Rate 240Mbps Error correction Reed-Solomon, LDPC-CC ARM w/16 Kb Cache CPU GPIO,UART, MII/RMII Peripheral I/F Power Consumption Full access Standby mode 0.57W(Typ) 0.12W(Typ) Supply Voltage 1.2, 3.3V Operating Temp Range -40℃ to 85℃ Encryption AES 128bit Memory (SDRAM) 128Mb EMC EN50561-1 System Clock 125MHz Package LBGA 238pin, 18x15mm ■ SOFTWARE DEVELOPMENT KIT MegaChips offer various reference designs to qualified customers including schematics, layout, BoM and technical support. Contents: Master ROM tools • Sample firmware • External command sample program Evaluation tools • Tool Manager (1) Power Control tool (2) Channel Monitor tool • Net test tool ■ EVALUATION KIT MegaChips offers a comprehensive set of tools to help customers shorten their design time. Our evaluation kit includes all the hardware, software, and documentation to easily set-up and evaluate the performance of the system under various conditions and configurations. The included BlueChip PLC Network Manager helps customers to configure, monitor and manage complex networks. MegaChips Corporation MegaChips Technology America Corporation Corporate Headquarters Shin-Osaka Hankyu Building 1-1-1 Miyahara, Yodogawa-ku Osaka 532-0003, Japan Makuhari Office 1-3, Nakase, Mihama-ku, Chiba 261-8501, Japan Tokyo Office 17-6 Ichibancho, Chiyoda-ku, Tokyo 102-0082, Japan 2755 Orchard Pkwy. San Jose, CA 95134, USA Tel +81-6-6399-2884 Tel +81-43-296-7414 Tel: +81-3-3512-5083 Tel: +1 (408) 570-0555 E-mail: :mca_sales@megachips.com http://www.megachips.com/ www.megachips.co.jp © 2019 MegaChips MegaChips reserves the right to make changes to this document and to any products without notice. Rev 1.4
