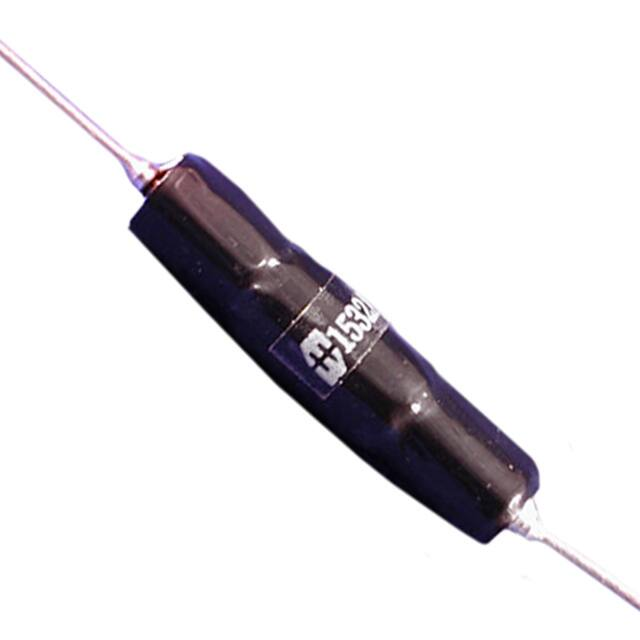

1532E

12/12/21, 2:19 PM R.F. & Hash Chokes (1531-1535 Series) - Hammond Mfg. Quality Products. Service Excellence. R.F. & Hash Chokes 1531-1535 Series Features All models impregnated with a moisture and fungus resistant varnish. Lead length of 1.5" (+/- 0.13") Wound for low distributed capacity by using solenoid (single coil) windings. Includes vinyl insulation covering. Ambient Temperature range -40°C to +105°C   Self Resonant Maximum Maximum Inductance L Q Test Min. Freq. D.C. Resistor D.C. Current Coil Core Core Coil L Tolerance Minimum Frequency (MHz) (Ohms) (ma.) Diameter Material Length Type 1531L 2.4 uH +/- 10% 56 7.9 MHz 120 0.19 1500 0.27 Phenolic 0.75 Single 1531R 10 uH +/- 10% 36 7.9 MHz 61 1.5 500 0.27 Phenolic 0.75 Single 1532A 10 uH +/- 10% 69 2.5 MHz 40 0.11 1500 0.29 Iron 0.88 Single 1532B 15 uH +/- 10% 62 2.5 MHz 33 0.17 1000 0.29 Iron 0.88 Single 1532C 24 uH +/- 10% 65 2.5 MHz 25 0.34 800 0.29 Iron 0.88 Single 1532D 39 uH +/- 10% 70 2.5 MHz 0.2 0.65 600 0.29 Iron 0.88 Single 1532E 55 uH +/- 10% 72 2.5 MHz 17 1 500 0.29 Iron 0.88 Single 1532H 100 uH +/- 10% 107 0.79 MHz 12 3 400 0.29 Iron 0.88 Single Part No. Data subject to change without notice © 2021. Hammond Manufacturing Ltd. All rights reserved. https://www.hammfg.com/electronics/transformers/choke/1531-1535 1/2 12/12/21, 2:19 PM R.F. & Hash Chokes (1531-1535 Series) - Hammond Mfg. https://www.hammfg.com/electronics/transformers/choke/1531-1535 2/2
