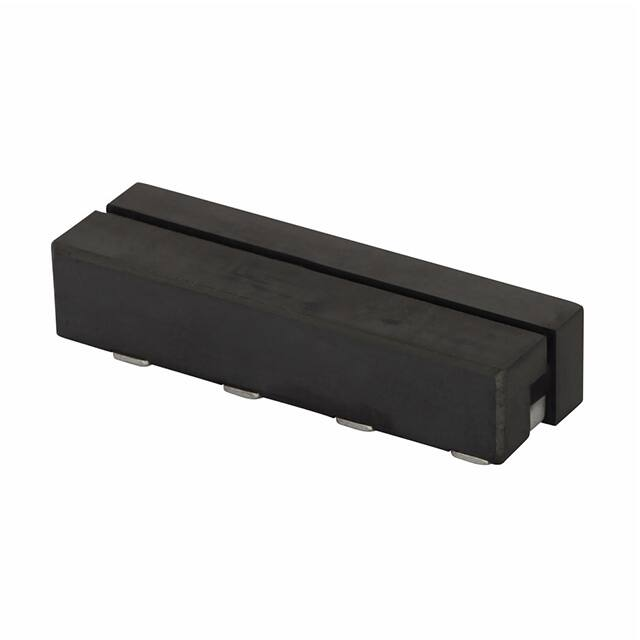

CLB1108-4-50TR-R

Technical Data 10131 Effective August 2018 Supersedes December 2015 CLB1108 Multi-phase power inductors Applications • For exclusive use with Volterra® or Maxim® VPR-Devices Environmental data Product features • Storage temperature range (component): -40 °C to +125 °C • Operating temperature range: -40 °C to +125 °C (ambient plus self-temperature rise) • Solder reflow temperature: J-STD-020 (latest revision) compliant HALOGEN Pb HF FREE • High current multi-phase inductor • 50 nH per phase coupled inductor Volterra® is a registered trademark of Volterra Semiconductor, LLC. • Ferrite core material Maxim® is a registered trademark of Maxim Integrated Devices, Inc. • Patents pending • Moisture Sensitivity Level (MSL): 1 CLB1108 Multi-phase power inductors  Technical Data 10131 Effective August 2018 Product specifications Part number4,5 Inductor phases OCL min1 @ 0.0 Adc (nH) OCL min1 @ lsat1 lsat12 (A) OCL min1A @ lsat2 lsat22 (A) SCL3 (nH) lsat32 (A) DCR ±10% (mΩ) @ +20 °C CLB1108-2-50TR-R 2 200 150 25 100 23 50 110 0.28 CLB1108-3-50TR-R 3 200 150 25 100 23 50 110 0.28 CLB1108-4-50TR-R 4 200 150 25 100 23 50 110 0.28 CLB1108-5-50TR-R 5 200 150 25 100 23 50 110 0.28 1. Open Circuit Inductance (OCL) Test Parameters: 1 MHz, 0.1 Vrms, @ +25 °C 1A. Open Circuit Inductance (OCL) Test Parameters: 1 MHz, 0.1 Vrms, @ +105 °C 2. Isat1: Peak current at which OCL drops to 150 nH min @ +25 °C Isat2: Peak current at which OCL drops to 100 nH min @ +105 °C Isat3: Peak current where SCL drops approximately 20% @ +105 °C 3. Short Circuit Inductance (SCL) Test Parameters: 1 MHz, 0.1 Vrms, 0.0 Adc @ +25 °C, ±20% - CLB1108-2-50TR-R, short 1 & 4, Measure 2 & 3 and divide by 2. - CLB1108-3-50TR-R, short 1 & 4, 3 & 6, Measure 2 & 5 and divide by 3 - CLB1108-4-50-TR-R, short 1 & 4, 3 & 6, 5 & 8 , Measure 2 & 7, and divide by 4 - CLB1108-5-50-TR-R, short 1 & 4, 3 & 6, 5 & 8, 7 & 10, Measure 2 & 9 and divide by 5 4. 5. Part Number Definition: CLB1108-X-50TR-R CLB1108 = Product code and size X = Number of phases 50 = Inductance value per phase nH TR = Tape and reel packaging -R (suffix) = RoHS compliant This device is licensed for use only when incorporated within a voltage regulator employing power regulating devices manufactured by Volterra Semiconductor, LLC or Maxim Integrated Devices, Inc. No license is granted expressly or by implication to use this device with power regulating devices manufactured by any company other than Volterra or Maxim. Dimensions (mm) Part marking: Pin 1 dot, CLB1108= (product code and size ), -2,-3,-4,-5, = (number of phases), -50= (inductance value per phase in nH), TR= (tape and reel), -R = (RoHS compliant) wwllyy = date code, R = revision level Tolerances are ±0.25 millimeters unless stated otherwise All soldering surfaces to be coplanar within 0.13 millimeter Do not route traces or vias underneath the inductor 2 www.eaton.com/electronics CLB1108 Multi-phase power inductors Technical Data 10131 Effective August 2018  Pad layouts & schematics (mm) Tolerances are ± 0.1 millimeters unless stated otherwise. www.eaton.com/electronics 3 Technical Data 10131 Effective August 2018 Packaging Information (mm) Supplied in tape and reel packaging on a 13” diameter reel. CLB1108-2-50TR-R 500 parts per reel CLB1108-3-50TR-R 200 parts per reel CLB1108-4-50TR-R 200 parts per reel CLB1108-5-50TR-R 150 parts per reel 4 www.eaton.com/electronics CLB1108 Multi-phase power inductors  Technical Data 10131 CLB1108 Multi-phase power inductors Effective August 2018  Solder reflow profile TP TC -5°C tP Max. Ramp Up Rate = 3°C/s Max. Ramp Down Rate = 6°C/s Temperature TL Preheat A T smax Package Thickness Volume mm3
