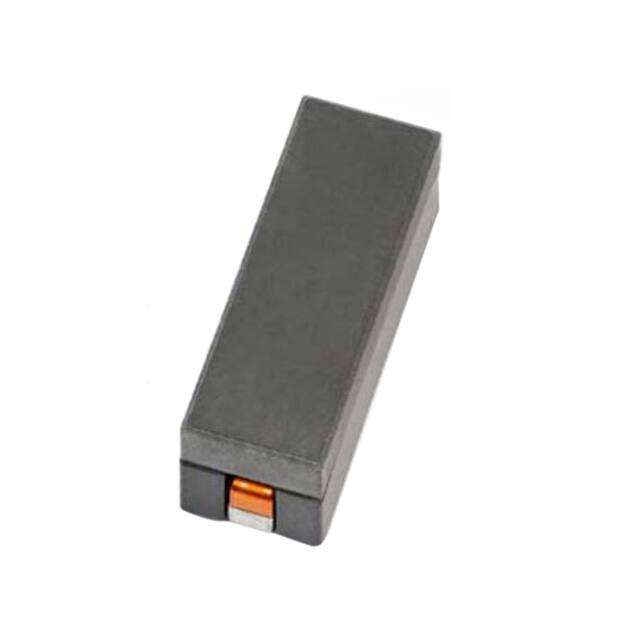

Technical Data 10673 Effective June 2018 Supersedes May 2017 FP2207R High frequency, high current power inductors Applications Product features • High current carrying capacity • Low core loss • Magnetically shielded • 22.5 mm x 8.2 mm footprint surface mountpackage in a 7.25 mm height • Moisture Sensitivity Level: 1 • Ferrite core material • Multi-phase and Vcore regulators • Voltage Regulator Modules (VRMs) and highpower density VRMs • Server and desktop • Central processing unit (CPU) • Graphics processing unit (GPU) • Application specific integrated circuit (ASIC) • Data networking and storage systems • Graphics cards and battery power systems • Point-of-Load modules (POL) Environmental data • Storage temperature range (Component): -55 °C to +125 °C • Operating temperature range: -55 °C to +125 °C (ambient plus self-temperature rise) • Solder reflow temperature: J-STD-020 (latest revision) compliant • Halogen free, lead free, RoHS compliant HALOGEN Pb HF FREE FP2207R High frequency, high current power inductors  Technical Data 10673 Effective June 2018 Product Specifications Part Number8 OCL1 (nH) ±10% FLL2 (nH) minimum Irms3 (A) Isat14 (A) Isat25 (A) Isat36 (A) DCR (mΩ) ±15% @ +20 °C K-factor7 230 196 50 70 77 72 0.47 182.5 R1 Version FP2207R1-R230-R 1. Open Circuit Inductance (OCL) Test Parameters: 1.0 MHz, 0.1 Vrms, 0.0 Adc, +25 °C 2. Full Load Inductance (FLL) Test Parameters: 1.0 MHz, 0.1 Vrms, Isat1, +25 °C 3. Irms : DC current for an approximate temperature rise of 40 °C without core loss. Derating is necessary for AC currents. PCB layout, trace thickness and width, air-flow, and proximity of other heat generating components will affect the temperature rise. It is recommended that the temperature of the part not exceed +125 °C under worst case operating conditions verified in the end application. 4. Isat1: Peak current for approximately 5% rolloff @ +25 °C 5. Isat2: Peak current for approximately 20% rolloff @ +100 °C 6. Isat3: Peak current for approximately 20% rolloff @ +125 °C 7. K-factor: Used to determine Bp-p for core loss (see graph). Bp-p = K * L * ΔI * 10-3 Bp-p: (Gauss), K: (K-factor from table), L: (Inductance in nH), ΔI (Peak to peak ripple current in Amps). 8. Part Number Definition: FP2207Rx-Rxxx-R FP2207R= Product code and size x= Version indicator Rxxx= Inductance value in μH, R= decimal point -R suffix = RoHS compliant Note: Hipot: 250 Vdc minimum for 2 seconds, 0.1 mA conductor to uncoated core (test points c to d) Dimensions (mm) c typ d typ Part marking: FP2207Rx (x = Version indicator), Rxxx = Inductance value in uH, R= decimal point), xxxx=Lot code Tolerances are ±0.15 unless stated otherwise Pad layout tolerances are ±0.1 unless stated otherwise Soldering surfaces to be coplanar within 0.1 millimeters DCR measured from point “a” to point “b” Hipot measured from point “c” to point “d” Secure Inductor to PCB using Circuit Bond LV (or equivalent) adhesive for mechanical stability to meet Vibration, Mechanical shock and shear force requirements. Do not route traces or vias underneath the inductor 2 www.eaton.com/electronics FP2207R High frequency, high current power inductors Technical Data 10673 Effective June 2018  Packaging information (mm) Supplied in tape and reel packaging , 500 parts per 13” diameter reel Temperature rise vs. total loss FP2207R1 60 Temperature Rise (°C) 50 40 30 20 10 0 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 Total Loss (W) www.eaton.com/electronics 3 FP2207R High frequency, high current power inductors  Technical Data 10673 Effective June 2018 Core loss vs. Bp-p FP2207R1 10 2 MHz 1.5 MHz Core Loss (W) 1 1 MHz 700 kHz 0.1 0.01 0.001 100 1000 10000 Bp-p (Gauss) Inductance characteristics FP2207R1-R230-R 300 250 Inductance (nH) 200 150 100 -40 °C +25 °C 50 +100 °C +125 °C 0 0 20 40 60 Idc (A) 4 www.eaton.com/electronics 80 100 120 FP2207R High frequency, high current power inductors Technical Data 10673 Effective June 2018  Solder reflow profile TP TC -5°C tP Max. Ramp Up Rate = 3°C/s Max. Ramp Down Rate = 6°C/s Temperature TL Preheat A T smax Package Thickness Volume mm3
