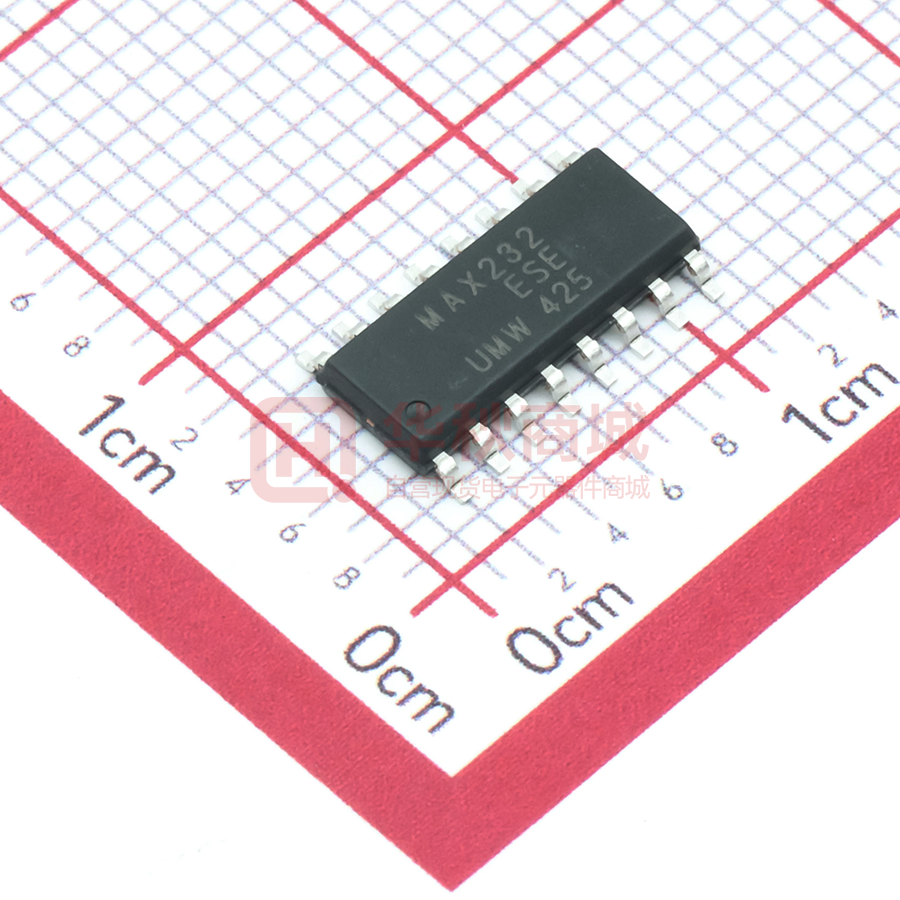

MAX232ESE

UMW R MAX232E +5 V-Powered,Multi-Channel RS-232 Drivers/Receivers The MAX232E have two drives and two receivers. The drivers and receivers meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120 kbps when loaded in accordance with the EIA/TIA-232E specification ● ● ● ● Operate from Single +5 V Power Supply; Guaranteed 120 kbps Data Rate; Latchup Free; ESD Protection ±2kV www.umw-ic.com 1 友台半导体有限公司 UMW R MAX232E +5 V-Powered,Multi-Channel RS-232 Drivers/Receivers www.umw-ic.com 2 友台半导体有限公司 UMW R MAX232E +5 V-Powered,Multi-Channel RS-232 Drivers/Receivers www.umw-ic.com 3 友台半导体有限公司 UMW R MAX232E +5 V-Powered,Multi-Channel RS-232 Drivers/Receivers www.umw-ic.com 4 友台半导体有限公司 UMW R MAX232E +5 V-Powered,Multi-Channel RS-232 Drivers/Receivers www.umw-ic.com 5 友台半导体有限公司 UMW R MAX232E +5 V-Powered,Multi-Channel RS-232 Drivers/Receivers PACKAGEOUTLINE SOP-16 UNIT:mm L E1 E MILLIMETER MIN NOM MAX A 1.80 A1 0.10 0.15 0.25 A2 1.25 1.45 1.65 b 0.33 0.51 c 0.17 0.25 D 9.50 E 5.80 E1 3.70 e b e SYMBOL L 10.20 6.00 6.20 4.10 1.27BSC 0.45 0.60 0.80 D A2 A A1 Ordering information Order code Package Baseqty Deliverymode Operating temperature range UMW MAX232ESE SOP-16 2500 Tape and reel -40°- +85° www.umw-ic.com 6 友台半导体有限公司
