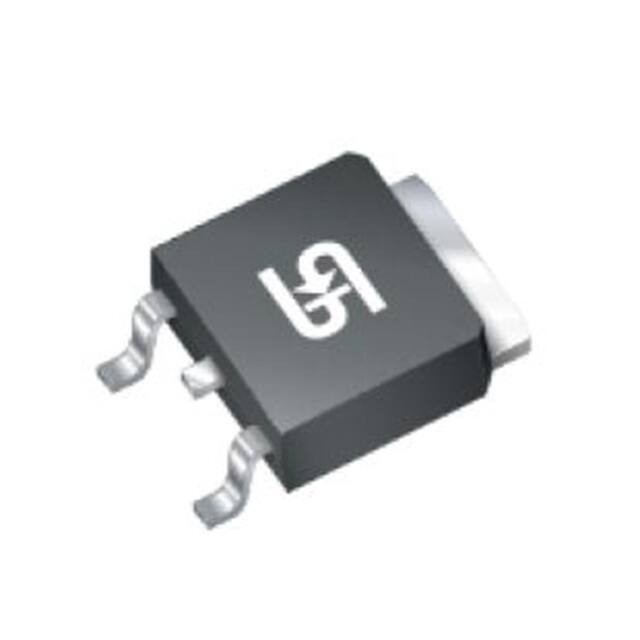

TSC5303D High Voltage NPN Transistor with Diode TO-251 (IPAK) TO-252 (DPAK) PRODUCT SUMMARY Pin Definition: 1. Base 2. Collector 3. Emitter BVCEO 400V BVCBO 700V IC VCE(SAT) Features Block Diagram Build-in Free-wheeling Diode Makes Efficient Antisaturation Operation ● 0.17V @ IC=1A, IB=0.25A en de d ● 3A No Need to Interest an hFE Value Because of Low Variable Storage-time Spread Even Though Comer Spirit Product. ● Low Base Drive Requirement ● Suitable for Half Bridge Light Ballast Application mm Structure ● Silicon Triple Diffused Type ● NPN Silicon Transistor ● Integrated Anti-parallel Collector-Emitter Diode Part No. eco Ordering Information Package Packing tR TSC5303DCP ROG TO-252 2.5kpcs / 13” Reel TSC5303DCH C5G TO-251 75pcs / Tube Note: “G” denotes Halogen Free Products Absolute Maximum Ratings (Ta = 25oC unless otherwise noted) Parameter Symbol Limit Unit VCBO 700 V Collector-Emitter Voltage @ VBE=0V VCES 700 V Collector-Emitter Voltage VCEO 400 V Emitter-Base Voltage VEBO 9 V Collector Current IC 3 A Collector Peak Current (tp
