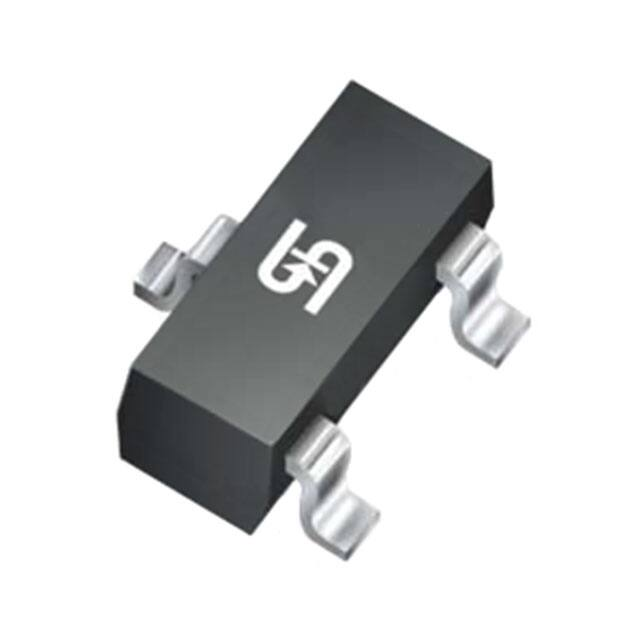

MMBT3904 Taiwan Semiconductor 300mW, NPN Small Signal Transistor FEATURES ● ● ● ● ● ● KEY PARAMETERS Low power loss, high efficiency Ideal for automated placement High surge current capability Moisture sensitivity level: level 1, per J-STD-020 RoHS Compliant Halogen-free according to IEC 61249-2-21 APPLICATIONS ● ● ● ● Switching mode power supply (SMPS) Adapters Lighting application On-board DC/DC converter PARAMETER VALUE UNIT VCBO 60 V VCEO 40 V VEBO 6 V IC 200 mA hFE 400 Package SOT-23 Configuration Single die MECHANICAL DATA ● ● ● ● ● Case: SOT-23 Molding compound meets UL 94 V-0 flammability rating Terminal: Matte tin plated leads, solderable per J-STD-002 Meet JESD 201 class 1A whisker test Weight: 8 mg (approximately) ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted) PARAMETER Marking code on the device SYMBOL MMBT3904 1AM UNIT Collector-base voltage VCBO 60 V Collector-emitter voltage VCEO 40 V Emitter-base voltage VEBO 6 V Collector current IC 200 mA Power dissipation PD 300 mW Junction temperature TJ -55 to +150 °C Storage temperature TSTG -55 to +150 °C 1 Version: E2001 MMBT3904 Taiwan Semiconductor ELECTRICAL SPECIFICATIONS (TA = 25°C unless otherwise noted) PARAMETER CONDITIONS SYMBOL MIN TYP MAX UNIT IC = 10 μA, IE = 0 V(BR)CBO 60 - - V IC = 1 mA, IB = 0 V(BR)CEO 40 - - V IE = 10 μA, IC = 0 V(BR)EBO 6 - - V Collector cutoff current VCB = 60 V, IE = 0 ICBO - - 0.1 µA Collector cutoff current VCE = 30 V, VBE(OFF) = 3 V ICEO - - 50 nA Emitter cutoff current VEB = 5 V, IC = 0 IEBO - - 0.1 µA 100 - 400 60 - - 30 - - Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage VCE = 1 V, IC = 10 mA DC current gain VCE = 1 V, IC = 50 mA hFE VCE = 1 V, IC = 100 mA Collector-emitter saturation voltage Base-emitter saturation voltage Transition frequency IC = 50 mA, IB = 5 mA VCE(sat) - - 0.30 V IC = 50 mA, IB = 5 mA VBE(sat) - - 0.95 V fT 250 - - MHz VCE = 20 V , IC = 10 mA, f= 100MHz Delay time VCC=3V,VBE=0.5V, td - - 35 ns Rise time IC=10mA, IB1=1mA tr - - 35 ns Storage time VCC=3V,IB1=IB2=1mA, ts - - 200 ns Fall time IC=10mA tf - - 50 ns ORDERING INFORMATION ORDERING CODE PACKAGE PACKING MMBT3904 RF SOT-23 3K / 7" Reel MMBT3904 RFG SOT-23 3K / 7" Reel MMBT3904 R5 SOT-23 10K / 13" Reel MMBT3904 R5G SOT-23 10K / 13" Reel MMBT3904-D0 RF SOT-23 3K / 7" Reel MMBT3904-D0 RFG SOT-23 3K / 7" Reel MMBT3904-D0 R5 SOT-23 10K / 13" Reel MMBT3904-D0 R5G SOT-23 10K / 13" Reel MMBT3904-B0 RF SOT-23 3K / 7" Reel MMBT3904-B0 RFG SOT-23 3K / 7" Reel MMBT3904-B0 R5 SOT-23 10K / 13" Reel MMBT3904-B0 R5G SOT-23 10K / 13" Reel 2 Version: E2001 MMBT3904 Taiwan Semiconductor CHARACTERISTICS CURVES (TA = 25°C unless otherwise noted) Fig. 1 Typical Pulsed Current Gain VS. Collector Current Fig.2 Collector-Emitter Saturation Voltage VS. Collector Current 0.20 V CESAT- Collector-Emitter Voltage (V) hFE - Typical Pulsed Current Gain 500 VCE = 5V 125 °C 400 300 25 °C 200 - 40 °C 100 0 0.15 β = 10 125 °C 0.10 25 °C 0.05 - 40 °C 0.00 0.1 1.0 10.0 100.0 0 IC - Collector Current (mA) 10 100 IC - Collector Current (mA) Fig.3 Base-Emitter Saturation Voltage Fig.4 Base-Emitter On Voltage VS. Collector Current VS. Collector Current 1 1 V BE(ON) - Base-Emitter On Voltage (V) 1.1 VBESAT - Base-Emitter Voltage (V) 1 β = 10 0.9 -40 °C 0.8 0.7 25 °C 0.6 0.5 125 °C 0.4 0.3 VCE= 5V -40 °C 0.8 25 °C 0.6 125 °C 0.4 0.2 0.1 1 10 100 0.1 1 10 100 IC, Collector Current (mA) IC - Collector Current (mA) 3 Version: E2001 MMBT3904 Taiwan Semiconductor CHARACTERISTICS CURVES (TA = 25°C unless otherwise noted) Fig. 5 Collector-Cutoff Current Fig. 6 Capacitance VS. Reverse Bias Voltage VS. Ambient Temperature 10 f = 1.0 MHz 100 VCB= 30V Capacitance (pF) ICBO-Collector Current (nA) 1000 10 1 Cibo Cobo 0.1 0.01 1 25 50 75 100 125 150 0.1 O TA - Ambient Temperature ( C) 1 10 100 Reverse Bias Voltage (V) 4 Version: E2001 MMBT3904 Taiwan Semiconductor PACKAGE OUTLINE DIMENSION SOT-23 SUGGESTED PAD LAYOUT 5 Version: E2001 MMBT3904 Taiwan Semiconductor Notice Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf, assumes no responsibility or liability for any errors or inaccuracies. Purchasers are solely responsible for the choice, selection, and use of TSC products and TSC assumes no liability for application assistance or the design of Purchasers’ products. Information contained herein is intended to provide a product description only. No license, express or implied, to any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright, or other intellectual property right. The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify TSC for any damages resulting from such improper use or sale. 6 Version: E2001
