TSM60NB099PW
Taiwan Semiconductor
N-Channel Power MOSFET
600V, 38A, 99mΩ
FEATURES
KEY PERFORMANCE PARAMETERS
● Super-Junction technology
PARAMETER
VALUE
UNIT
VDS
600
V
RDS(on) (max)
99
mΩ
Qg
62
nC
● High performance, small RDS(ON)*Qg figure of merit (FOM)
● High ruggedness performance
● 100% UIS and Rg tested
● Compliant to RoHS Directive 2011/65/EU and in
accordance to WEEE 2002/96/EC
● Halogen-free according to IEC 61249-2-21
APPLICATIONS
● PFC stage
● Server/Telecom Power
● Charging Station
● Inverter
● Power Supply

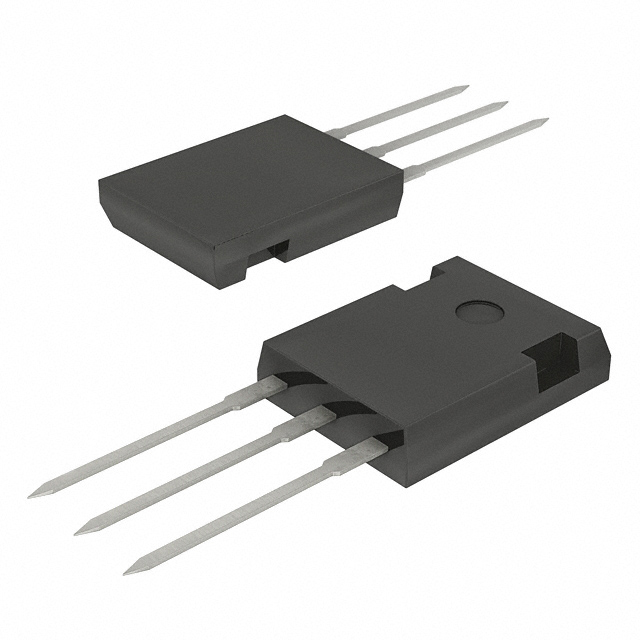

TO-247
ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted)
PARAMETER
SYMBOL
LIMIT
UNIT
Drain-Source Voltage
VDS
600
V
Gate-Source Voltage
VGS
±30
V
38
A
24
A
IDM
114
A
Continuous Drain Current
Pulsed Drain Current
TC = 25°C
(Note 1)
ID
TC = 100°C
(Note 2)
Total Power Dissipation @ TC = 25°C
PD
329
W
Single Pulse Avalanche Energy
(Note 3)
EAS
784
mJ
Single Pulse Avalanche Current
(Note 3)
IAS
5.6
A
TJ, TSTG
- 55 to +150
°C
SYMBOL
LIMIT
UNIT
Junction to Case Thermal Resistance
RӨJC
0.38
°C/W
Junction to Ambient Thermal Resistance
RӨJA
42
°C/W
Operating Junction and Storage Temperature Range
THERMAL PERFORMANCE
PARAMETER
Thermal Performance Note: RӨJA is the sum of the junction-to-case and case-to-ambient thermal resistances. The casethermal reference is defined at the solder mounting surface of the drain pins. R ӨJA is guaranteed by design while RӨCA is
determined by the user’s board design.
1
Version: A1705
TSM60NB099PW
Taiwan Semiconductor
ELECTRICAL SPECIFICATIONS (TA = 25°C unless otherwise noted)
PARAMETER
CONDITIONS
SYMBOL
MIN
TYP
MAX
UNIT
Static
Drain-Source Breakdown Voltage
VGS = 0V, ID = 250µA
BVDSS
600
--
--
V
Gate Threshold Voltage
VDS = VGS, ID = 250µA
VGS(TH)
2
3
4
V
Gate Body Leakage
VGS = ±30V, VDS = 0V
IGSS
--
--
±100
nA
Zero Gate Voltage Drain Current
VDS = 600V, VGS = 0V
IDSS
--
--
1
µA
VGS = 10V, ID = 11.7A
RDS(on)
--
86
99
mΩ
Qg
--
62
--
Qgs
--
17
--
Qgd
--
25
--
Ciss
--
2587
--
Coss
--
123
--
Crss
--
20
--
Rg
--
3.3
6.6
td(on)
--
18
--
tr
--
24
--
td(off)
--
87
--
tf
--
25
--
Body-Diode Continuous Forward Current
IS
--
--
38
A
Body-Diode Pulsed Current
ISM
--
--
114
A
VSD
--
--
1.4
V
Drain-Source On-State Resistance
(Note 4)
Dynamic
(Note 5)
Total Gate Charge
VDS = 480V, ID = 35A,
Gate-Source Charge
VGS = 10V
Gate-Drain Charge
Input Capacitance
VDS = 100V,VGS = 0V,
Output Capacitance
f = 1.0MHz
Reverse Transfer Capacitance
Gate Resistance
Switching
f = 1.0MHz
nC
pF
Ω
(Note 6)
Turn-On Delay Time
VDD = 300V,
Turn-On Rise Time
RGEN = 5Ω,
Turn-Off Delay Time
ID = 17.5A, VGS = 10V,
Turn-Off Fall Time
ns
Source-Drain Diode
Forward Voltage
(Note 4)
IS = 35A, VGS = 0V
Reverse Recovery Time
IS = 17.5A
trr
--
342
--
ns
Reverse Recovery Charge
dIF/dt = 100A/μs
Qrr
--
5.3
--
μC
Notes:
1.
Current limited by package.
2.
Pulse width limited by the maximum junction temperature.
3.
L = 50mH, IAS = 5.6A, VDD = 50V, RG = 25Ω, Starting TJ = 25 C
4.
Pulse test: PW ≤ 300µs, duty cycle ≤ 2%.
5.
For DESIGN AID ONLY, not subject to production testing.
6.
Switching time is essentially independent of operating temperature.
o
ORDERING INFORMATION
PART NO.
PACKAGE
PACKING
TSM60NB099PW C1G
TO-247
25pcs / Tube
2
Version: A1705
TSM60NB099PW
Taiwan Semiconductor
CHARACTERISTICS CURVES
(TC = 25°C unless otherwise noted)
Output Characteristics
Transfer Characteristics
45
45
VGS=10V
VGS=9V
VGS=8V
VGS=7V
VGS=6V
27
ID, Drain Current (A)
ID, Drain Current (A)
36
18
9
36
27
25℃
18
9
VGS=5V
150℃
-55℃
0
0
0
2
4
6
8
0
2
On-Resistance vs. Drain Current
8
Gate-Source Voltage vs. Gate Charge
0.2
10
0.16
0.12
0.08
VGS=10V
0.04
VDS=480V
ID=35A
8
6
4
2
0
0
0
9
18
27
36
0
45
10
On-Resistance vs. Junction Temperature
RDS(on), Drain-Source On-Resistance (Ω)
VGS=10V
ID=11.7A
2
1.5
1
0.5
0
-75
-50
-25
0
25
50
75
30
40
50
60
70
On-Resistance vs. Gate-Source Voltage
3
2.5
20
Qg, Gate Charge (nC)
ID, Drain Current (A)
RDS(on), Drain-Source On-Resistance
(Normalized)
6
VGS, Gate to Source Voltage (V)
VGS, Gate to Source Voltage (V)
RDS(on), Drain-Source On-Resistance (Ω)
VDS, Drain to Source Voltage (V)
4
100
125
150
TJ, Junction Temperature (°C)
3
0.3
0.25
0.2
0.15
ID=11.7A
0.1
0.05
0
5
6
7
8
9
10
VGS, Gate to Source Voltage (V)
Version: A1705
TSM60NB099PW
Taiwan Semiconductor
CHARACTERISTICS CURVES
(TC = 25°C unless otherwise noted)
BVDSS vs. Junction Temperature
Capacitance vs. Drain-Source Voltage
1.2
BVDSS (Normalized)
Drain-Source Breakdown Voltage
C, Capacitance (pF)
100000
10000
CISS
1000
COSS
100
CRSS
10
1
ID=1mA
1.1
1
0.9
0.8
0
100
200
300
400
500
600
-75
-50
VDS, Drain to Source Voltage (V)
Maximum Safe Operating Area, Junction-to-Case
0
25
50
75
100 125 150
Source-Drain Diode Forward Current vs. Voltage
1000
100
IS, Reverse Drain Current (A)
ID, Drain Current (A)
-25
TJ, Junction Temperature (°C)
RDS(ON)
100
10
1
SINGLE PULSE
RӨJC=0.38°C/W
TC=25°C
10
150℃
1
25℃
-55℃
0.1
0.1
1
10
100
0.2
1000
0.4
0.6
0.8
1
1.2
VSD, Body Diode Forward Voltage (V)
VDS, Drain to Source Voltage (V)
Normalized Effective Transient
Thermal Impedance, ZӨJC
Normalized Thermal Transient Impedance, Junction-to-Case
10
SINGLE PULSE
RӨJC=0.38°C/W
1
Duty=0.5
Duty=0.2
Duty=0.1
Duty=0.05
Duty=0.02
Duty=0.01
Single
0.1
0.01
0.001
0.00001
0.0001
0.001
Notes:
Duty = t1 / t2
TJ = TC + PDM x ZӨJC x RӨJC
0.01
0.1
1
t, Square Wave Pulse Duration (sec)
4
Version: A1705
TSM60NB099PW
Taiwan Semiconductor
PACKAGE OUTLINE DIMENSIONS (Unit: Millimeters)
TO-247
MARKING DIAGRAM
TSC
60NB099
GYWWF
G
Y
WW
F
= Halogen Free
= Year Code
= Week Code (01~52)
= Factory Code
5
Version: A1705
TSM60NB099PW
Taiwan Semiconductor
