PART CODE:
DBS104S000S140
SPECIFICATION SHEET
SPECIFICATION SHEET NO.
N0626-DBS104S000S140
DATE
June 26, 2021
REVISION
A0
DESCRIPITION
SMD Single Phase Glass Passivated Bridge Rectifier, DBS series,
DB104S Type 4 Pads,
Reverse Voltage 400V Max. Forward Current 1.0A Max.
Operating Temp. Range -55°C ~+150°C,
Package in Tape/Reel, 1000pcs/Reel
RoHS/RoHS III compliant
CUSTOMER
CUSTOMER PART NUMBER
CROSS REF. PART NUMBER
ORIGINAL PART NUMBER
MDD DB104S
PART CODE
DBS104S000S140
VENDOR APPROVE
Issued/Checked/Approved
DATE: June 26, 2021
CUSTOMER APPROVE
DATE:
1
NextGen Components, Inc.
sales@NextGenComponent.com
www.NextGenComponent.com
PART CODE:
DBS104S000S140
SMD BRIDGE RECTIFER DBS SERIES
MAIN FEATURE
• Reliable low cost construction utilizing molded plastic technique
• Small size simple installation
• High forward surge current capability
• High temperature soldering guaranteed.
• 260 °C/10 seconds, at 5 lbs (2.3kg) tension
APPLICATION
• For printed circuit board
RFQ
PART CODE GUIDE
Request For Quotation
DBS
104S000
S
140
1
2
3
4
1) DBS: SMD Single Phase Glass Passivated Bridge Rectifier, 4 Pads, DBS series
2) 104S000: Type code for original part number DB104S
3) S: Package code, Tape/reel, 1000pcs/reel.
4) 140: Specification code for Reverse Voltage 400V Max. Forward Current 1.0A Max.
MORE ITEMS AVAILABLE
DBS101S000S105
DBS102S000S110
DBS106S000S180
DBS107S000S10A
DBS151S0S01505
DBS152S0S01510
DBS156S0S01580
DBS157S0S0150A
DBS201S000S205
DBS202S000S210
DBS206S000S280
DBS207S000S20A
DBS103S000S120
DBS104S000S140
DBS105S000S160
DBS153S0S01520
DBS154S0S01540
DBS155S0S01560
DBS203S000S220
DBS204S000S240
DBS205S000S260
2
NextGen Components, Inc.
sales@NextGenComponent.com
www.NextGenComponent.com
PART CODE:
DBS104S000S140
SMD BRIDGE RECTIFER DBS SERIES
DIMENSION (Unit: Inch/mm)

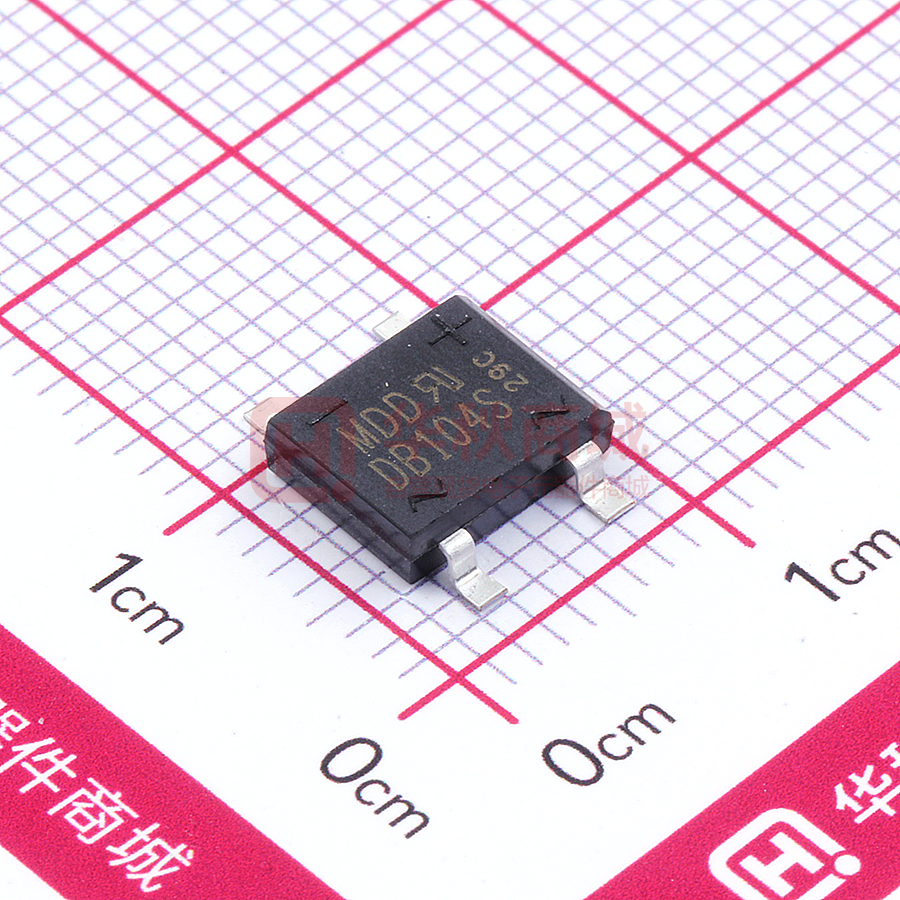

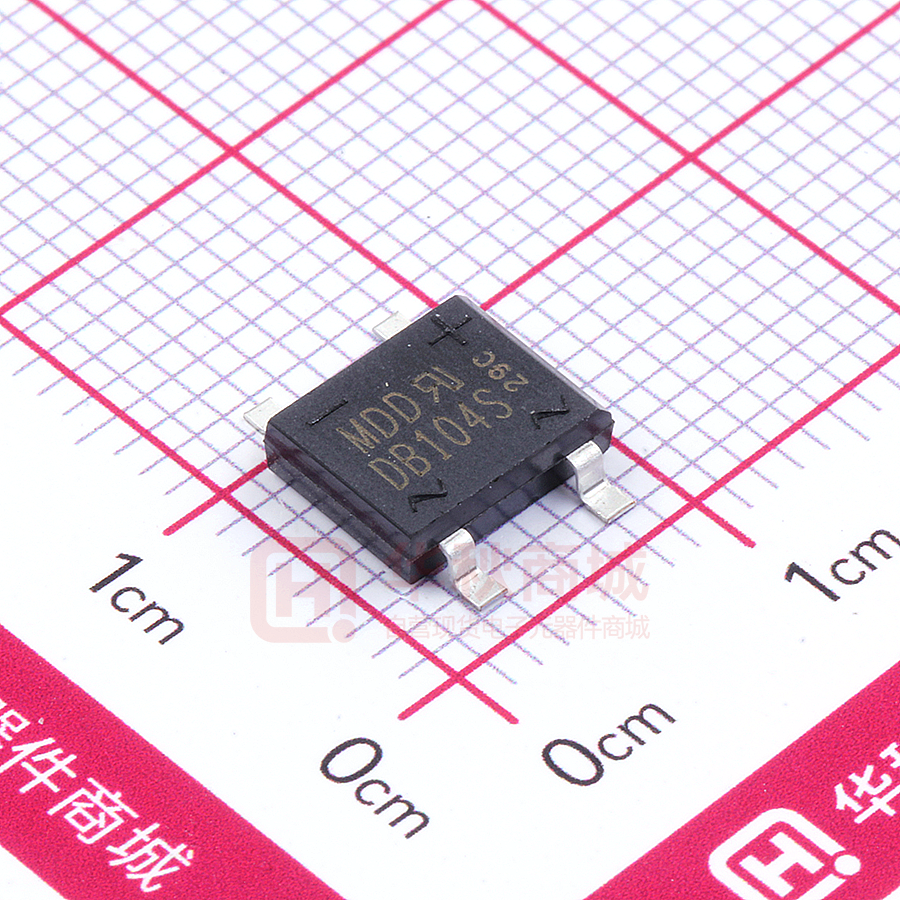

Image for reference
Marking: DB104S
DBS
3
NextGen Components, Inc.
sales@NextGenComponent.com
www.NextGenComponent.com
PART CODE:
DBS104S000S140
SMD
SMD SCHOTTKY
BRIDGE
SMD
RECTIFER
GENERAL
BARRIER
DBS
RECTIFER
RECTIFER
SERIES
MECHANICAL DATA
Case
Terminals
Polarity
Mounting
Position
Weight
per piece
JEDEC DBS molded
plastic body
Solder plated,
Solderable per
MIL-STD-750,
Method 2026
Polarity symbol
marking on case
Any
0.020 Ounce,
0.622 grams
MAX. RATING & CHARACTERISTICS
Parameter
SYMBOLS
VALUE
Min.
Typical
UNITS
Max.
Repetitive peak reverse voltage
V RRM
400
Volts
RMS voltage
V RMS
280
Volts
DC blocking voltage
V DC
400
Volts
Average forward output rectified current
I AV
1.0
A
at Tc= 40°C
I FSM
Peak forward surge current 8.3ms single half
50
A
sine-wave superimposed on rated load
(JEDEC Method)
Instantaneous forward voltage at 1.0A
DC reverse current at rated DC
blocking voltage
Junction capacitance
Thermal resistance
Operating junction temperature range
Storage temperature range
TA=25℃
VF
1.1
Volts
IR
10
µA
500
µA
TA=100℃
CJ
-
pF
R QJA
-
°C/W
TJ
-55
+150
T STG
-55
+150
°C
Note
1. Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz, resistive or inductive load, for
capacitive load current derate by 20%.
4
NextGen Components, Inc.
sales@NextGenComponent.com
www.NextGenComponent.com
PART CODE:
DBS104S000S140
SMD BRIDGE
SMD
RECTIFER
GENERAL
DBS
RECTIFER
SERIES
RELIABILITY
Number
Experiment Items
Experiment Method And Conditions
Reference
Documents
1
Solder Resistance Test
Test 260°C± 5°C for 10 ± 2 sec.
Immerse body into solder 1/16” ± 1/32"
MIL-STD-750D
METHOD-2031.2
2
Solderability Test
230°C ±5°C for 5 sec.
MIL-STD-750D
METHOD-2026.1 0
3
Pull Test
1 kg in axial lead direction for 10 sec.
MIL-STD-750D
METHOD-2036.4
4
Bend Test
0.5Kg Weight Applied To Each Lead,
Bending Arcs 90 °C ± 5 °C For 3 Times
MIL-STD-750D
METHOD-2036.4
5
High Temperature Reverse
Bias Test
TA=100°C for 1000 Hours at VR=80%
Rated VR
MIL-STD-750D
METHOD-1038.4
6
Forward Operation Life Test
TA=25°C Rated Average Rectified
Current
MIL-STD-750D
METHOD-1027.3
7
Intermittent Operation Life
Test
On state: 5 min with rated IRMS Power
Off state: 5 min with Cool Forced Air.
On and off for 1000 cycles.
MIL-STD-750D
METHOD-1036.3
8
Pressure Cooker Test
15 PSIG, TA=121°C, 4 hours
MIL-S-19500
APPENOIXC
9
Temperature Cycling Test
-55°C~+125°C; 30 Minutes For Dwelled
Time 5 minutes for transferred time.
Total: 10 cycles.
MIL-STD-750D
METHOD-1051.7
10
Thermal Shock Test
0°C for 5 minutes., 100°C for 5minutes,
Total: 10 cycles
MIL-STD-750D
METHOD-1056.7
11
Forward Surge Test
8.3ms Single Sale Sine-wave One Surge.
MIL-STD-750D
METHOD-4066.4
12
Humidity Test
TA=65°C, RH=98% for 1000 hours.
MIL-STD-750D
METHOD-1021.3
13
High Temperature Storage
life Test
150°C for 1000 Hours
MIL-STD-750D
METHOD-1031.5
5
NextGen Components, Inc.
sales@NextGenComponent.com
www.NextGenComponent.com
PART CODE:
DBS104S000S140
SMD BRIDGE RECTIFER DBS SERIES
SUGGESTED REFLOW PROFILE (For Reference Only)
•
Recommended peak temperature is over 245℃, If peak temperature is below 245 ℃, you may adjust the
following parameters; time length of peak temperature (longer), time length of soldering (longer), thickness of
solder paste (thicker)
•
Welding shall not exceed 2 times
•
Remark: lead free solder paste (96.5 sn/3.0 Ag/0.5Cu)
6
NextGen Components, Inc.
sales@NextGenComponent.com
www.NextGenComponent.com
PART CODE:
DBS104S000S140
SMD BRIDGE RECTIFER DBS SERIES
RATINGS AND CHARACTERISTIC CURVES (For Reference Only)
7
NextGen Components, Inc.
sales@NextGenComponent.com
www.NextGenComponent.com
PART CODE:
DBS104S000S140
SMD
SMD SCHOTTKY
BRIDGE RECTIFER
BARRIER
DBS
RECTIFER
SERIES
TAPE/REEL (Unit: mm)
All Devices are packed in accordance with EIA standard RS-481-A and specifications.
Item
Symbol
Tolerance
DBS
Carrier width
A
0.1
2.8
Carrier Length
B
0.1
5.33
Carrier Depth
C
0.1
2.36
Sprocket hole
d
0.05
1.50
13”Reel outside diameter
D
2.0
330.00
13”Reel inner diameter
D1
Min.
50.00
7”Reel outside diameter
D
-
-
7”Reel inner diameter
D1
-
-
Feed hole diameter
D2
0.5
13.00
Sprocket hole position
E
0.1
1.75
Punch hole position
F
0.1
5.50
Punch hole pitch
P
0.1
4.00
Sprocket hole pitch
P0
0.1
4.00
Embossment center
P1
0.1
2.0
Overall tape thickness
T
0.1
0.28
Tape width
W
0.3
12.00
Reel width
W1
1.0
18.0
8
NextGen Components, Inc.
sales@NextGenComponent.com
www.NextGenComponent.com
PART CODE:
DBS104S000S140
SMD BRIDGE RECTIFER DBS SERIES
PACKAGE
Case
Code
Reel
Size
MPQ
(pcs)
DBS
13”
1,000
Component
Spacing
(mm)
Qty.
Per Box
(pcs)
Inner Box
L*W*H
(mm)
Reel
Size
(mm)
Carton size
L*W*H
(mm)
Qty.
Per
Carton
(pcs)
G. W
2,000
300*300*45
330
320*320*280
10,000
6.90
(kg)
DISCLAIMER
NextGen Component, Inc. reserves the right to make changes to the product(s) and or information contained herein
without notice. No liability is assumed as a result of their use or application. No rights under any patent accompany
the sale of any such product(s) or information
9
