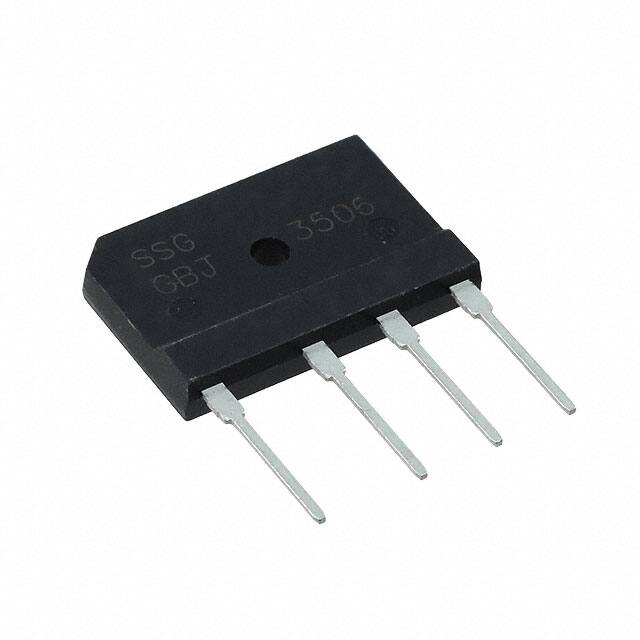

GBJ2010TB

GBJ20005 THRU GBJ2010 Technical Data Data Sheet N1795, Rev. A GBJ20005-GBJ2010 Single-Phase 20.0A Glass Passivated Bridge Rectifier Features Glass passivated die construction Low forward voltage drop High current capability High surge current capability Plastic material-UL flammability 94V-0 This is a Pb − Free Device All SMC parts are traceable to the wafer lot Additional testing can be offered upon request         GBJ Circuit Diagram Mechanical Data      Case: GBJ, Molded plastic Terminals: Plated leads solderable per MIL-STD-202, Method 208 Polarity: as marked on case Mounting Position: Any Lead Free: For RoHS / Lead Free Version Maximum Ratings @TA=25°C unless otherwise specified GBJ 20005 GBJ 2001 GBJ 2002 GBJ 2004 GBJ 2006 GBJ 2008 GBJ Units 2010 Type Number Symbol Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage VRRM VRWM VDC RMS Reverse Voltage VRMS Average forward rectified output current @TA =100°C I(AV) 20.0 A Peak Forward Surge Current,8.3ms single halfsine-wave superimposed on rated load (JEDEC method) IFSM 240 A 50 35 5 3 100 1 200 2 400 4 600 6 800 8 1000 1 V 70 7 140 1 280 2 420 4 560 5 700 1 V  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  GBJ20005 THRU GBJ2010 Technical Data Data Sheet N1795, Rev. A Electrical Characteristics@TA=25°C unless otherwise specified Type Number Symbol GBJ 20005 GBJ 2001 GBJ 2002 GBJ 2004 GBJ 2006 GBJ 2008 GBJ Units 2010 VF 1.0 1.1 V Peak Reverse Current @TA = 25°C At Rated DC Blocking Voltage @TA = 125°C IRM 10.0 500 µA Typical Junction Capacitance(per leg) (Note 1) CJ 65 pF Forward Voltage (per element) @IF =10A @IF =20A * Pulse width < 300 µs, duty cycle < 2% Thermal-Mechanical Specifications: Type Number Symbol Between Junction and Ambient, Without heatsink Between Junction and Case, Without heatsink Operating and Storage Temperature Range GBJ 20005 GBJ 2001 GBJ 2002 GBJ 2004 GBJ 2006 GBJ 2008 GBJ Units 2010 RθJA RθJc 22 1.5 °C/W TJ, TSTG -55 to +150 °C Note: 1- Measured at 1 MHZ and applied reverse voltage of 4.0 VDC. Ratings and Characteristics Curves  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  GBJ20005 THRU GBJ2010 Technical Data Data Sheet N1795, Rev. A Ordering Information Device GBJ20005 THRU GBJ2010 Marking Diagram Package Plating Shipping GBJ(Pb-Free) Pure Sn 15pcs / tube For information on tape and reel specifications, including part orientation and tape sizes, please refer to our tape and reel packaging specification. Where XXXXX is YYWWL SSG YY WW L GBJ20005 = SSG = Year = Week = Lot Number = Type Number Cautions：Molding resin Epoxy resin UL:94V-0  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  GBJ20005 THRU GBJ2010 Technical Data Data Sheet N1795, Rev. A Mechanical Dimensions GBJ (Inches/Millimeters)  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  GBJ20005 THRU GBJ2010 Technical Data Data Sheet N1795, Rev. A DISCLAIMER: 1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of the datasheet(s). 2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment, medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by means of users’ fail-safe precautions or other arrangement . 3- In no event shall SMC Diode Solutions be liable for any damages that may result from an accident or any other cause during operation of the user’s units according to the datasheet(s). SMC Diode Solution assumes no responsibility for any intellectual property claims or any other problems that may result from applications of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted by the datasheet(s) under any patents or other rights of any third party or SMC Diode Solutions. 6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of SMC Diode Solutions. 7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and regulations.  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com 
