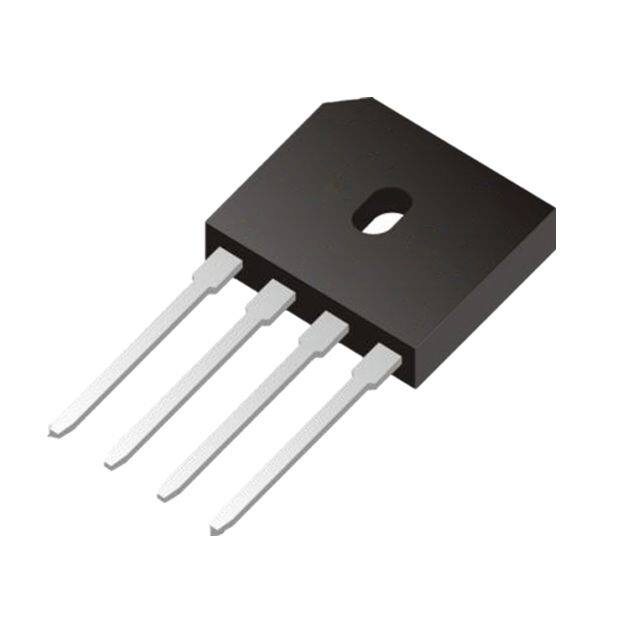

GBU810 L

PART CODE: GBU8100000L80A SPECIFICATION SHEET SPECIFICATION SHEET NO. N0729-GBU8100000L80A DATE July 29, 2021 REVISION A0 DESCRIPITION Thru Hole Glass Passivated Bridge Rectifier, GBU Series, GBU810 L Type, 4 Pins, Reverse Voltage 1000V Max. Forward Current 8A Max. Operating Temp. Range -55°C ~+150°C, Package in Bulk, 500pcs/Box RoHS/RoHS III compliant CUSTOMER CUSTOMER PART NUMBER CROSS REF. PART NUMBER ORIGINAL PART NUMBER MDD GBU810 L PART CODE GBU8100000L80A VENDOR APPROVE Issued/Checked/Approved DATE: July 29, 2021 CUSTOMER APPROVE DATE: NextGen Components, Inc. sales@NextGenComponent.com www.NextGenComponent.com PART CODE: GBU8100000L80A THRU HOLE BRIDGE RECTIFER GBU SERIES MAIN FEATURE • Surge overload rating – 200 amperes peak • Reliable low cost construction utilizing molded plastic technique • Plastic material has UL flammability classification 94V-0 APPLICATION • For printed circuit board RFQ PART CODE GUIDE Request For Quotation GBU 8100000 L 10A 1 2 3 4 1) GBU: Thru Hole Glass Passivated Bridge Rectifier, 4 Pins, GBU Series 2) 8100000: Type code for original part number GBU810 L 3) L: Package code, In Bulk, 500pcs/Box. 4) 80A: Specification code for Reverse Voltage 1000V Max. Forward Current 8.0A Max MORE ITEMS AVAILABLE GBU0400500L405 GBU0401000L410 GBU0408000L480 BGU0410000L40A GBU0800500L805 GBU0801000L810 GBU0808000L880 GBU0810000L80A GBU1000500L105 GBU1001000L110 GBU1008000L180 GBU1010000L10A GBU1500500L155 GBU1501000L151 GBU1508000L158 GBU1510000L15A GBU2000500L205 GBU2001000L201 GBU2008000L208 GBU2010000L20A GBU2500500L255 GBU2501000L251 GBU2508000L258 GBU2510000L25A NextGen Components, Inc. GBU0402000L420 GBU0404000L440 GBU0406000L460 GBU0802000L820 GBU0804000L840 GBU0806000L860 GBU1002000L120 GBU1004000L140 GBU1006000L160 GBU1502000L152 GBU1504000L154 GBU1506000L156 GBU2002000L201 GBU2003000L204 GBU2006000L206 GBU2502000L252 GBU2504000L254 GBU25060000L256 sales@NextGenComponent.com www.NextGenComponent.com PART CODE: GBU8100000L80A THRU HOLE BRIDGE RECTIFER GBU SERIES DIMENSION (Unit: Inch/mm) Image for reference Marking: GBU810 GBU NextGen Components, Inc. sales@NextGenComponent.com www.NextGenComponent.com PART CODE: GBU8100000L80A THRU HOLE SMD BRIDGE SCHOTTKY SMD RECTIFER GENERAL BARRIER GBU RECTIFER RECTIFER SERIES MECHANICAL DATA Case Terminals Polarity Mounting Position Weight per piece JEDEC GBU molded plastic body Solder plated, Solderable per MIL-STD-750, Method 2026 Polarity symbol marking on body Any 0.0693 Ounce, 2.1554 grams MAX. RATING & CHARACTERISTICS Parameter SYMBOLS VALUE Min. Typical UNITS Max. Repetitive peak reverse voltage V RRM 1000 Volts RMS voltage V RMS 700 Volts DC blocking voltage V DC 1000 Volts Average forward (with heatsink see Note 3) I AV 8.0 2.9 A rectified current at Tc= 100°C (without heatsink) I FSM 200 A Rating for Fusing (t
