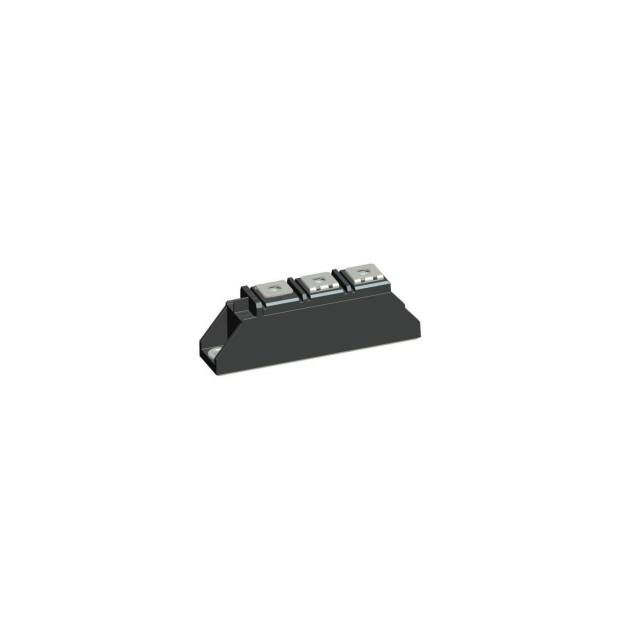

SM400T200D1 Technical Data Data Sheet N2269, REV. E SM400T200D1 SCHOTTKY RECTIFIER Features 175℃ TJ operation Center tap module High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance Low forward voltage drop High frequency operation Guard ring for enhanced ruggedness and long term reliability Baseplate: Nickel plated; Terminals: Nickel plated UL approved file E517293 This is a Pb − Free Device All SMC parts are traceable to the wafer lot            T1 Circuit Diagram Additional testing can be offered upon request Applications        High current switching power supply Plating power supply Free-Wheeling diodes Reverse battery protection Converters UPS System Welding Maximum Ratings@TJ=25°C unless otherwise specified Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Symbol VRRM VRWM VR Condition Max. Units - 200 V 200(Per Leg) 400(Per Device) A 2840 A 15 mJ 1 A Average Rectified Forward Current IF(AV) 50% duty cycle @TC =101°C, rectangular wave form Peak One Cycle Non-Repetitive Surge Current (Per Leg) IFSM 8.3 ms, half Sine pulse Non-repetitive avalanche energy EAS Repetitive avalanche current IAR TJ = 25 °C, IAS = 1.8 A, L = 10 mH Current decaying linearly to zero in 1 μs Frequency limited by TJ maximum VA = 1.5 x VR typical  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  SM400T200D1 Technical Data Data Sheet N2269, REV. E Electrical Characteristics@TJ=25°C unless otherwise specified Characteristics Symbol Forward Voltage Drop(Per Leg)* Typ. Max. IR1 @ 200A, Pulse, TJ = 25 C @ 400A, Pulse, TJ = 25 C @ 200A, Pulse, TJ = 125 C @ 400A, Pulse, TJ = 125 C @VR = rated VR, TJ = 25 C 0.90 1.02 0.78 0.93 0.99 1.15 0.82 0.97 0.02 6 mA IR2 @VR = rated VR, TJ = 125 C 6 85 mA 2870 5200 pF - 3000 3500 10000 VF1 VF2 Reverse Current(Per Leg)* Junction Capacitance(Per leg) CT Insulation Voltage Visol Maximum voltage rate of change dV/dt Condition @VR = 5V, TC = 25 C fSIG = 1MHz Ac. 50HZ; R.M.S; 1min Ac. 50HZ; R.M.S; 1sec Rated VR Units V V V V/μs * Pulse width < 300 µs, duty cycle < 2% Thermal-Mechanical Specifications@TJ=25°C unless otherwise specified Characteristics Junction Temperature Storage Temperature Maximum internal thermal resistance, junction to case per leg Typical thermal resistance, case to heatsink per module Symbol TJ Tstg Rth(J-C) Rth(C-S) Condition DC operation - Mounting Torque ±15% TM - Module(Approximately) Weight - Specification Units -55 to +175 -55 to +175 C 0.32 ℃/W 0.1 ℃/W Mounting Torque(M6) Terminal Torque(M5) 100  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  C 5 Nm 4 g SM400T200D1 Technical Data Data Sheet N2269, REV. E Ratings and Characteristics Curves TJ = 125C TJ = 125C TJ = 25C TJ = 25C Fig. 2 - Typical Reverse Characteristics Fig. 1 - Typical Forward Characteristics TJ = 25C Fig. 3 - Typical Junction Capacitance Fig. 4 Typical Thermal Impedance ZthJC Characteristics (Per Leg)  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  SM400T200D1 Technical Data Data Sheet N2269, REV. E D D == 0.20 0.20 D = 0.25 RMS RMS limit limit D = 0.33 DC DD == 0.75 0.75 D = 0.50 DC Square wave (D = 0.50) 80 % rated Vr applied Fig. 5 - Maximum Allowable Case Temperature vs. Average Forward Current (Per Leg) Fig.6 - Forward Power Loss Characteristics (Per Leg) At any rated load condition and with rated VRRM applied following surge Fig. 7 - Maximum Non-Repetitive Surge Current Note (1) Formula used: TC = TJ - (Pd + PdREV) x RthJC; Pd = forward power loss = IF(AV) x VFM at (IF(AV)/D) (see fig. 6); PdREV = inverse power loss = VR1 x IR (1 - D); IR at VR1 = 80 % rated VR  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  SM400T200D1 Technical Data Data Sheet N2269, REV. E Mechanical Dimensions T1 (Millimeters) Millimeters SYMBOL Ordering Information Device SM400T200D1 Min. Max. A B C 79.5 20.8 91.35 80.5 21.2 92.75 ΦD E F G H I I1 J K L M 6.1 6.5 14.5 19.5 19.5 14.5 30.5 24 29 5.7 4.7 67.5 15.5 20.5 20.5 15.5 31.5 25 30 6.3 5.3 68.5 N 17.5 18.5 Marking Diagram Package T1 Shipping 14pcs/ box For information on tape and reel specifications, including part orientation and tape sizes, please refer to our tape and reel packaging specification. Where XXXX is YYWW SM400T200D1 SS YY WW = Part name = SS = Year = Week Cautions：Molding resin Epoxy resin UL:94V-0  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  SM400T200D1 Technical Data Data Sheet N2269, REV. E DISCLAIMER: 1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of the datasheet(s). 2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment, medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by means of users’ fail-safe precautions or other arrangement . 3- In no event shall SMC Diode Solutions be liable for any damages that may result from an accident or any other cause during operation of the user’s units according to the datasheet(s). SMC Diode Solution assumes no responsibility for any intellectual property claims or any other problems that may result from applications of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted by the datasheet(s) under any patents or other rights of any third party or SMC Diode Solutions. 6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of SMC Diode Solutions. 7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and regulations..  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com 
