LS4148/LS4448/LS914B
Taiwan Semiconductor
450mA, 75V Switching Diode
FEATURES
KEY PARAMETERS
●
●
●
●
Low power loss, high efficiency
Ideal for automated placement
High surge current capability
Compliance to RoHS directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
● Halogen-free according to IEC 61249-2-21
PARAMETER
VALUE
UNIT
IF(AV)
450
mA
VRRM
75
V
IFSM
2
A
VF at IF=100mA
1.00
V
TJ MAX
175
°C
APPLICATIONS
●
●
●
●
Switching mode power supply (SMPS)
Adapters
Lighting application
On-board DC/DC converter
Package
LS34
Configuration
Single dice
MECHANICAL DATA

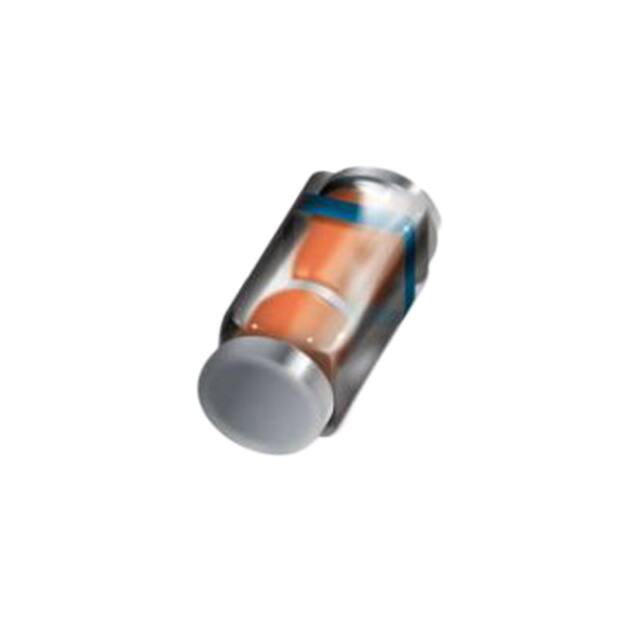

● Case: QUADRO Mini-MELF(LS34)
● Packing code with suffix "G" means green compound
(halogen-free)
● Terminal: Matte tin plated leads, solderable per J-STD-002
● Polarity: Indicated by cathode band
● Weight: 0.06 (approximately)
ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted)
PARAMETER
Repetitive peak reverse voltage
Forward current
SYMBOL
PART NUMBER
UNIT
VRRM
IF(AV)
75
450
V
mA
Peak Forward Surge Current
IFSM
2
A
Junction temperature range
TJ
-65 ~ 175
°C
Storage temperature range
TSTG
-65 ~ 175
°C
SYMBOL
LIMIT
UNIT
RӨJA
300
°C/W
THERMAL PERFORMANCE
PARAMETER
Junction-to-ambient thermal resistance
1
Version:F1610
LS4148/LS4448/LS914B
Taiwan Semiconductor
ELECTRICAL SPECIFICATIONS (TA = 25°C unless otherwise noted)
PARAMETER
CONDITIONS
SYMBOL
TYP
MAX
--
0.72
--
1.0
--
1.0
----
25
nA
5
µA
4
ρF
LS4448, LS914B
IF = 5.0mA, TJ = 25°C
Forward voltage per diode
LS4148
(1)
IF = 10.0mA, TJ = 25°C
VF
LS4448, LS914B
IF = 100mA, TJ = 25°C
VR=20V TJ = 25°C
Reverse current @ rated VR per
diode
(2)
IR
VR=75V TJ = 25°C
1 MHz, VR=0V
Junction capacitance
CJ
UNIT
V
Notes:
1. Pulse test with PW=0.3 ms
2. Pulse test with PW=30 ms
ORDERING INFORMATION
PART NO.
PACKING
PACKING CODE
CODE
SUFFIX
LS4148
L0
(Note 1)
L1
G
PACKAGE
QUADRO
Mini-MELF
PACKING
10K / 13" Reel
2.5K / 7" Reel
Notes:
1. Whole series with green compound
EXAMPLE
EXAMPLE P/N
PART NO.
PACKING CODE
LS4148 L0G
LS4148
L0
PACKING CODE
SUFFIX
G
2
DESCRIPTION
Green compound
Version:F1610
LS4148/LS4448/LS914B
Taiwan Semiconductor
CHARACTERISTICS CURVES
(TA = 25°C unless otherwise noted)
Typical Forward Characteristics
Reverse Current VS. Reverse Voltage
100
10
TA=25oC
Reverse Current (uA)
Instantaneous Forward Current (mA)
100
1
0.1
0.01
0.001
TA=25oC
10
1
0.1
0.01
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
0
20
40
Instantaneous Forward Voltage (V)
Admissible Power Dissipation Curve
100
120
Typical Junction Capacitance
1.5
600
Junction Capacitance (pF)
500
Power Dissipation (mW)
60
80
Reverse Voltage (V)
400
300
200
100
0
1.2
0.9
0.6
0.3
0.0
0
25
50
75
100
125
150
175
200
0
o
Ambient Temperature ( C)
5
10
15
20
25
30
Reverse Voltage (V)
3
Version:F1610
LS4148/LS4448/LS914B
Taiwan Semiconductor
CHARACTERISTICS CURVES
(TA = 25°C unless otherwise noted)
Forward Resistance VS. Forward Current
Dynamic Forward Resistance (Ohm)
10000
1000
100
10
1
0.01
0.1
1
10
100
Forward Current (mA)
4
Version:F1610
LS4148/LS4448/LS914B
Taiwan Semiconductor
PACKAGE OUTLINE DIMENSION
LS34
DIM.
Unit(mm)
Unit(inch)
Min
Max
Min
Max
A
3.30
3.70
0.130
0.146
B
1.40
1.60
0.055
0.063
C
0.20
0.45
0.008
0.018
D
Typ. 1.80
Typ. 0.071
SUGGEST PAD LAYOUT
DIM.
5
Unit(mm)
Unit(inch)
Typ.
Typ.
A
1.25
0.049
B
2.00
0.079
C
2.50
0.098
D
5.00
0.197
Version:F1610
LS4148/LS4448/LS914B
Taiwan Semiconductor
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
6
Version:F1610
