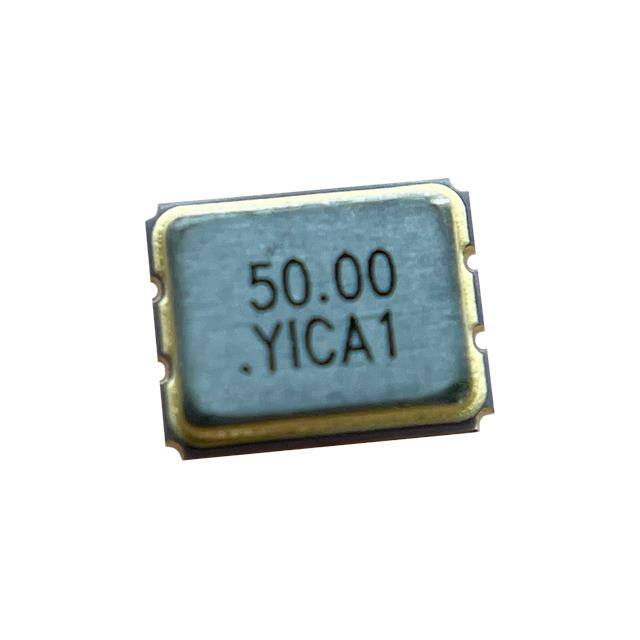

OSC48M-3.3I/S3-20T

Crystal Clock Oscillator OSC-S3 Series ● SPECIFICATION Model OSC-S3 Series Frequency range 1.000 ~ 156.000 MHz Storage temperature range - 55°C ~ + 125°C Operation temperature range - 10°C ~ + 70°C , - 40°C ~ + 125°C Frequency stability ±20 ppm ~ ±50ppm Power supply voltage: (5.0V DC available on request) Current consumption 3.3V DC ±10% 2.5V DC ±5% 1.8V DC ±5% 1.000~19.999 MHz : 7mA max 1.000~9.999 MHz : 6mA max 1.000~9.999 MHz : 5mA max 20.000~31.999 MHz : 12mA max 10.000~31.999 MHz : 8mA max 10.000~31.999 MHz : 6mA max 32.000~156.000 MHz : 15mA max 32.000~156.000 MHz : 15mA max 32.000~156.000 MHz : 10mA max Output level C-MOS Load Output voltage level 15pF max. VOL : 10% Vdd max. / VOH : 90% Vdd min. Duty cycle RISE / FALL TIME 40% ~ 60% at 1/2 Vdd 1.000~156.000MHz : 5nS max 1.000~156.000MHz : 5nS max AGING ● DIMENSIONS (mm) ● OUTPUT WAVEFORM 1.000~19.999MHz : 7nS max 20.000~156.000MHz : 6nS max ±3ppm / Year S3 ● TEST CIRCUIT *** Because S3 series has no by pass capacitor. So, we recommend our customer to use capacitor 0.01µF in join Vcc and GND.
