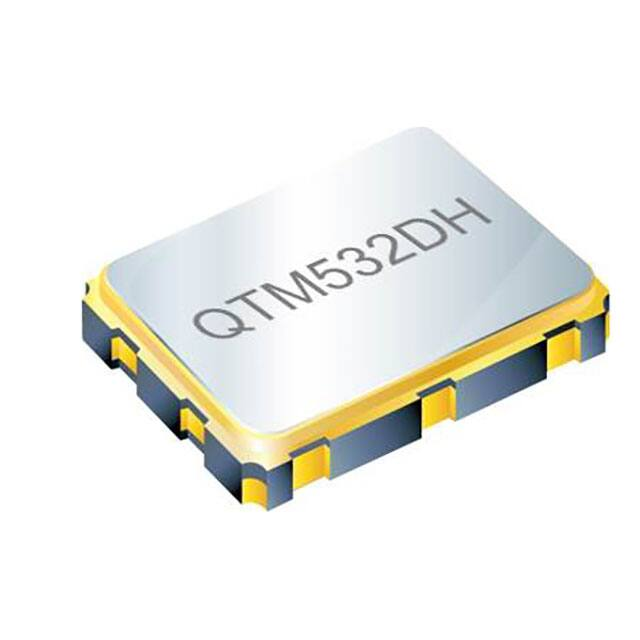

QTM532DH-625.000MCE-T 数据手册
QTM532DH
MHz LVDS Oscillator
Fuel The Digital World
Features
●
●
●
●
●
●
●
●
Applications
Frequency range : 170MHz to 2100MHz
SMD seam sealing ceramic package
Supply voltage : 2.5V, 3.3V
LVDS output
Low phase noise and phase jitter
Tri-state function available
External dimensions (mm)
L : 5.0 x W : 3.2 x H : 1.2
RoHS compliant & Pb free
●
●
●
●
●
Networking, Telecommunication,
Data communication, Switch,
Server, Storage
Fibre channel, Ethernet, SONET,
SATA, SAS, PCI-Express
Optical module
Microprocessor, DSP, FPGA,
Clock source for ADC and DAC
Test and measurement
Electrical Characteristics
Item
Frequency Range (F0)
QTM532DH
170MHz ~ 2100MHz
Frequency Stability (Fstab) over
Operating Temperature Range (TOTR)
±50ppm, ±25ppm
Operating Temperature Range (TOTR)
-40°C ~ +85°C
Supply Voltage (VDD)
Current Consumption (IDD)
2.5V, 3.3V
-40°C ~ +85°C, Note [1]
VDD ± 10%
100 mA Max.
Output Type
LVDS
Output Load
100 Ω
Offset Voltage
Conditions
1.25V Typ.
247mV Min. / 454mV Max.
170MHz ~ 700MHz
150mV Min. / 454mV Max.
700MHz ~ 2100MHz
Differential Output Voltage
Rise & Fall Time (Tr / Tf)
0.5 ns Max.
Duty Cycle
45% ~ 55%
Start-up Time
10 ms Max.
20% ~ 80% of output swing
Enable Voltage High, Logic "1"
70% VDD Min.
Enable Voltage Low, Logic "0"
30% VDD Max.
Phase Jitter (F0 = 622.08MHz)
150fs Typ. / 200fs Max.
12kHz ~ 20MHz, RMS
±3 ppm Max.
at 25°C±3°C, first year
Aging (Faging)
Storage Temperature Range (TSTR)
Input to OE pin
Note [2]
-55°C ~ +125°C
Notes:
[1] Inclusive of frequency tolerance at 25°C, variations over temperature, supply voltage and vibration.
[2] Output will be enabled if OE is Logic "1" or Open; Output will be disabled if OE is Logic "0".
[3] The standard testing environment except temperature test is 25°C±5°C, 40%~70% relative humidity.
Rev. 1.01
Page 1
www.qstproducts.com
QTM532DH
MHz LVDS Oscillator
Fuel The Digital World
Dimensions
Pin function
Pin 1
OE
Pin 2
NC
Pin 3
GND
Pin 4
OUT
Pin 5
Pin 6
OUT
VDD
Pin 7
NC
Pin 8
NC
Recommended pad layout
(Unit: mm)
* Pad dimension tolerance is ±0.2mm
* Power supply decoupling capacitor is required.
Ordering Information
QTM532DH
-
622.08M B
E
T
Please contact us for
available frequencies
Tape & Reel
Frequency Stability
Supply Voltage
Rev. 1.01
T
Packaging Method
Frequency in Hz
B
C
-
E
D
3.3 V
2.5 V
Page 2
± 50 ppm ( -40°C ~ +85°C )
± 25 ppm ( -40°C ~ +85°C )
www.qstproducts.com
QTM532DH
MHz LVDS Oscillator
Fuel The Digital World
Packing
(Unit: mm)
Reflow Profile
Solder melting point : 220°C ± 10°C, 60 sec. Min., 200 sec. Max.
Peak temperature : 260°C ± 10°C, 10 sec. Min., 30 sec. Max.
(°C)
10 sec
260
220
180
150
120 sec
Rev. 1.01
60 sec
Page 3
Time (sec)
www.qstproducts.com
