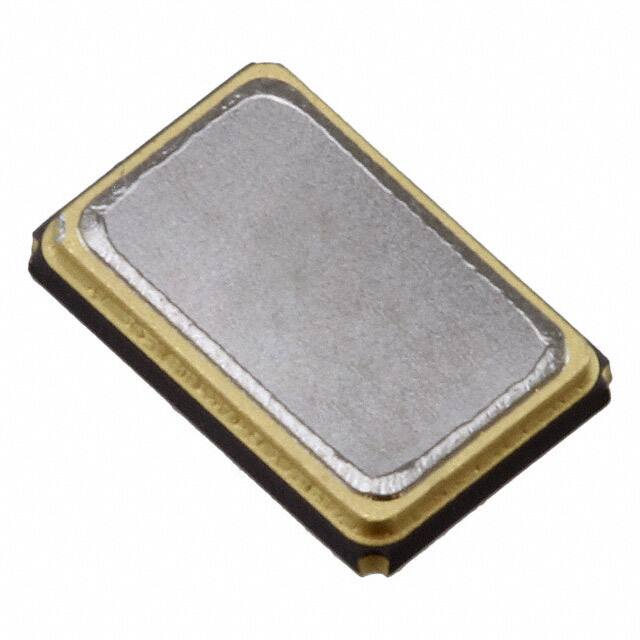

CX532AZ-A5B2C5-70-25.0D18

CARDINAL COMPONENTS Series CX532 Ceramic Surface Mount Crystal • Small overall package dimensions • Available in both 2 & 4 pads Part Numbering Example: CX532 Z - A1 B2 C2 150 - 10.0 D16 - 3 CX532 Z A1* B2 C2 150 10.0 D16 -3 SERIES ADDED FEATURES OPERATING TEMP. STABILITY TOLERANCE RESISTANCE FREQUENCY LOAD CAP. OVERTONE CX532 BLANK = BULK PACK A0 = -10°C ~ +60°C B1 = ±100 C1 = ±100 SEE CHART D16,18,20,ETC. BLANK: FUND. -3: 3rd OT BELOW DS = SERIES Z = TAPE AND REEL A1 = -10°C ~ +70°C B2 = ± 50 C2 = ± 50 A2 = -40°C ~ +85°C B3 = ± 30 C3 = ± 30 B4 = ± 10 C4 = ± 10 *NOTE: The above ABC combinations cover basic specification options. We tailor our crystal specifications to meet customer requirements. Please contact our sales department if you don’t see exactly what you need. Specifications: Frequency Range: CX532 8.000 ~ 80.000 MHz Standard Operating Temperature: -10°C ~ +60°C Frequency Stability: ±100 ppm ± 50 ppm ± 30 ppm Standard ±100 ppm ± 50 ppm ± 30 ppm Standard Frequency Tolerance: (at 25°C) Load Capacitance: YYWWCD Standard 16, 18 pF or series. Other values are available. Resistance: Maximum resistance corresponds to frequency. See chart below. Standard: Mode: Fundamental or 3rd Overtone Shunt Capacitance: 7 pF Max Aging: ± 5 ppm/year Drive Level: 100 µW Max Option: Packaging: Tape and Reel CX532A Resistance Chart: All resistances are maximum EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE) Frequency MHz ESR (Ω) Oscillation Mode 10.0 ~ 11.999 150 Fundamental 12.0 ~ 15.999 100 Fundamental 16.0 ~ 29.999 70 Fundamental 30.0 ~ 45.000 50 Fundamental Cardinal Components, Inc. 1801 Broadway St Charlottesville, VA 22902 USA TEL: (973)785-1333 E-MAIL: sales@cardinalxtal.com WEB: http://www.cardinalxtal.com
