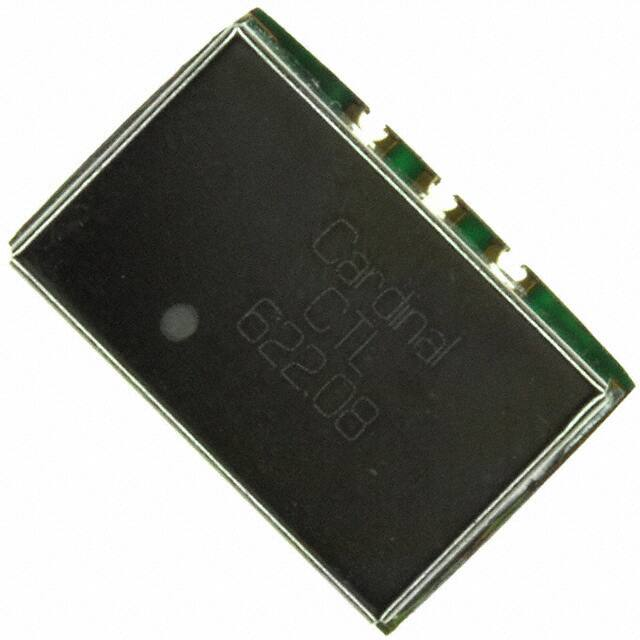

CTL-A5B3-622.08TS

CARDINAL CARDINAL COMPONENTS COMPONENTS LVDS Surface Mount TCXO * Serial Communications * Routers * Switches * WAN Interfaces * Test Equipment * LVDS Output * Industry Standard Outline Part Numbering Example: SERIES CTL CTL Z - A5 B3 - 222.5792 TS A5 Z CTL CTL Applications 222.5792 B3 OPERATING TEMP. PACKAGING OPTIONS Blank = 0°C ~ +70°C Blank = Bulk A5 = -20°C ~ +70°C Z = Tape and Reel STABILITY B3 = ± 2.5 ppm TS FREQUENCY TRI-STATE TS = Tri-State CTL Max Unit 38 640 MHz - 2.5 + 2.5 ppm 3.465 V Specifications: Min Frequency Range: Stability: Supply Voltage: 3.135 Typ 3.3 Operating Temperature: -30 + 70 °C Storage Temperature: -40 + 85 °C Duty Cycle: 45 55 % 10 mS 1 ppm 100 mA Start-Up Time: 3 Aging: (ppm/1st Year) Ta=25C, Vdd=3.3V Supply Current: Short Circuit Current: ± 50 mA RMS Period Jitter: 5 pS RMS Integrated Jitter: 12kHz to 20MHz 0.7 pS Phase Noise @ 10kHz: Output Voltage: Voh Vol Output Differential Voltage: Rise/Fall Time: Output Level: Packaging: -120 dBc/Hz Vdd - 1.6 V V 454 mV Vdd - 0.9 247 355 0.4 0.8 nS LVDS Dimensions are in mm PIN Function 1 ENABLE 2 NO CONNECT 3 Ground 4 LVDS + 5 LVDS 6 Vdd LVDS Levels Test Circuit OUT Tape and Reel 1000 pcs per Reel 50 Ω Vo 50 Ω ___ OUT Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053 E-Mail: sales@cardinalxtal.com http://www.cardinalxtal.com  Rev.3-6/11/07
