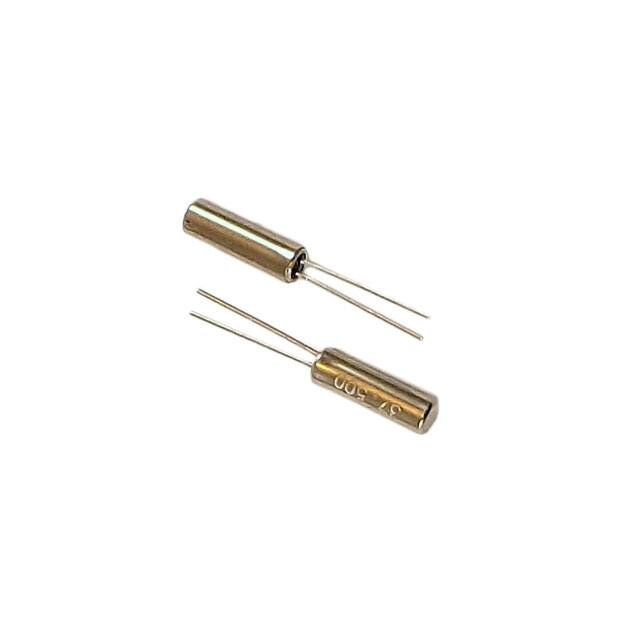

2X6-83.000K-15

RoHS Compliant 2X6 TUNING FORK CYLINDRICAL CRYSTAL (2.0 x 6.0mm) FEATURES: • MINIATURE TUNING FORK CRYSTAL • EXCELLENT HEAT RESISTANCE ■ SPECIFICATION STD: 32.768kHz (30kHz ~ 360kHz available) FREQUENCY RANGE ±20ppm FREQUENCY TOLERANCE @ 25ºC -0.034ppm ±0.006ppm / °C2 typ. TEMPERATURE COEFFICIENT -20°C ~ 70°C (-40 to 85°C option) OPERATING TEMPERATURE RANGE -55°C ~ 125°C STORAGE TEMPERATURE RANGE 25°C ± 5°C TURN OVER TEMPERATURE STD: 12.5pF (See P/N guide for other options) LOAD CAPACITANCE SHUNT CAPACITANCE 1.35pF typ. MOTIONAL CAPACITANCE 0.003pF typ. 460 typ. CAPACITANCE RATIO 50kΩ max. EQUIVALENT SERIES RESISTANCE 500MΩ min. @ 100VDC ±15VDC INSULATION RESISTANCE 1.0µW max. DRIVE LEVEL ±5.0ppm / 1st year max. AGING @ 25°C ± 3°C ■ PACKAGE DIMENSIONS ■ TEMPERATURE COEFFICIENT Ø 2.0 ±0.1 6.0±0.3 ■ PART NUMBERING GUIDE Ø 0.2±0.01 6.0 ±0.3 2X6 32.768K Frequency K: kHz 0.7 ±0.2 6 ET Load Capacitance Operating Temp. Blank: 12.5pF (STD) 6: 6pF 7: 7pF Blank: -20 to 70°C ET: -40 to 85°C Unit:mm Transko Electronics, Inc reserves the right to make changes to the product (s), service (s), and specification (s) described herein without notice. See “Terms of Sale” for details on our website. Transko Electronics, Inc. 3981 E. Miraloma Ave. CA Anaheim, 92806 CA USA92806 USA Tel: 714-528-8080 714-528-8000 Fax: 714-528-8017 Website: www.transko.com E-mail: sales@transko.com Rev. 3: 05-15-19
