LFXTAL062558REEL

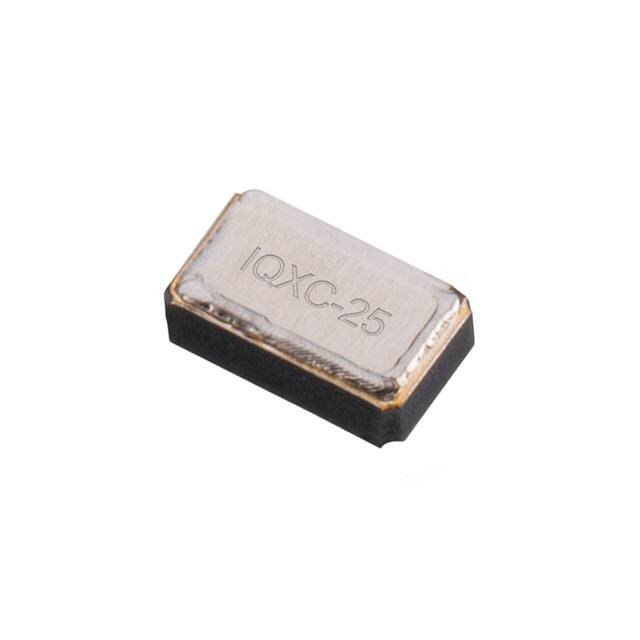

Quartz Crystal Specification Part No. + Packaging: LFXTAL062558Reel Customer Part: Description 2.0 x 1.2mm SMD crystal in a hermetically sealed ceramic package with an electron beam sealed metal lid. Suitable for real time clock applications. Model IQXC-25 Model Issue number 3 Frequency Parameters Frequency 32.7680kHz Frequency Tolerance Tolerance Condition Operating Temperature Range ±10.00ppm @ 25°C ±5°C -40.00 to 85.00°C Overtone Order Fundamental Ageing ±3ppm max per year @ 25°C Frequency Stability Coefficient: -0.03/°C² typ Drive Level: 0.1μW±0.01μW recommended, ±0.5μW max Motional Capacitance (C1): 7fF typ Outline (mm) Electrical Parameters 9.00pF 1.3pF typ, 1.7pF max ***See Technical Notes*** Load Capacitance (CL) Shunt Capacitance (C0) ESR Environmental Parameters Storage Temperature Range: –40 to 85°C Shock: IEC 60068-2-27: 1000G, 1ms, 3 times in each of 3 mutually perpendicular planes. Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min in 3 mutually perpendicular planes, duration 2hrs each plane (total 6hrs). Typical Frequency Stability Characteristics Manufacturing Details Maximum Reflow Temperature: 260°C for 5secs max RoHS Terminations Au over Ni over W base RoHS Reflow Temp 260°C max for 5secs max Compliance RoHS Status (2015/863/EU) REACh Status MSL Rating (JDEC-STD-033): Compliant Compliant Not Applicable Packaging Details Pack Style: Reel Pack Size: 3,000 Tape & reel in accordance with EIA-481-D Alternative packing option available Technical Notes ESR 70k Ohms max Sales Office Contact Details: UK: +44 (0)1460 270200 France: 0800 901 383 Germany: 0800 1808 443 USA: +1.760.318.2824 Printed on 5 Sep 21 11:42 using Part Data Sheet V1.0018 Email: info@iqdfrequencyproducts.com Web: www.iqdfrequencyproducts.com Page 1 of 1
