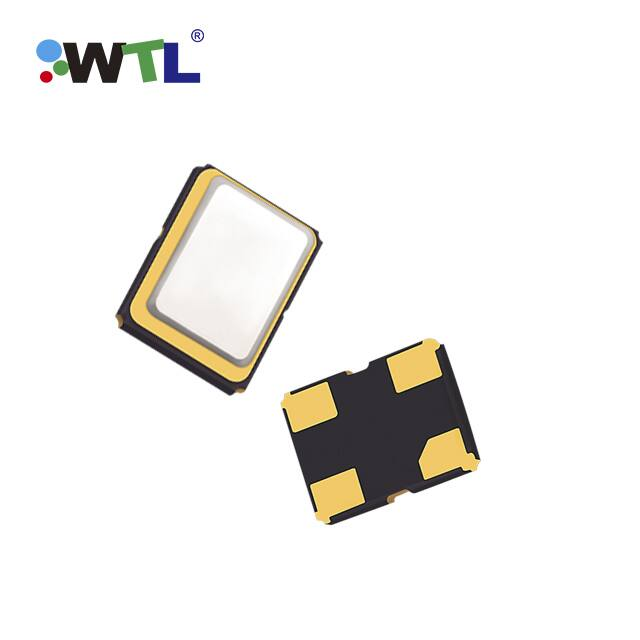

WTL3M60371VH

P/N:WTL3M60371VH SEAM SEALED CERAMIC 3.2X2.5MM SMD 深圳市维拓精电科技有限公司 WTL International Limited APPROVAL SHEET DESCRIPTION : 3.2*2.5mm 4 Pad SMD Crystal NOMINAL FREQ.: 25.000MHz WTL P/N: WTL3M60371VH VERSION: 1 DATE: 2020.04.02 Customer Customer P/N / Spacecoast WTL Customer Signature Approved by: Checked by: Issued by: REVISION HISTORY Revised Page Page 2 Revision Date Content ESR change from 2020.4.7 60Ω to 50Ω Ref. No. Reviser Kavin Liu RoHS compliant http://www.wtlcrystals.com Email:WTL@WTLCRYSTALS.COM Tel:86-755-82677582 Fax:86-755-82679302 Page 1 of 9 by WTL International Limited (version 1) P/N:WTL3M60371VH SEAM SEALED CERAMIC 3.2X2.5MM SMD CONTENT CATALOG APPROVAL SHEET P．1 CONTENT CATALOG P．2 ELECTRICAL SPECIFICATIONS P．3 DIMENSIONS P．4 MARKING P．4 STRUCTURE ILLUSTRATION P．5 RELIABILITY SPECIFICATIONS P．6 SUGGESTED REFLOW PROFILE P．7 SUBSTANCES IN PRODUCT P．7 PACKING SPECIFICATIONS P．8 WTL PART NUMBER SYSTEM P．9 Attachment(s):  1.Product Specification Sheet  2.Electrical Testing Report  3.Reliability Report  4.ICP Test Report (SGS) http://www.wtlcrystals.com Email:WTL@WTLCRYSTALS.COM Tel:86-755-82677582 Fax:86-755-82679302 Page 2 of 9 by WTL International Limited (version 1) P/N:WTL3M60371VH SEAM SEALED CERAMIC 3.2X2.5MM SMD FEATURE       Ultra thin, thickness 0.7mm Leadless type High precision characteristic covering up to high frequency range Designed for automatic mounting and reflow soldering Emboss taping specification The best choice of Bluetooth wireless communication sets.DSN,PDA and mobile phone. 1、ELECTRICAL SPECIFICATIONS Hold Style 3225 Seam Nominal Frequency 25.000MHz Mode Fundamental / AT Frequency Tolerance (at 25°C) ±20ppm Frequency Stability Over Operating Temperature Characteristics ±30ppm Operating Temperature Range ‐40℃~ + 8 5 ℃ Storage Temperature Range ‐55℃ ~ +125℃ Shunt Capacitance (C0) 5.0pF Max Driver Level (Typical) 100µW Load Capacitance(CL) 16pF ESR 50Ω Max Insulation Resistance More than 500Mohms at DC100V Aging @25°C 1st year (Max) ±3ppm Max REMARK: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER. http://www.wtlcrystals.com Email:WTL@WTLCRYSTALS.COM Tel:86-755-82677582 Fax:86-755-82679302 Page 3 of 9 by WTL International Limited (version 1) P/N:WTL3M60371VH SEAM SEALED CERAMIC 3.2X2.5MM SMD 2、DIMENSIONS (Unit: mm) 3、MARKING WTL G9 25.000 WTL 25.000 G 9 Brand Logo Frequency ( MHz ) Week (a、b、c...z、A、B、C...Y、Z ,from 1 to 52week ) YEAR (8=2018year, 9=2019year, 0=2020year....) Marking Instruction： The date code was marked on the crystal body, which will be easily traced back in case of quality issue. http://www.wtlcrystals.com Email:WTL@WTLCRYSTALS.COM Tel:86-755-82677582 Fax:86-755-82679302 Page 4 of 9 by WTL International Limited (version 1) P/N:WTL3M60371VH SEAM SEALED CERAMIC 3.2X2.5MM SMD 4、STRUCTURE ILLUSTRATION B C E A D F Parts A B C D E F Blank Conductive paste Lid Package Plating(blank) Pad Material Mostly SiO2 Ag:80%, silicone resin 10% Fe:52~56%,Ni:16~18%,Co:28~30% Ceramic Ag:99.99% Cu:6.6%,Au:0.2%,Fe:56%,Ni:18% QTY 1 2 1 1 2 4 COLOR White Greyish Silvery Brown Silvery Golden SUPPRIER Russia Ural Japan Three Bond Japan Yoshikawa Japan NTK/SMI Shanghai Yisheng Japan NTK/SMI http://www.wtlcrystals.com Email:WTL@WTLCRYSTALS.COM Tel:86-755-82677582 Fax:86-755-82679302 Page 5 of 9 by WTL International Limited (version 1) P/N:WTL3M60371VH SEAM SEALED CERAMIC 3.2X2.5MM SMD 5、RELIABILITY SPECIFICATIONS Item Low Temp. Storage (MIL‐STD‐883) High Temp. Storage (MIL‐STD‐883) High Temp＆ Humidity (JIS C5023) Thermal Shock (MIL‐STD‐883) Conditions Result Put the crystal into the ‐40℃±2℃ constant temperature box for △F≦±5 PPM 500±2 H , Measurement taken after 2 hour. △RR≦±15% Put the crystal into the +100℃±2℃ constant temperature box for △F≦±5 PPM △RR≦±15% 500±2 H, Measurement taken after 2 hour. Put the crystal into the constant temperature & humid with the △F≦±5 PPM △RR≦±15% temperatures 85 ℃ ±3 ℃ and the humidity 98% for 500±2 H. Measurement taken after 2 hour. Put the crystal into the constant temperature‐55 ℃ ±2 ℃ for △F≦±5 PPM △RR≦±15% 30±1M, then change the temperature to +85℃±2℃ for 30±1M, the total is 100times. Measurement taken after 2 hour. Resistance To Soldering Heat (MIL‐STD‐202) Passed through the re‐flow oven under the following condition. △F≦±5 PPM Preheat to 150°C±5°C for 60 to 120sec,and peak 265°C±5°C for △RR≦±15% 10s±3sec. Measurement taken after DUT being left at room temperature for at 24±2 hours Drop Test (JIS C6701) The crystal fall off the cement floor with the height 100cm±5cm △F≦±5 PPM for 3 times . Measurement taken after 2 hour. △RR≦±15% Vibration Test (MIL‐STD‐883) Apply 0.75mm vibration at sweep frequency 10～500 Hz, for 2h. △F≦±5 PPM 10 cycles in each direction of 3 axis. Measurement taken after 2 △RR≦±15% hour. Shock MIL‐STD‐202F Peak 1000m/s2, normal width 6ms half sine wave form, 3.7m/s, 3 △F≦±5 PPM perpendicular axis of samples, 3 cycles / direction, total 18 cycles. △RR≦±15% Measurement taken after 2 hour. Fine Leak (MIL‐STD‐883) Helium Bombing 4.5kgf/cm2 for 2 hr Solderability In 245 ± 5℃ solder bath for 2 ± 0.5 seconds. 8‐12X magnifier. Less than 1*10^‐ 8atm.c.c./sec, Helium Terminals shall be covered more then 95% with solder. http://www.wtlcrystals.com Email:WTL@WTLCRYSTALS.COM Tel:86-755-82677582 Fax:86-755-82679302 Page 6 of 9 by WTL International Limited (version 1) P/N:WTL3M60371VH SEAM SEALED CERAMIC 3.2X2.5MM SMD 6、SUGGESTED REFLOW PROFILE Peak temperature. 260C  5 C (10sec. max.) 7、 SUBSTANCES IN PRODUCT Drawing number Disassembly Unit/component description Homogeneous Material Name. Crystal blank Electrode Quartz Electrode‐Ag Ceramics Package Kovar ring Plate SMD3225 Metallizing Solder Lid Kovar Conduct Adhesive siliver adhesive Substance Name SiO2 Ag Al2O3 Mn203 SiO2 MoO3 MgO Fe Ni Co Au Ni Mo Ag Cu Fe Ni Co Mn Ag Pd C11H24 C12H26 SiO2 CAS No. 14808‐60‐7 7440‐22‐4 1344‐28‐1 1317‐34‐6 7631‐86‐9 1313‐27‐5 1309‐48‐4 7439‐89‐6 7440‐02‐0 7440‐48‐4 7440‐57‐5 7440‐02‐0 7439‐98‐7 7440‐22‐4 7440‐50‐8 7439‐89‐6 7440‐02‐0 7440‐48‐4 7439‐96‐5 7440‐22‐4 7440‐05‐3 1120‐21‐4 112‐40‐3 7631‐86‐9 Substance Mass. (mg) 0.2543 0.0585 8.1990 0.3644 0.3644 0.0911 0.0911 0.1061 0.0581 0.0360 0.0571 0.2433 0.1001 0.2132 0.0871 3.4096 2.4605 1.1248 0.0352 0.1540 0.0110 0.0220 0.0110 0.0220 Content Rate(％)per 100.00% 100.00% 90.00% 4.00% 4.00% 1.00% 1.00% 53.00% 29.00% 18.00% 19.00% 81.00% 100.00% 71.00% 29.00% 48.50% 35.00% 16.00% 0.50% 70.00% 5.00% 10.00% 5.00% 10.00% All the products we provide meet the requirements of RoHS and Reach regulations, and we send SGS for ICP test every year. http://www.wtlcrystals.com Email:WTL@WTLCRYSTALS.COM Tel:86-755-82677582 Fax:86-755-82679302 Page 7 of 9 by WTL International Limited (version 1) P/N:WTL3M60371VH SEAM SEALED CERAMIC 3.2X2.5MM SMD 8、PACKING SPECIFICATIONS (Unit: mm) TAPE SPECIFICATION OUTLINE DIMENSION Q’ty: 3000pcs/Reel http://www.wtlcrystals.com Email:WTL@WTLCRYSTALS.COM Tel:86-755-82677582 Fax:86-755-82679302 Page 8 of 9 by WTL International Limited (version 1) P/N:WTL3M60371VH SEAM SEALED CERAMIC 3.2X2.5MM SMD 9、WTL PART NUMBER SYSTEM : For example: WTL3M25625CH [Instructions: for project management, WTL will trace back the part number to developer wherever it goes] WTL ‐ 3M ‐ 25625 ‐ CH WTL： Brand 3M : Package Code , please see Table 1 25625: Serial number , flow code , without any rules CH: WTL Developer Code, for example: VH,CH,PZ,RZ,ML Table1 Type Series Package Code Size(mm) Type Series Package Code Size(mm) Type Series Package Code Size(mm) TX1 1M 2.0*1.6 4PAD TX2 2M 2.5*2.0 4PAD TX3 3M 3.2*2.5 4PAD SMD Seam Crystal TX4 TX5 4M 5M 4.0*2.5 5.0*3.2 4PAD 4PAD TX6 6M 6.0*3.5 4PAD TX7 7M 7.0*5.0 4PAD TX8 8M 1.6*1.2 4PAD WM5 5U 6.0*3.2 2PIN WA2 2A ¢2*6 WA3 3A ¢3*8 2PIN 2PIN WX6 9S 11.0*4.7 2PIN WX7 9M 11.4*4.7 2PIN WX5 9U 13.5*4.7 2PIN DIP Crystal WZ7 WM1 9L 1U 7.0*4.1 7.8*3.2 2PIN 2PIN TG3 3G 3.2*2.5 4PAD TG5 5G 5.0*3.2 2PAD TG6 6G 6.0*3.5 2PAD SMD Glass Crystal TG8 TG9 8G 5A 8.0*4.5 5.0*3.2 2PAD 4PAD *The above are conventional products. If you have special specifications, please contact our sales for confirmation. http://www.wtlcrystals.com Email:WTL@WTLCRYSTALS.COM Tel:86-755-82677582 Fax:86-755-82679302 Page 9 of 9 by WTL International Limited (version 1)
