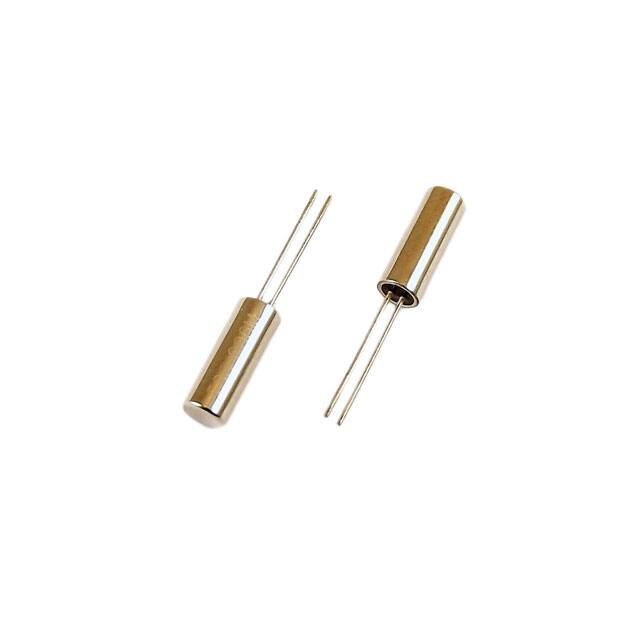

3X8-32.768K

3X8 RoHS Compliant TUNING FORK CYLINDRICAL CRYSTAL (3.1 x 8.3mm) FEATURES: • MINIATURE TUNING FORK CRYSTAL • • LOW FREQUENCY FROM 30kHz ~ 350kHz WATCH FREQUENCY ■ SPECIFICATION STD: 32.768kHz (30kHz ~350kHz available) FREQUENCY RANGE FREQUENCY TOLERANCE @ 25ºC ±20ppm -0.045ppm / °C2 typ. TEMPERATURE COEFFICIENT OPERATING TEMPERATURE RANGE -40°C to 85°C STORAGE TEMPERATURE RANGE -55°C to 125°C 25°C ± 4°C TURN OVER TEMPERATURE STD: 12.5pF (See P/N guide for other options) LOAD CAPACITANCE 1.6pF typ. SHUNT CAPACITANCE 0.0035pF typ. MOTIONAL CAPACITANCE 460 typ. CAPACITANCE RATIO 40kΩ max. EQUIVALENT SERIES RESISTANCE INSULATION RESISTANCE 500MΩ min. @ 100VDC ±15VDC 1.0µW max. DRIVE LEVEL ±5.0ppm / 1st year max. AGING ■ PACKAGE DIMENSIONS ■ TEMPERATURE COEFFICIENT 3.1 8.3 ■ PART NUMBERING GUIDE 0.35 3X8 10.0 32.768K Frequency K: kHz 1.1 Load Capacitance Blank: 12.5pF (STD) 6: 6pF 7: 7pF Unit:mm Transko Electronics, Inc reserves the right to make changes to the product (s), service (s), and specification (s) described herein without notice. See “Terms of Sale” for details on our website. Transko Cal Electronics, Crystal Comclok. Inc. 3981 E. 3981 Miraloma E. Miraloma Ave. CA Ave. 92806 Anaheim, USA CA 92806 USA Tel: 714-528-8000 714-528-8080 Fax: 714-528-8017 Website: www.transko.com E-mail: sales@transko.com Ver. Rev.2: 2: May Sep. 2015 2013
