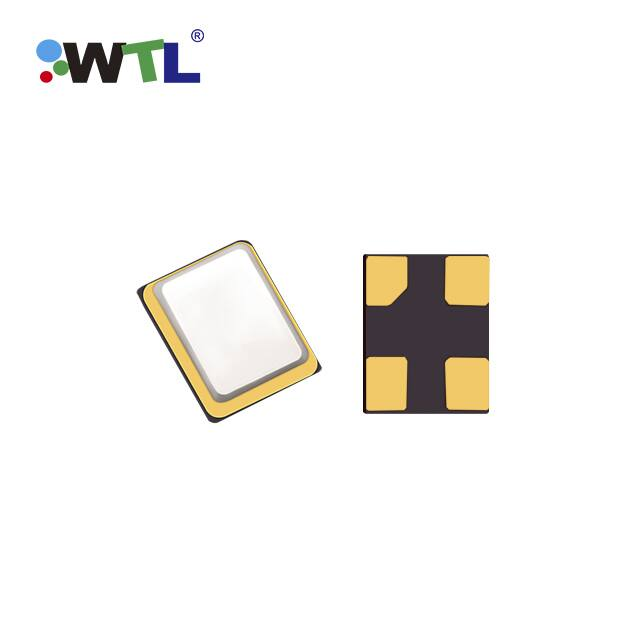

Quartz Crystal, TX9 Series SMD Seam Sealed Crystals 1.2×1.0×0.33 mm Feature Size 1.2 × 1.0, ultra miniature and lightweight SMD crystal with a low profile of 0.33mm Seam with vacuum Sealed for Ultra-small size High precision and high reliability Automatic mounting is possible Reflow is possible RoHS Compliant / Pb Free Electrical Specifications Item Specifications Frequency Range(MHZ) 32~40 40~96 Mode AT/Fundamental Load Capacitance (CL) 8pF, 10pF, 12pF or Specify Frequency Tolerance( at 25°C ) ±10ppm~±30ppm or specify Operating Temperature Range -20~+70°C or Specify Frequency Stability Over Operating Temperature Range ±10ppm ~ ±30ppm or specify Equivalent Series Resistance (ESR) max. 100Ω 150Ω Storage Temperature Range -55~+125°C Shunt Capacitance( C 0 ) 3pF Max Drive Level (Typical) 50μW max Aging @25°C 1st Year (Max) ±2 ppm,±5ppm Dimension(mm) 1.2±0.05 GND(NC) 3 4 Connection 4 3 1 2 1.0±0.05 1 2 Τοp View 0.33 MAX GND # 4pin connect to GND.NC is Open Suggested Layout 0.4±0.08 0.5 0.4 0.3 0.5 0.45 0.3±0.08 0.2 0.35 Βοttom View 01 http://www.wtlcrystals.com Email:wtl@wtlcrystals.com Tel:86-755-82677582
