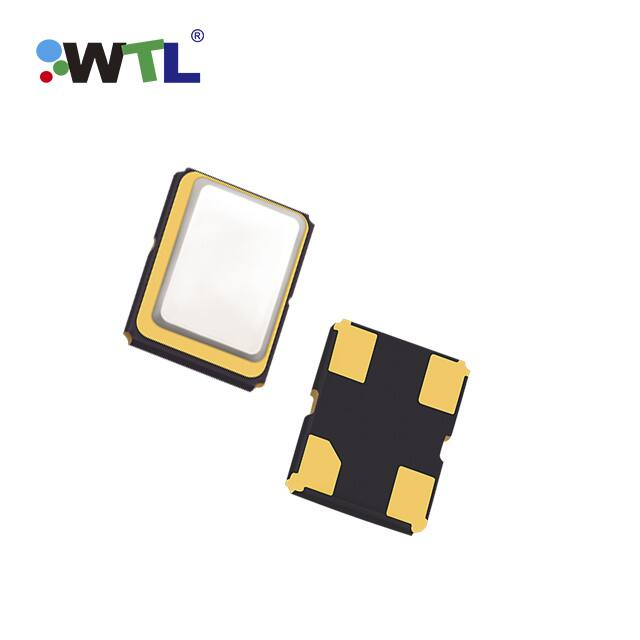

Quartz Crystal, Series TX2 SMD Seam Sealed Crystals 2.5×2.0×0.55 mm Feature Size 2.5 × 2.0 , Ultra thin , thickness 0.55mm High precision and high frequency stability Excellent heat resistance and environmental characteristics Designed for automatic mounting and reflow soldering RoHS Compliant / Pb Free Electrical Specifications Item Specifications Frequency Range(MHZ) 12~24 24~54 Mode AT/Fundamental Load Capacitance (CL) 8pF, 10pF, 12pF or Specify Frequency Tolerance( at 25°C ) ±10ppm ~ ±30ppm or specify Operating Temperature Range -20~+70°C or Specify Frequency Stability Over Operating Temperature Range ±10ppm ~ ±50ppm or specify Equivalent Series Resistance (ESR) max. 60Ω 80Ω Storage Temperature Range -55~+125°C Shunt Capacitance( C 0 ) 3pF Max Drive Level (Typical) 1 ~100 μW (10μW typical) Aging @ 25°C 1st Year (Max) ±3 ppm/year Dimension(mm) 0.55 MAX 2.00±0.1 2.50±0.1 1.0 0.85 1.0 0.9 0.7 0.65 0.9 0.9 http://www.wtlcrystals.com Email:wtl@wtlcrystals.com Tel:86-755-82677582 04
