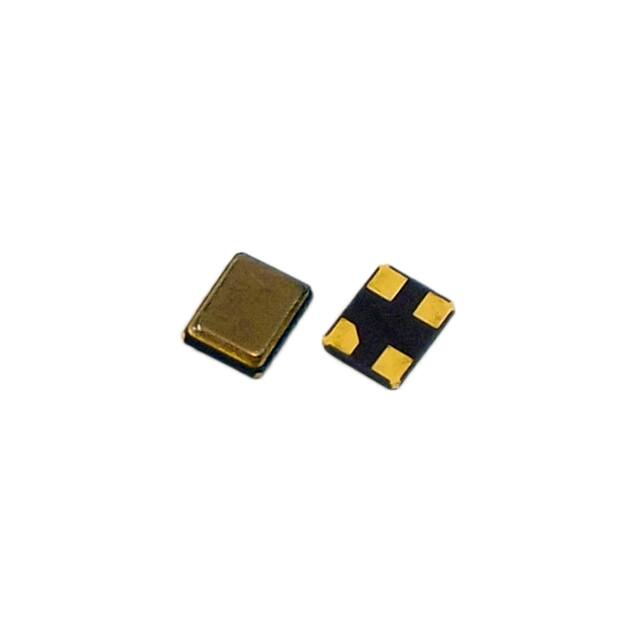

CS32-F3050CQ18-24.000M

RoHS Compliant CS32 MINIATURE CERAMIC SMD CRYSTAL (3.2 x 2.5 x 0.7mm) FEATURES: • WIDE FREQUENCY RANGE • • • LOW COST SMD PACKAGE LOW PROFILE / SUITABLE FOR REFLOW AUTOMOTIVE GRADE AEC-Q200 QUALIFIED VERSION AVAILABLE ■ SPECIFICATION 8.000MHz ~ 156.25MHz FREQUENCY RANGE FREQUENCY TOLERANCE @ 25ºC ±10ppm ~ ±50ppm (See P/N guide for other options) FREQUENCY STABILITY ±10ppm ~ ±50ppm (See P/N guide for other options) STD: 0°C ~ 70°C (See P/N guide for other options) OPERATING TEMPERATURE RANGE -55°C ~ 125°C STORAGE TEMPERATURE RANGE STD: 18pF (See P/N guide for other options) LOAD CAPACITANCE 3.5pF max. SHUNT CAPACITANCE 500MΩ min. @ 100VDC ± 15VDC INSULATION RESISTANCE 300µW max. DRIVE LEVEL ±2.0ppm / 1st year max. AGING @ 25°C ± 3°C Fundamental: Fundamental: Fundamental: Fundamental: 3rd Overtone: EQUIVALENT SERIES RESISTANCE 8.000MHz ~ 9.000MHz: 800Ω max. 10.001MHz ~ 11.000MHz: 120Ω max. 11.001MHz ~ 12.000MHz: 120Ω max. 12.001MHz ~ 13.000MHz: 100Ω max. 13.001MHz ~ 16.000MHz: 80Ω max. 16.001MHz ~ 21.000MHz: 70Ω max. 21.001MHz ~ 30.000MHz: 60Ω max. 30.001MHz ~ 60.000MHz: 50Ω max. 60.001MHz ~ 156.250MHz: 100Ω max. AT cut, Fundamental or 3rd Overtone OPERATION MODE ■ PACKAGE DIMENSIONS ■ SOLDER PATTERN Package 1* 4 ■ REFLOW PROFILE Package 2* 3 4 1.4 3 Soldering 1.20 170 ±5°C 2.50 2.50 150 ±5°C Marking Marking Pre-heating 1.60 1 2 3.20
