LFXTAL025159REEL

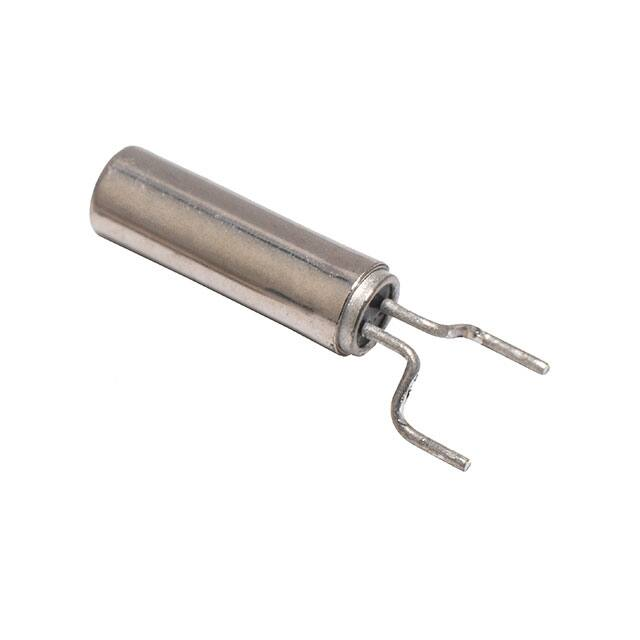

Quartz Crystal Specification Part No. + Packaging: LFXTAL025159Reel Customer Part: Description 2 x 6mm watch crystal with pre-formed legs to make a SMD package. Model CFPX-56 Model Issue number 6 Frequency Parameters Frequency 32.7680kHz Frequency Tolerance Tolerance Condition Overtone Order Ageing ±20.00ppm @ 25°C Fundamental ±5ppm max in 1st year Electrical Parameters 12.50pF 1.6pF typical Load Capacitance (CL) Shunt Capacitance (C0) Outline (mm) Drive Level ESR 1.0µW max 40.00kΩ max Motional Capacitance (C1): 3.2fF typ Frequency Stability Coefficient: -0.034ppm/°C² ±0.006ppm/°C² Environmental Parameters Storage Temperature Range: -40 to 85°C High Temperature Storage: 85°C for 24hrs. Drop: 75cm drop (3 times) onto hard wooden board. Manufacturing Details Suitable for reflow soldering at 245°C max for 10sec max x 1 cycle. Note: Do not solder the body of the device to any PCB pads. Use other bonding methods such as adhesive, sealant, sticky-pads. RoHS Terminations SnAgCu RoHS Reflow Temp 245°C for 10secs max Recommended Solder Pad Layout Compliance RoHS Status (2015/863/EU) REACh Status MSL Rating (JDEC-STD-033): Compliant Compliant Not Applicable Packaging Details Pack Style: Reel Pack Size: 3,000 Tape & reel in accordance with EIA-481-D Alternative packing option available Sales Office Contact Details: UK: +44 (0)1460 270200 France: 0800 901 383 Germany: 0800 1808 443 USA: +1.760.318.2824 Printed on 7 Dec 21 14:35 using Part Data Sheet V1.0018 Email: info@iqdfrequencyproducts.com Web: www.iqdfrequencyproducts.com Page 1 of 2 Quartz Crystal Specification Part No. + Packaging: LFXTAL025159Reel Customer Part: Typical Frequency Stability Characteristics Reflow Temperature Profile Sales Office Contact Details: UK: +44 (0)1460 270200 France: 0800 901 383 Germany: 0800 1808 443 USA: +1.760.318.2824 Printed on 7 Dec 21 14:35 using Part Data Sheet V1.0018 Email: info@iqdfrequencyproducts.com Web: www.iqdfrequencyproducts.com Page 2 of 2
