8Y48072007

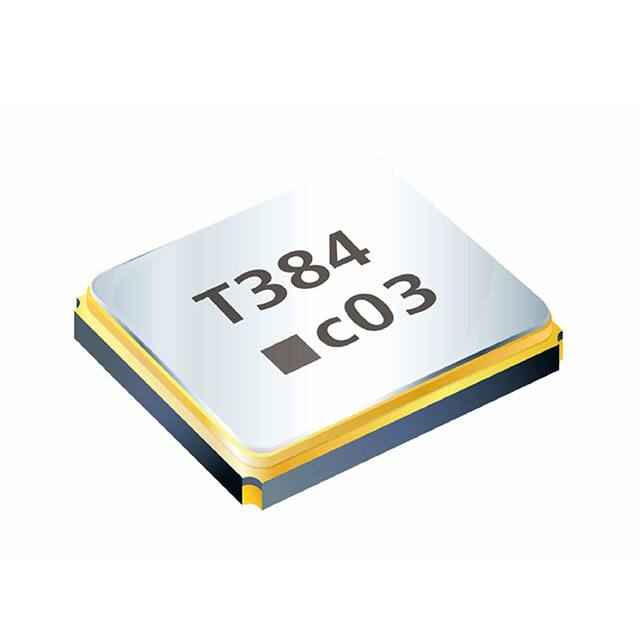

8Y MHz Crystal Features Applications Frequency range : 16MHz to 66MHz Ceramic SMD package Seam sealing External dimensions (mm) L : 2.0 x W : 1.6 x H : 0.5 RoHS compliant & Pb free Bluetooth, Wireless LAN Microprocessor Mobile phone, Computer, Modem Audio, Video Consumer products Electrical Characteristics Item 8Y Frequency Range F0 16MHz ~ 66MHz Frequency Tolerance Ftol ±30ppm, ±20ppm, ±10ppm Frequency Stability over Operating Temperature Range (refer to 25°C) Operating Temperature Range Fstab TOTR ±30 ppm ±20 ppm ±10 ppm ±10 ppm ±30 ppm ±20 ppm ±60 ppm -20°C ~ +70°C -40°C ~ +85°C -40°C ~ +125°C Shunt Capacitance C0 Drive Level DL Load Capacitance CL 6pF, 8pF, 10pF, 12pF Aging Faging ±3 ppm Max. Storage Temperature Range TSTR -55°C ~ +125°C Conditions at 25°C -20°C ~ +70°C -30°C ~ +85°C -40°C ~ +85°C -40°C ~ +125°C 3pF Max. 1 ~ 200μW (50μW Typ.) at 25°C ± 3°C,first year Motional Resistance (ESR) Fundamental 16 ~ 19.2 MHz 19.2 ~ 30 MHz 30 ~ 66 MHz Rev. 1.04 200Ω Max. 100Ω Max. 80Ω Max. Page 1 www.txccrystal.com 8Y MHz Crystal Dimensions Ordering Information 8Y - 24.000M A H E - T Frequency in Hz Packaging Method T Please contact us for available frequencies Tape & Reel Load Capacitance Frequency Tolerance (at 25°C) A D E B V Q E ± 30 ppm ± 20 ppm ± 10 ppm 6 pF 8 pF 10 pF 12 pF Frequency Stability (over Temp.) A D E T H I K Rev. 1.04 ± 30 ppm ± 20 ppm ± 10 ppm ± 10 ppm ± 30 ppm ± 20 ppm ± 60 ppm ( -20°C ~ +70°C ) ( -20°C ~ +70°C ) ( -20°C ~ +70°C ) ( -30°C ~ +85°C ) ( -40°C ~ +85°C ) ( -40°C ~ +85°C ) ( -40°C ~ +125°C ) Page 2 www.txccrystal.com 8Y MHz Crystal Packing (Unit: mm) Reflow Profile Solder melting point : 220°C ± 10°C, 60 sec. Min. Peak temperature : 260°C ± 10°C, 10 sec. Min. (°C) 10 sec 260 220 180 150 120 sec Rev. 1.04 60 sec Page 3 Time (sec) www.txccrystal.com
