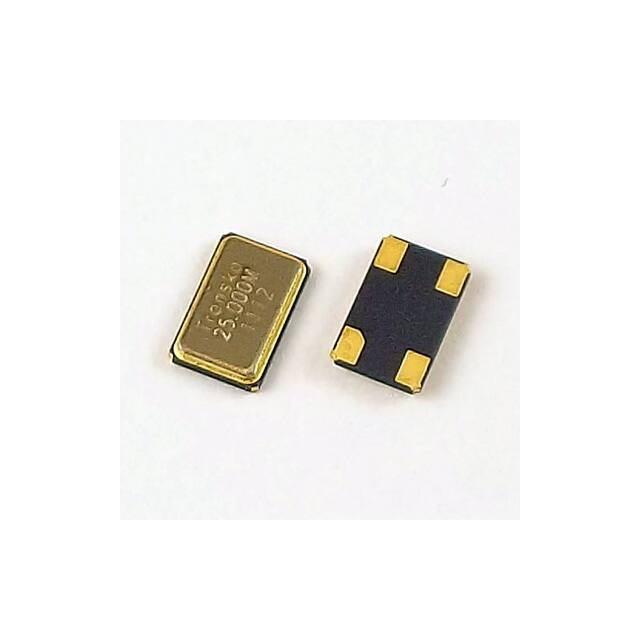

CS53A-1401-25.000M

CS53A-1401-25.000M SPEC NUMBER: 1401 FREQUENCY: 25.000000MHz DATE: January 3, 2014 RoHS Compliant MODEL CS53A FREQUENCY RANGE 25.000000MHz FREQUENCY TOLERANCE @ 25°C ±30ppm max. FREQUENCY STABILITY ±30ppm max. OPERATING TEMP. –40°C to 85°C SHUNT CAPACITANCE 7.0pF max. LOAD CAPACITANCE 18pF DRIVE LEVEL 500uW max. AGING ±3ppm typical, ±5ppm max. / first year MODE Fundamental PACKAGE SIZE 5.0 x 3.2 x 1.8mm ESR 15ohms typical, 30 ohms max. 3.20 SOLDER PATTERN Marking 2.20 5.00 3.70 0.80 Unit :mm 2.30 2 4 3 REFLOW PROFILE 1.40 1 Soldering Pre-heating Pin Configuration 1.20 255 ±5°C Unit : mm 1 Xtal 2 Ground 3 Xtal 4 Ground 150 ±5°C
