WTL8A60385VH

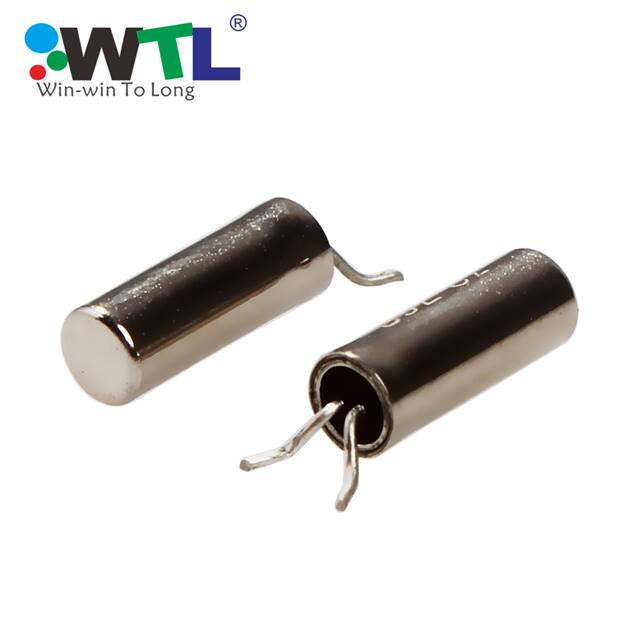

Tuning Fork Crystal, Series WX8 Φ2 x 6mm SMD Crystal Feature Small size Φ2 x 6mm Wide frequency range: 30kHz~350kHz High reliability and high frequency stability Suited for automatic mounting and reflow soldering Environmentally friendly products, RoHS certified Electrical Specifications Item Specifications Frequency Range (KHz) 30~40 40~60 60~70 Load Capacitance (CL) 6~12.5pF,or specify Frequency Tolerance( at 25°C ) ±5ppm ~ ±100ppm Operating Temperature Range -20~+70°C or specify Turnover Temperature 25 ± 5°C Frequency Temperature Curve (-0.035±10%) x 10 /°C -6 Equivalent Series Resistance (ESR) Max. 40kΩ 30kΩ Driver Level (Typical) 0.1µW Driver Level(Max) 1µW Shunt Capacitance ( C 0 ) 1.45 pF Typ. 70~200 200~350 22kΩ 20kΩ 2 25kΩ Insulation Resistance More than 500Mohms at DC100V Storage Temperature Range -40°C~+85°C Aging @25 °C 1st Year (Max) ±5 ppm/year, Dimension(mm) (1) 1.7 ± 0.3 2.0 ± 0.1 2.54 ± 0.3 Φ0.25 6.0 ± 0.2 (1) 1.7 ± 0.3 2.5 2.7 ± 0.3 1.0 1.5 2.0 1.0 2.5 4.7 http://www.wtlcrystals.com Email:wtl@wtlcrystals.com Tel:86-755-82677582 38
