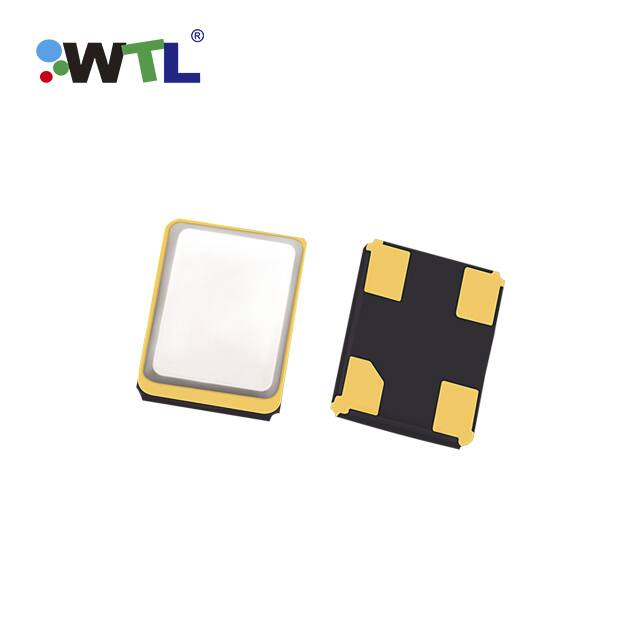

Quartz Crystal, Series TX8 SMD Seam Sealed Crystals 1.6×1.2×0.35 mm Feature Size 1.6 × 1.2 , Ultra thin , thickness 0.35mm High precision and high frequency stability Designed for automatic mounting and reflow soldering RoHS Compliant /Pb Free Electrical Specifications Item Specifications Frequency Range(MHZ) 20~24 Mode AT/Fundamental 24~30 30~66 Load Capacitance (CL) 8pF, 10pF, 12pF or Specify Frequency Tolerance( at 25°C ) ±10ppm~±30ppm or specify Operating Temperature Range -20~+70°C or Specify Frequency Stability Over Operating Temperature Range ±10ppm ~ ±30ppm or specify Equivalent Series Resistance (ESR) max. 150Ω Storage Temperature Range -55~+125°C Shunt Capacitance( C 0 ) 3pF Max 100Ω Drive Level (Typical) 1 ~ 200μW (50μW typical) Aging @25 °C 1st Year (Max) ±3 ppm/year 80Ω Dimension(mm) 1.60±0.10 NC 3 4 3 1 2 1.20±0.10 4 Τοp View 2 0.35±0.05 1 0.75 0.50 1 GND Τοp View Crystal Connection 0.30 0.75 0.60 0.20 0.30 0.60 2 4 3 Βοttom View http://www.wtlcrystals.com Top View Suggested Layout Email:wtl@wtlcrystals.com Tel:86-755-82677582 02
