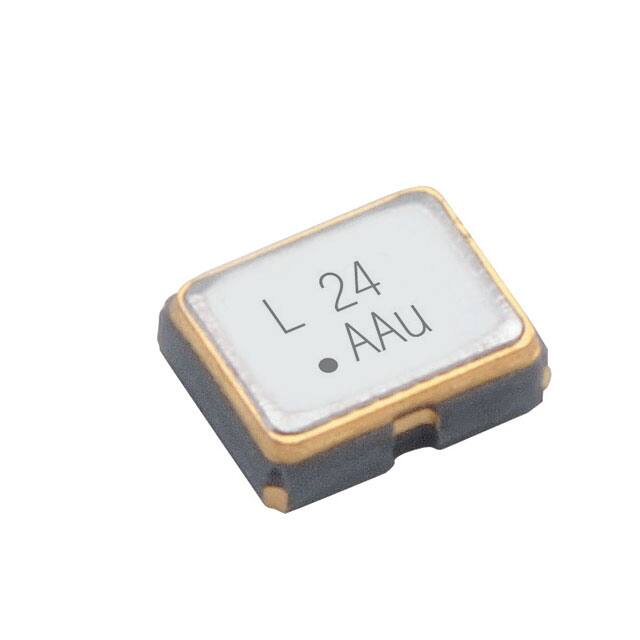

S12510T-25.000-X1-R

RoHS Compliant Pb - Lead Free Ltr Revisions Date Appr Electrical Specifications: Frequency Range Temperature Stability Aging per Year Standard Extended Operating Temperature Range Storage Temperature Range Supply Voltage Input Current Output Voltage Output Symmetry (Duty Cycle) Output Load Output Level Phase Jitter (12 KHz to 20 MHz) Rise and Fall Time Standby Function Start Up Time 4.000 to 10.000 MHz 10.100 to 20.000 MHz 20.100 to 32.000 MHz 32.100 to 50.000 MHz Logic High (Voh) Logic Low (Vol) Standard 4.000 to 50.000 MHz ±100 ±50 PPM Max ±25 ±3 -10 to +70 -40 to +85 ºC -55 to +125 +1.8 ± 5% +2.5 ± 5% +3.3 ± 10% Vdd 3 4 5 4 5 6 mA Max 5 6 7 6 7 8 90% Vdd Min 10% Vdd Max 40 to 60 % 15 pF CMOS 1 ps Max RMS 6 ns Max Tri-State 10 ms Max Temperature stability is Inclusive of all conditions: Calibration Tolerance at +25°C, frequency stability over the operating temperature range, supply voltage, supply voltage change, output load changes, shock, vilbration, and 1st year aging at +25°C. Specification Title: 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC All dimensions are millimeters. CAD: TCR EG Review: JL Appr: Page: 1/4 Date: Oct. 29, 2013 Clock Oscillator Ultra Miniature 2.0 x 1.6 millimeter Surface Mount General Product Specification Part Number: S1 Series www.aker-usa.com Mechanical Outline: Pin1 INH High or Open Low Pin 3 Output Operating High Impedance Package is Seam Sealed Ceramic-Metal. Dimensions are millimeters. Page: 2/4 Date: Oct. 29, 2013 P/N: www.aker-usa.com S1 Series Carrier Tape Dimensions: Dimensions are millimeters. Solder Reflow Characteristics: Page: 3/4 Date: Oct. 29, 2013 P/N: www.aker-usa.com S1 Series How to build a Part Number: Series Package S 1 Parameter 2.0 x 1.6 mm Supply Voltage 33 25 18 +3.3 Vdd ± 10% +2.5 Vdd ± 5% +1.8 Vdd ± 5% Temperature Stability 10 05 025 ±100 PPM ±50 PPM ±25 PPM See Notes 40 to 60% Duty Cycle Frequency 4.000 to 50.000 MHz - Temperature Range See Notes X -10 to +70 ºC -40 to +85 ºC - Packaging R Tape and Reel Part Number Example: S12505-18.432-X-R S1: 2.0 x 1.6 mm SMD Package 25: +2.5 Vdd Supply Voltage 05: ±50 PPM Temperature Stability 18.432 MHz Nominal Frequency X: -40 to + 85° C Extended Temperature Range R: Tape and Reel Packaging Notes: 1- Standard Duty Cycle and Temperature Range do not need to be included in Part Number description. 2- Product is shipped in Tape and Reel configuration. Each reel contains 1000 pieces. 3- Specification subject to change without notice. Page: 4/4 Date: Oct. 29, 2013 P/N: www.aker-usa.com S1 Series
