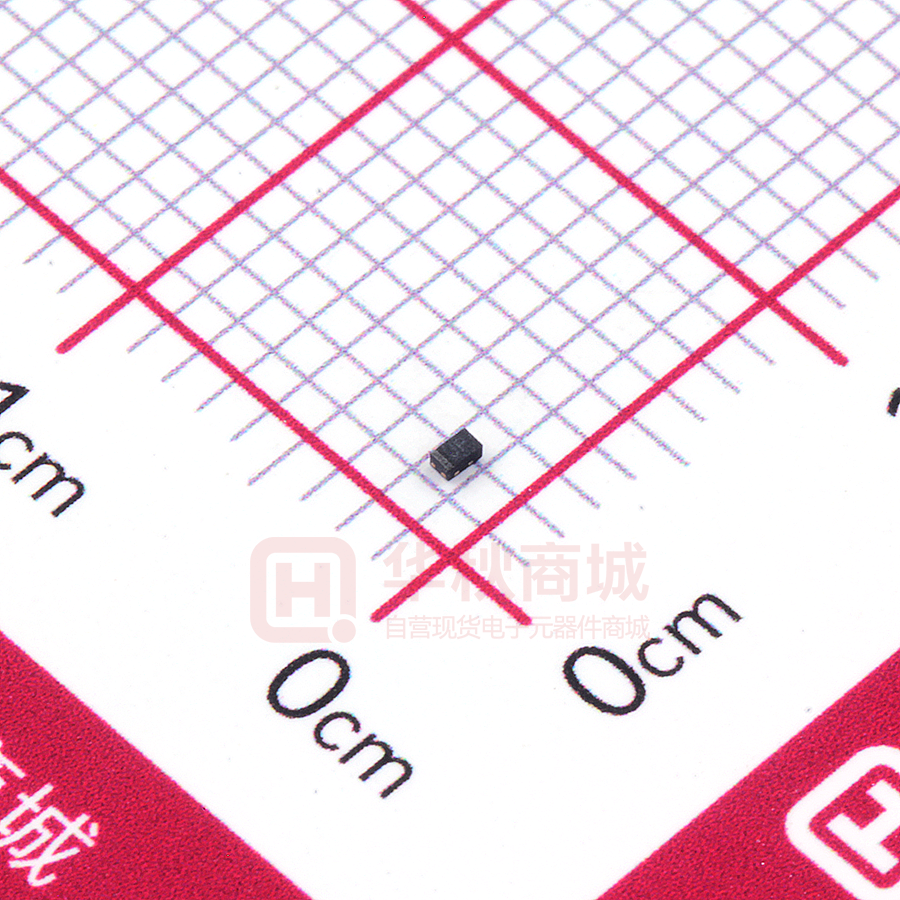

PJM01P20KDC
P-Channel Enhancement Mode Power MOSFET
Features
DFN1x0.6-3L
⚫ Low gate charge and RDS(ON)
⚫ ESD protected(HBM) up to 2KV
3.D
⚫ VDS= -20V,ID= -0.65A
RDS(on)< 850mΩ @VGS= -4.5V
1.G
2.S
1. Gate
2.Source
3.Drain
Marking Code: JP
Applications
⚫ Load switch and in PWM applications
Schematic Diagram
⚫ Power management
3.Drain
1.Gate
2.Source
Absolute Maximum Ratings
Ratings at 25℃ ambient temperature unless otherwise specified.
Parameter
Symbol
Value
Unit
Drain-Source Voltage
-VDS
20
V
Gate-Source Voltage
-VGS
±12
V
Drain Current-Continuous
-ID
0.65
A
Drain Current-Pulsed Note1
-IDM
2
A
Maximum Power Dissipation
PD
0.35
W
Junction Temperature
TJ
150
°C
TSTG
-55 to +150
°C
RθJA
357
°C/W
Storage Temperature Range
Thermal Characteristics
Thermal Resistance,Junction-to-Ambient Note2
www.pingjingsemi.com
Revision:2.0 Jun-2022
1/5
PJM01P20KDC
P-Channel Enhancement Mode Power MOSFET
Electrical Characteristics
(Ta=25℃ unless otherwise specified)
Parameter
Symbol
Test Condition
Min.
Typ.
Max.
Unit
Drain-Source Breakdown Voltage
-V(BR)DSS
VGS=0V,ID=-250μA
20
--
--
V
Zero Gate Voltage Drain Current
-IDSS
VDS=-20V,VGS=0V
--
--
1
μA
Gate-Body Leakage Current
IGSS
VGS=±10V,VDS=0V
--
--
±10
μA
Gate Threshold Voltage Note3
-VGS(th)
VDS=VGS,ID=-250μA
0.35
0.62
1.2
V
Drain-Source On-Resistance Note3
RDS(on)
VGS=-4.5V,ID=-0.5A
--
580
850
mΩ
VGS=-2.5V,ID=-0.3A
--
855
1200
mΩ
VDS=-5V,ID=-0.3A
--
2
--
S
--
71
--
pF
--
20
--
pF
Static Characteristics
Forward Transconductance Note3
gFS
Dynamic Characteristics
Input Capacitance
Ciss
Output Capacitance
Coss
Reverse Transfer Capacitance
Crss
--
15
--
pF
Turn-on Delay Time
td(on)
--
4
--
nS
Turn-on Rise Time
tr
VDD=-10V, RL=2.5Ω,
--
19
--
nS
Turn-off Delay Time
td(off)
VGS=-4.5V,RGEN=3Ω
--
16
--
nS
--
25
--
nS
--
1.24
--
nC
--
0.37
--
nC
--
0.27
--
nC
--
--
1.2
V
--
--
0.65
A
VDS=-10V,VGS=0V,f=1MHz
Switching Characteristics
Turn-off Fall Time
tf
Total Gate Charge
Qg
Gate-Source Charge
Qgs
Gate-Drain Charge
Qgd
VDS=-10V,ID=-0.5A,
VGS=-4.5V
Source-Drain Diode Characteristics
Diode Forward Voltage Note3
-VSD
Diode Forward Current Note2
-IS
VGS=0V,IS=-0.65A
Note: 1. Repetitive Rating: Pulse width limited by maximum junction temperature.
2. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch.
3. Pulse Test: Pulse width≤300μs, duty cycle≤2%.
www.pingjingsemi.com
Revision:2.0 Jun-2022
2/5
PJM01P20KDC
P-Channel Enhancement Mode Power MOSFET
Typical Characteristic Curves
4.0
4.0
VDS=-3.0V
-4.5V
3.0
-ID Drain Current (A)
-ID Drain Current (A)
-5.0V
-3.0V
-2.5V
2.0
-2.0V
1.0
3.0
2.0
Ta=125℃
Ta=25℃
1.0
VGS=-1.5V
0.0
0.0
0.5
1.0
1.5
2.0
0.0
0.0
2.5
0.5
Normalized On-Resistance
RDS(on) On-Resistance (Ω)
2.0
1.5
VGS=-2.5V
1.0
VGS=-4.5V
0.5
0.3
0.6
0.9
1.2
4.0
1.2
VGS=-4.5V
1.0
0
25
50
75
100
125
150
12.5
15
TJ Junction Temperature (℃)
140
120
5.0
C Capacitance (pF)
-VGS Gate-to-Source Voltage (V)
3.5
3.0
VGS=-2.5V
0.8
1.5
VDS=-10V
4.0
3.0
2.0
1.0
0.0
0.0
2.5
1.4
-ID Drain Current (A)
6.0
2.0
1.6
Ta=25℃
Pulsed
0.0
0.0
1.5
-VGS Gate-to-Source Voltage (V)
-VDS Drain-Source Voltage (V)
2.5
1.0
100
60
40
20
0.3
0.6
0.9
Qg Gate Charge (nC)
www.pingjingsemi.com
Revision:2.0 Jun-2022
1.2
1.5
Ciss
80
0
0.0
Crss
2.5
Coss
5.0
7.5
10
-VDS Drain-Source Voltage (V)
3/5
PJM01P20KDC
P-Channel Enhancement Mode Power MOSFET
10
-ID Drain Current (A)
10μS
1
RDS(on) Limited
100μS
1mS
DC
0.1
10mS
100mS
TJ(Max)=150℃
Ta=25℃
Single
0.01
0.01
0.1
1
1S
10
100
-VDS Drain-Source Voltage (V)
www.pingjingsemi.com
Revision:2.0 Jun-2022
4/5
PJM01P20KDC
P-Channel Enhancement Mode Power MOSFET
Package Outline
DFN1x0.6-3L-0009
Dimensions in mm
Ordering Information
Device
Package
PJM01P20KDC
DFN1x0.6-3L
www.pingjingsemi.com
Revision:2.0 Jun-2022
Shipping
10,000PCS/Reel&7inches
5/5
