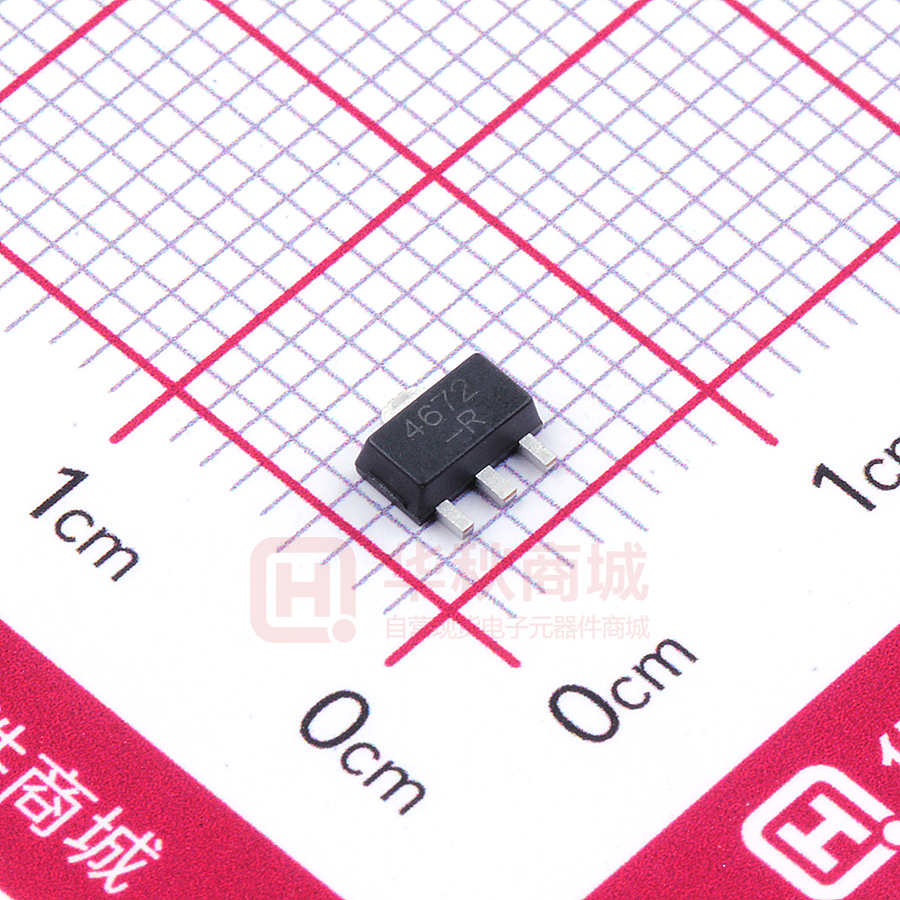

2SC4672SQ NPN Transistor Features SOT-89 ⚫ Low saturation voltage ⚫ Excellent hFE characteristics Equivalent Circuit 2.Collector 1.Base 2.Collector 3. Emitter Marking Code : 1.Base 4672 -X 3.. Emitter X: P/Q/R Absolute Maximum Ratings Ratings at 25℃ ambient temperature unless otherwise specified. Parameter Symbol Value Unit Collector Base Voltage VCBO 60 V Collector Emitter Voltage VCEO 50 V Emitter Base Voltage VEBO 6 V Collector Current IC 2 A Maximum Power Dissipation PD 500 mW Junction Temperature TJ 150 ℃ TSTG -55 to +150 ℃ Symbol Value Unit RθJA 250 ℃/W Storage Temperature Range Thermal Characteristics Parameter Maximum Junction-to-Ambient www.pingjingsemi.com Revison：3.0 Feb-2022 1/7 2SC4672SQ NPN Transistor Electrical Characteristics (TA=25℃) Parameter Symbol Min. Typ. Max. Unit 82 -- 180 120 -- 270 180 -- 390 ICBO -- -- 0.1 μA IEBO -- -- 0.1 μA V(BR)CBO 60 -- -- V V(BR)CEO 50 -- -- V V(BR)EBO 6 -- -- V VCE(sat) -- -- 0.35 V FT -- 210 -- MHz Cob -- 25 -- pF DC Current Gain at VCE = 2 V, IC = 500 mA Current Gain Group P Q HFE R Collector Base Cutoff Current at VCB = 60V Emitter Base Cutoff Current at VEB = 5 V Collector Base Breakdown Voltage at IC = 50 μA Collector Emitter Breakdown Voltage at IC = 1 mA Emitter Base Breakdown Voltage at IE = 50 μA Collector Emitter Saturation Voltage at IC = 1 A, IB = 50 mA Transition Frequency at VCE = 2 V, IC = 0.5 A, f = 100 MHz Output Capacitance at VCB = 10 V, IE = 0, f = 1 MHz www.pingjingsemi.com Revison：3.0 Feb-2022 -- 2/7 2SC4672SQ NPN Transistor Typical Characteristic Curves www.pingjingsemi.com Revison：3.0 Feb-2022 3/7 2SC4672SQ NPN Transistor Package Outline SOT-89 Dimensions in mm Ordering Information Device Package 2SC4672SQ SOT-89 www.pingjingsemi.com Revison：3.0 Feb-2022 Shipping 1,000PCS/Reel&7inches 3,000PCS/Reel&13inches 4/7 2SC4672SQ NPN Transistor Conditions of Soldering and Storage  Recommended condition of reflow soldering Recommended peak temperature is over 245 OC. If peak temperature is below 245 OC, you may adjust the following parameters:  Time length of peak temperature (longer)  Time length of soldering (longer)  Thickness of solder paste (thicker)  Conditions of hand soldering  Temperature: 370 OC  Time: 3s max.  Times: one time   Storage conditions Temperature 5 to 40 OC  Humidity 30 to 80% RH  Recommended period One year after manufacturing www.pingjingsemi.com Revison：3.0 Feb-2022 5/7 2SC4672SQ NPN Transistor Package Specifications  The method of packaging (1,000PCS/Reel&7inches) Cover Tape 1,000 pcs per reel SOT-89 Carrier Tape 8,000 pcs per box 8 reels per box 32,000 pcs per carton 4 boxes per carton  Embossed tape and reel data D A T1 E B G F Reel (7'') www.pingjingsemi.com Revison：3.0 Feb-2022 symbol Value(unit:mm) A Φ179±1 B 60.5±0.2 C 15.3±0.3 D 12.5~13.7 E Φ13.5±0.2 F Φ10.0±0.2 G 2.7±0.2 T1 1.0±0.2 C 6/7 2SC4672SQ NPN Transistor Package Specifications  The method of packaging (3,000PCS/Reel&13inches) 3,000 pcs per reel SOT-89 9,000 pcs per box 3 reels per box 36,000 pcs per carton 4 boxes per carton  Embossed tape and reel data B A T E D F Reel (13'') www.pingjingsemi.com Revison：3.0 Feb-2022 symbol Value(unit:mm) A Φ330±1 B 12.7±0.5 C 16.5±0.3 D Φ99.5±0.5 E Φ13.6±0.3 F 2.8±0.3 T1 1.9±0.2 C 7/7
