PJM03N60SQ

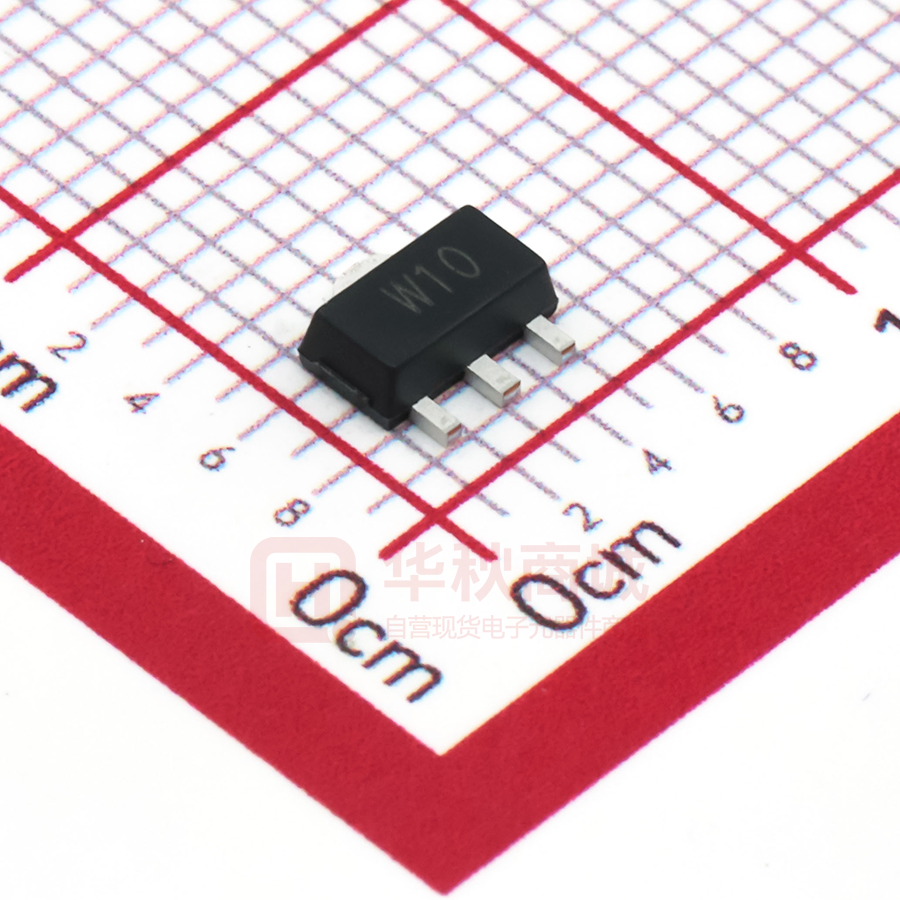

PJM03N60SQ N-Channel Enhancement Mode Power MOSFET SOT-89 Features ⚫ Trench FET Power MOSFET ⚫ VDS= 60V,ID= 3A RDS(on)< 105mΩ @VGS= 10V 1. Gate 2.Drain 3.Source Marking Code: W10 Applications Schematic Diagram ⚫ DC/DC Converter 2.Drain ⚫ Battery Switch 1.Gate 3.Source Absolute Maximum Ratings Ratings at 25℃ ambient temperature unless otherwise specified. Parameter Symbol Value Unit Drain-Source Voltage VDS 60 V Gate-Source Voltage VGS ±20 V Drain Current-Continuous ID 3 A Drain Current-Pulsed Note1 IDM 10 A Maximum Power Dissipation PD 1.5 W Junction Temperature TJ 150 °C TSTG -55 to +150 °C RθJA 83 °C/W Storage Temperature Range Thermal Characteristics Thermal Resistance,Junction-to-Ambient Note2 www.pingjingsemi.com Revision：3.0 Feb-2022 1/7 PJM03N60SQ N-Channel Enhancement Mode Power MOSFET Electrical Characteristics (Ta=25℃ unless otherwise specified) Parameter Symbol Test Condition Min. Typ. Max. Unit Drain-Source Breakdown Voltage V(BR)DSS VGS=0V,ID=250μA 60 -- -- V Zero Gate Voltage Drain Current IDSS VDS=60V,VGS=0V -- -- 1 μA Gate-Body Leakage Current IGSS VGS=±20V,VDS=0V -- -- ±100 nA Gate Threshold Voltage Note3 VGS(th) VDS=VGS,ID=250μA 1.0 -- 2.5 V Drain-Source On-Resistance Note3 RDS(on) VGS=10V,ID=3A -- 70 105 mΩ VGS=4.5V,ID=3A -- 82 125 mΩ VDS=5V,ID=3A 1.4 2.5 -- S -- 250 -- pF -- 26 -- pF Static Characteristics Forward Transconductance Note3 gFS Dynamic Characteristics Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss -- 20 -- pF Turn-on Delay Time td(on) -- 6.5 -- nS Turn-on Rise Time tr VDD=30V,ID=1.5A -- 15.2 -- nS Turn-off Delay Time td(off) VGS=10V,RGEN=1Ω -- 15.2 -- nS VDS=30V,VGS=0V,f=1MHz Switching Characteristics Turn-off Fall Time tf -- 10.3 -- nS Total Gate Charge Qg -- 7 -- nC Gate-Source Charge Qgs -- 1.2 -- nC Gate-Drain Charge Qgd -- 1.5 -- nC -- 0.8 1.2 V -- -- 3 A VDS=30V,ID=3A, VGS=4.5V Source-Drain Diode Characteristics Diode Forward Voltage Note3 VSD Diode Forward Current Note2 IS VGS=0V,IS=3A Note: 1. Repetitive Rating: Pulse width limited by maximum junction temperature. 2. Surface Mounted on FR4 Board, t ≤ 10 sec. 3. Pulse Test: Pulse width≤300μs, duty cycle≤0.5%. www.pingjingsemi.com Revision：3.0 Feb-2022 2/7 PJM03N60SQ N-Channel Enhancement Mode Power MOSFET Typical Characteristic Curves www.pingjingsemi.com Revision：3.0 Feb-2022 3/7 PJM03N60SQ N-Channel Enhancement Mode Power MOSFET Package Outline SOT-89 Dimensions in mm Ordering Information Device Package PJM03N60SQ SOT-89 www.pingjingsemi.com Revision：3.0 Feb-2022 Shipping 1,000PCS/Reel&7inches 3,000PCS/Reel&13inches 4/7 PJM03N60SQ N-Channel Enhancement Mode Power MOSFET Conditions of Soldering and Storage  Recommended condition of reflow soldering Recommended peak temperature is over 245 OC. If peak temperature is below 245 OC, you may adjust the following parameters:  Time length of peak temperature (longer)  Time length of soldering (longer)  Thickness of solder paste (thicker)  Conditions of hand soldering  Temperature: 370 OC  Time: 3s max.  Times: one time   Storage conditions Temperature 5 to 40 OC  Humidity 30 to 80% RH  Recommended period One year after manufacturing www.pingjingsemi.com Revision：3.0 Feb-2022 5/7 PJM03N60SQ N-Channel Enhancement Mode Power MOSFET Package Specifications  The method of packaging (1,000PCS/Reel&7inches) Cover Tape 1,000 pcs per reel SOT-89 Carrier Tape 8,000 pcs per box 8 reels per box 32,000 pcs per carton 4 boxes per carton  Embossed tape and reel data D A T1 E B G F Reel (7'') www.pingjingsemi.com Revision：3.0 Feb-2022 symbol Value(unit:mm) A Φ179±1 B 60.5±0.2 C 15.3±0.3 D 12.5~13.7 E Φ13.5±0.2 F Φ10.0±0.2 G 2.7±0.2 T1 1.0±0.2 C 6/7 PJM03N60SQ N-Channel Enhancement Mode Power MOSFET Package Specifications  The method of packaging (3,000PCS/Reel&13inches) 3,000 pcs per reel SOT-89 9,000 pcs per box 3 reels per box 36,000 pcs per carton 4 boxes per carton  Embossed tape and reel data B A T symbol E D F Reel (13'') www.pingjingsemi.com Revision：3.0 Feb-2022 A B C D E F T Value(unit:mm) φ330±1 12.7±0.5 16.5±0.3 φ99.5±0.5 φ13.6±0.3 2.8±0.3 1.9±0.2 C 7/7
