WTL3T60701VH

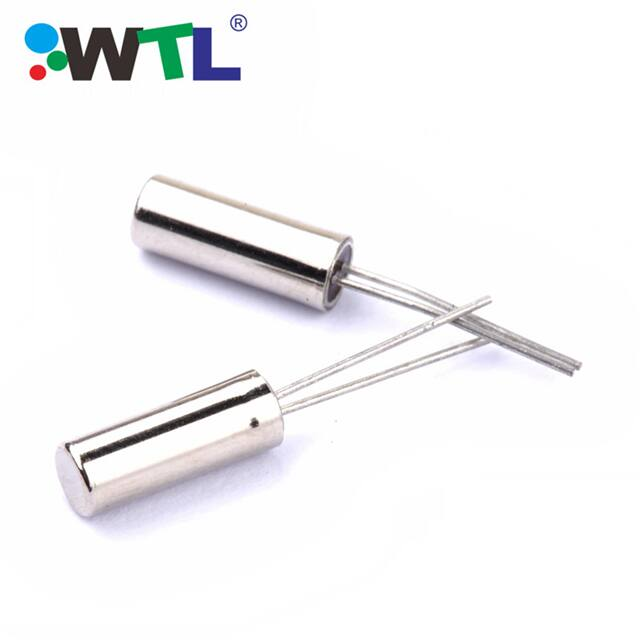

Quartz Crystal, Series WA3 Cylinder Type Crystal Φ3 x 8 mm Feature Small size Φ3 x 8mm Wide frequency range Shock proof Excellent frequency stability Electrical Specifications Item Specifications Frequency Range(MHZ) 4~6 6~10 10~30 Mode AT/Fundamental Load Capacitance (CL) 8pF, 10pF, 12pF or Specify Frequency Tolerance( at 25°C ) ±5ppm ~ ±30ppm or specify Operating Temperature Range -20~+70°C or Specify Frequency Stability Over Operating Temperature Range 30~50 ±10ppm ~ ±30ppm or specify Equivalent Series Resistance (ESR) max. 150Ω Storage Temperature Range -55~+125°C Shunt Capacitance( C 0 ) 5.0 pF Max 100Ω 80Ω Drive Level (Typical) 1 ~ 100 μW (10μW typical) Aging @25 °C 1st Year (Max) ±5 ppm/year 60Ω 0.8 ± 0.2 ɸ 0.35 ± 0.05 ɸ 3.0 ± 0.1 Dimension(mm) 19 4.0 ± 0.4 3.0 ± 0.1 0.8 8.0 ± 0.2 0.4 ± 0.3 8.0 Min 8.0 ± 0.2 1.0 2.7 ± 0.3 27 http://www.wtlcrystals.com Email:wtl@wtlcrystals.com Tel:86-755-82677582
