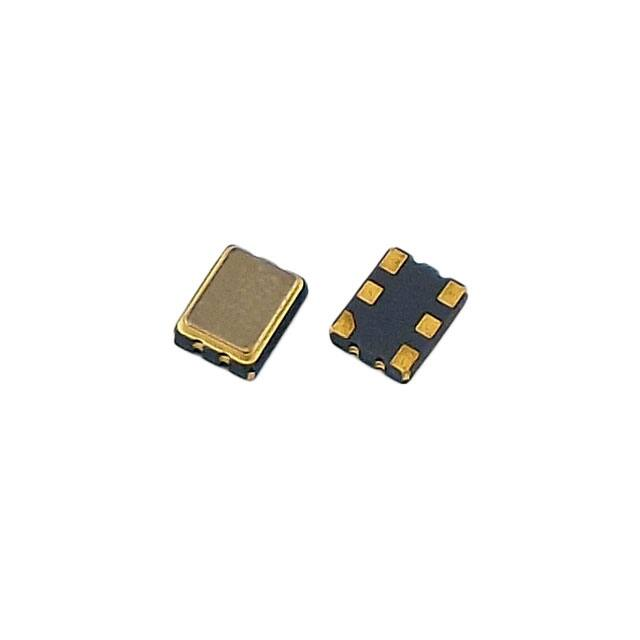

THS32-H15CQ28ST-40.000M

THS32 RoHS Compliant OSCILLATOR (3.2 x 2.5 x 1.1mm) FEATURES:  HIGH STABILITY OVER EXTENDED TEMPERATURE RANGE  WIDE FREQUENCY RANGE ■ SPECIFICATION FREQUENCY RANGE FREQUENCY STABILITY OPERATING TEMPERATURE RANGE STORAGE TEMPERATURE RANGE SUPPLY VOLTAGE ± 5% SUPPLY CURRENT (Pin#1 = Open or VIH) LOGIC FAMILY LOAD LEVEL LOGIC ‘1’ (VOH) OUTPUT LEVEL LOGIC ‘0’ (VOL) SYMMETRY(DUTY CYCLE) RISE AND FALL TIME (Tr/Tf) START-UP TIME ENABLE (VIH) STAND-BY VOLTAGE DISABLE (VIL) STAND-BY CURRENT (Pin#1 = VIL) ENABLE DELAY TIME DISABLE DELAY TIME AGING @ +25°C ±3°C PHASE JITTER RMS (12kHz ~ 20MHz) PHASE NOISE ■ PACKAGE DIMENSIONS 1 2 1.6 5nS max. 10mS max. VDD - 0.5VDC min. 0.5VDC max. 10µA max. 10mS max. 100nS max. ±3.0ppm / 1st year max. 100fS typ. 500fS max. -130dBc/Hz max. @ 1kHz offset ■ REFLOW PROFILE Soldering 250 ±5°C 170 ±5°C 150 ±5°C * 1.6 1.0 Pre-heating
