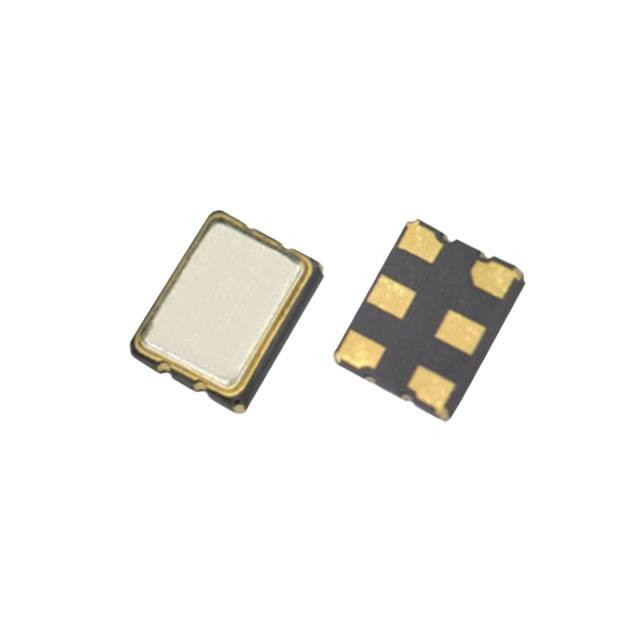

TVM36-H20HM33RC-27.000M

TVM36 RoHS Compliant CMOS MINIATURE SMD VCXO (3.2 x 2.5 x 1.2mm) FEATURES: • WIDE FREQUENCY RANGE • EXCELLENT HEAT RESISTANCE / HIGH STABILITY ■ SPECIFICATION PARAMETER FREQUENCY RANGE FREQUENCY STABILITY OPERATING TEMPERATURE RANGE STORAGE TEMPERATURE RANGE SUPPLY VOLTAGE ±10% SUPPLY CURRENT LOGIC FAMILY LOAD LEVEL LOGIC ‘1’ (VOH) LEVEL LOGIC ‘0’ (VOL) OUTPUT SYMMETRY (DUTY CYCLE) RISE AND FALL TIME (Tr/Tf) START-UP TIME FREQUENCY DEVIATION CONTROL VOLTAGE SLOPE LINEARITY MODULATION BANDWIDTH @-3dB INPUT IMPEDANCE AGING @ 25°C ± 3°C PHASE JITTER RMS MIN. 1.25 ±10* -40 -55 2.97 TYP. MAX. 62 ±100 85 125 3.63 15 3.3 UNIT MHz ppm °C °C V mA *Available in selected operation temp. See P/N guide for other options See P/N guide for other options HCMOS 15pF V V % nS mS ppm V 0.9 x VDD 40 0.1 x VDD 60 5 5 50 ±50 0 1/2 VDD Positive VDD ±10 % kHz MΩ ppm pS 15 10 ■ PACKAGE DIMENSIONS ±3 1.0 ■ SOLDER PATTERN See P/N guide for other options See P/N guide for other options Per year @ 12kHz ~ 5MHz offset ■ REFLOW PROFILE Soldering 0.9 0.8 4 150 ±5°C Pre-heating 1.05 1.7 MARKING
