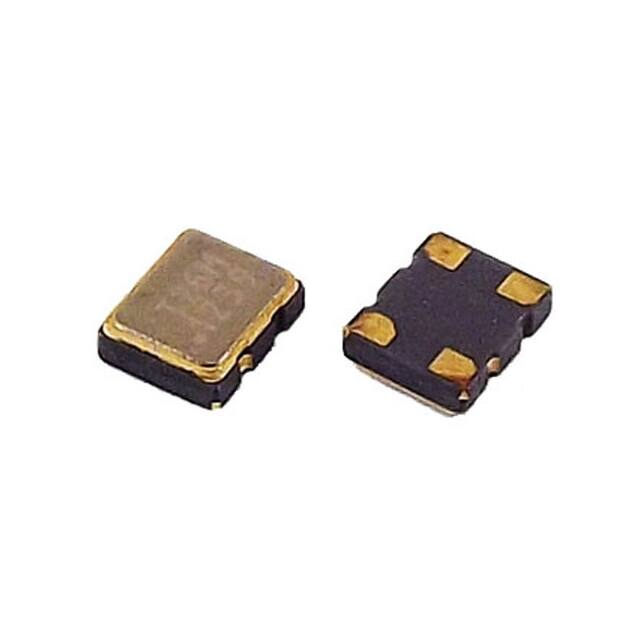

TX8-N05OP-26.000M-TR

TX - N RoHS Compliant TCXO/VCTCXO ULTRA MINIATURE SMD (2.5 x 2.0 x 0.71mm) FEATURES: • LOW VOLTAGE / LOW CURRENT • • APPLICATIONS: • GPS, GPS Module • • REFLOW CAPABLE LOW COST FOR A TIGHT STABILITY TCXO Cellular Phone (CDMA & WCDMA) WiMAX, WLAN ■ SPECIFICATION MIN. PARAMETER FREQUENCY RANGE TYP. UNIT 52 MHz 13 STANDARD FREQUENCIES ±2.0 ppm ±2.5 ppm vs. LOAD ± 10% ±0.2 ppm vs. SUPPLY VOLTAGE ± 5% ±0.2 ppm vs. AGING ±1.0 ppm/year vs. TEMPERATURE RANGE ±0.5 OPERATING TEMPERATURE RANGE -40 85 °C STORAGE TEMPERATURE RANGE -55 125 °C SUPPLY VOLTAGE ±5% 1.8 3.3 V 1.5 mA SUPPLY CURRENT LOGIC FAMILY OUTPUT See P/N guide for other options See P/N guide for other options 10kΩ//10pF LEVEL FREQUENCY DEVIATION 0.8 VP-P ±5.0 ppm 1.8V 0.3 0.9 1.5 V 2.5V, 2.8V 0.4 1.4 2.4 V 3.3V 0.5 1.5 2.5 V 500 VC INPUT IMPEDANCE See P/N guide for other options kΩ Positive SLOPE PHASE NOISE See P/N guide for other options Clipped Sine wave LOAD CONTROL VOLTAGE NOTE 16.367667M, 16.368M, 16.369M, 19.2M, 19.68M, 20M, 26M, 40M FREQUENCY TOLERANCE FREQUENCY STABILITY MAX. 100Hz -115 dBc/Hz 1kHz -135 dBc/Hz 10kHz -148 dBc/Hz @ 19.2MHz Transko Electronics, Inc reserves the right to make changes to the product (s), service (s), and specification (s) described herein without notice. See “Terms of Sale” for details on our website. Transko Cal Electronics, Crystal Comclok. Inc. 3981 E. 3981 Miraloma E. Miraloma Ave. CA Ave. 92806 Anaheim, USA CA 92806 USA Tel: 714-528-8000 714-528-8080 Fax: 714-528-8017 Website: www.transko.com E-mail: sales@transko.com Rev. Ver. 4:2: 12-11-2020 Sep. 2013 TX - N ■ PACKAGE DIMENSIONS RoHS Compliant ■ SOLDER PATTERN 0.8 TOP 2.0±0.15 Marking 0.9 1.45 2.5±0.15 2.05 SIDE 0.71±0.1 Unit : mm ■ REFLOW PROFILE 1.95 Soldering 2 Unit : mm 1.35 BOTTOM 1 0.6 255 ±5°C 170 ±5°C 150 ±5°C Pre-heating Pin Configuration 4 3 1 0.5 N/C or Vc 2 GND 3 Output 4 VDD
