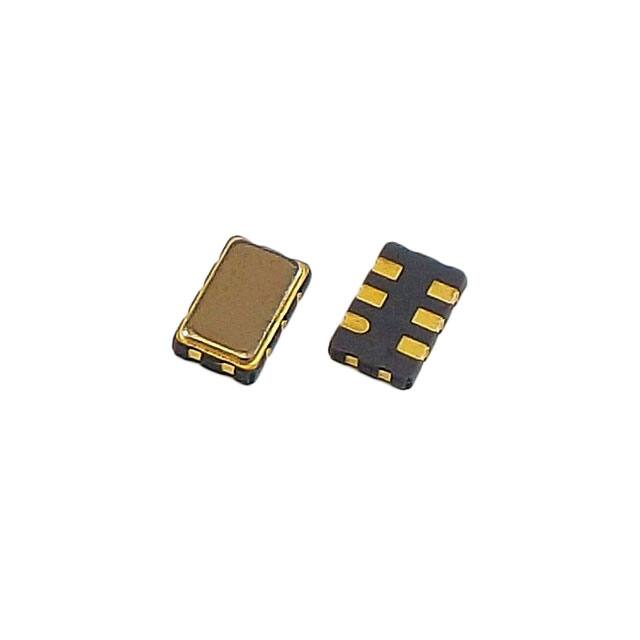

TPSM5-P50HM25ST1-96.000M-TR

TPSM5 RoHS Compliant CERAMIC LVPECL MINIATURE SMD OSCILLATOR (5.0 x 3.2 x 1.3mm) FEATURES:  WIDE FREQUENCY RANGE   LOW JITTER EN/DISABLE PIN AVAILABLE ■ SPECIFICATION FREQUENCY RANGE 0.750MHz ~ 800.000MHz FREQUENCY STABILITY STD: ±50ppm, ±10ppm ~ ±100ppm max. (See P/N guide for other options) OPERATING TEMPERATURE RANGE STD: 0°C ~ 70°C, option: -40°C ~ 85°C (See P/N guide for other options) STORAGE TEMPERATURE RANGE -55°C ~ 125°C SUPPLY VOLTAGE ± 10% SUPPLY CURRENT 2.5VDC 70mA max. LOGIC FAMILY LOAD LEVEL LOGIC ‘1’ (VOH) LEVEL LOGIC ‘0’ (VOL) PEAK TO PEAK OUTPUT 90mA max. LVPECL 50 (into VDD - 2.0VDC) VDD - 1.025VDC min. VDD - 1.620VDC max. 600mV min. 800mV typ. SYMMETRY(DUTY CYCLE) RISE AND FALL TIME (Tr/Tf) START UP TIME STD: 40/60%, Option: 45/55% (See P/N guide for other options) 250pS typ. 1nS max. 5mS max. ENABLE (VIH) STAND-BY VOLTAGE 3.3VDC 0.7 x VDD ≤ VIH ≤ VDD or N/C DISABLE (VIL) VIL ≤ 0.3 x VDD ±3.0ppm / 1st year max. AGING @ +25°C ±3°C PHASE JITTER (12kHz ~ 20MHz) 1.0pS max. ■ PACKAGE DIMENSIONS ■ SOLDER PATTERN ■ REFLOW PROFILE 0.89 6 5 Soldering 1.41 4
