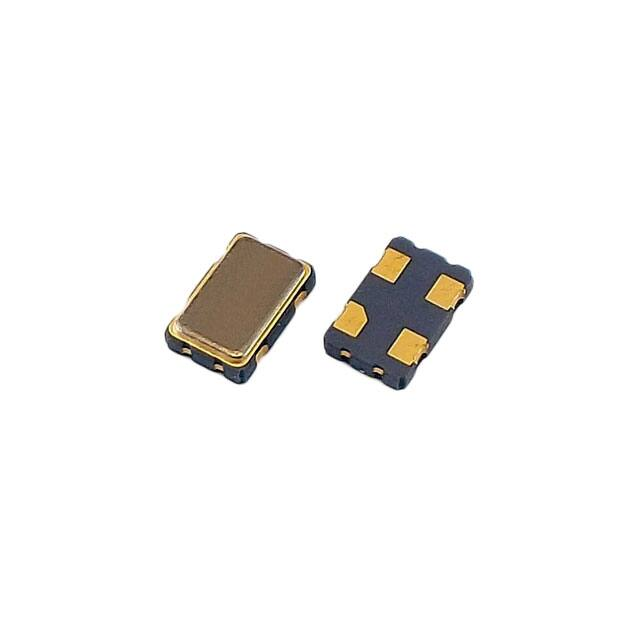

TSM53-H25CQ33ST-2.048154M

TSM53 RoHS Compliant MINIATURE SMD HCMOS/TTL OSCILLATOR (5.0 x 3.2 x 1.3mm) FEATURES:  WIDE FREQUENCY RANGE   LOW VOLTAGE / LOW CURRENT LOW COST ■ SPECIFICATION FREQUENCY RANGE 312kHz ~ 60MHz 25kHz ~ 165MHz FREQUENCY STABILITY STD: 0°C ~ 70°C, Option: -40°C ~ 85°C (See P/N guide for other options) STORAGE TEMPERATURE RANGE -55°C ~ 125°C SUPPLY VOLTAGE ±10% SUPPLY CURRENT 1.0VDC 1.8VDC 2.5~3.3VDC 5.0VDC 4mA max. 25mA max. 40mA max. 35mA max. LOGIC FAMILY HCMOS, TTL, CMOS/TTL LOAD STAND-BY VOLTAGE 25kHz ~ 160MHz ±10ppm ~ ±100ppm OPERATING TEMPERATURE RANGE OUTPUT 25kHz ~ 220MHz 15pF typ. (30pF, 50pF available) LEVEL LOGIC ‘1’ (VOH) HCMOS: 0.9 x VDD min. TTL: 2.4VDC min. LEVEL LOGIC ‘0’ (VOL) HCMOS: 0.1 x VDD max. TTL: 0.4VDC max. SYMMETRY (DUTY CYCLE) 40% / 60% @ 1/2VDD level, Option: 45% / 55% RISE AND FALL TIME (Tr/Tf) 1.0nS typ. , 8.0nS max. START-UP TIME ENABLE (ViH) 10mS max. 0.7 x VDD ≤ VIH ≤ VDD or N/C DISABLE (ViL) VIL ≤ 0.3 x VDD ENABLE / DISABLE DELAY TIME 10mS max. ±3.0ppm / 1st year max. AGING @ 25°C ± 3°C PHASE JITTER RMS (12kHz ~ 20MHz) 1.0pS max. ■ PACKAGE DIMENSIONS ■ SOLDER PATTERN ■ REFLOW PROFILE 2.54 4 3 Soldering 1.20 170 ±5°C 150 ±5°C 3.2 Top 2.20 MARKING Pre-heating 1.50 Unit :mm * 2 1 255 ±5°C
