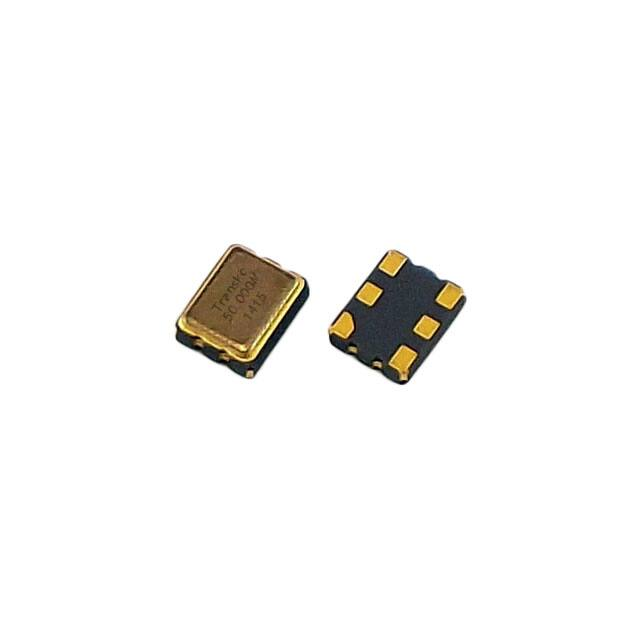

TG32-L50GM33T1-100.000M

TG32 RoHS Compliant MINIATURE CERAMIC SMD OSCILLATOR (3.2 x 2.5 x 1.1mm) FEATURES • Available with output frequency from 10M~1.5GHz • • • High reliability and low aging Available CMOS, LVDS, and LVPECL outputs 3.3V and 2.5V supply options ■ SPECIFICATION PARAMETER MIN. FREQUENCY RANGE MAX. UNIT CMOS 10 250 MHz LVDS 10 1500 MHz 1500 MHz ±100 ppm LVPECL TYP. 10 FREQUENCY STABILITY ±10* OPERATING TEMPERATURE RANGE -40 85 °C STORAGE TEMPERATURE RANGE -55 125 °C SUPPLY VOLTAGE SUPPLY CURRENT LOAD ±50 VDD = 2.5VDC 2.375 2.500 2.625 V VDD = 3.3VDC 2.970 3.300 3.630 V CMOS 20 45 mA 23 45 mA 54 60 mA CMOS 15 pF LVDS 100 Ω Output - Complimentary Output 50 Ω into VDD - 2VDC 0.9 x VDD RISE AND FALL TIME (Tr/Tf) LVDS (VOH) 1.4 STAND-BY VOLTAGE V 1.6 V 0.9 LVPECL (VOH) VDD – 1.03V VDD – 0.60V V LVPECL (VOL) VDD – 1.85V VDD – 1.60V V CMOS 45 55 % LVDS 45 55 % LVPECL 45 1.1 V 55 % CMOS 1.0 3.0 nS LVDS 0.25 1.0 nS LVPECL 0.25 1.0 nS 2.0 3.0 mS ENABLE (VIH) 0.7 x VDD V DISABLE (VIL) ENABLE DELAY TIME DISABLE DELAY TIME AGING 0.1 x VDD LVDS (VOL) START-UP TIME 0.3 x VDD V 100 nS 100 nS per 1year ±3.0 ppm per 10years ±5.0 ppm 1.50 pS PHASE JITTER RMS (VDD = 2.5VDC, 3.3VDC) V CMOS (VOL) SYMMETRY (DUTY CYCLE) * See P/N guide for other options LVDS CMOS (VOH) OUTPUT * See P/N guide for other options LVPECL LVPECL LEVEL NOTE 0.60 @ 25°C ±3°C @ 12kHz ~ 20MHz * Available in selected operating temperature range Transko Electronics, Inc reserves the right to make changes to the product (s), service (s), and specification (s) described herein without notice. See “Terms of Sale” for details on our website. Transko Electronics, Inc. 3981 E. Miraloma Ave. Anaheim, CA 92806 USA Tel: 714-528-8000 Fax: 714-528-8017 Website: www.transko.com E-mail: sales@transko.com Rev 5: 11-17-2021 TG32 RoHS Compliant ■ 27MHz 3.3V Temperature Test Data (-40°C ~ 85°C) ppm 25 20 15 10 5 0 -40 -35 -30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 Series1 5.5 11 14 17 19 20 21 21 2 0 20 19 17 15 14 12 10 8.8 7.9 6.3 5.8 6 6.6 7.6 9.4 13 16 Series2 10 15 18 20 22 23 23 23 2 3 22 20 19 17 15 15 13 10 9.3 8.2 7.6 6.6 7.4 8 9.9 12 16 Series3 1.5 7 11 13 16 17 18 18 1 8 17 16 15 14 12 9.6 9.2 8.1 7.1 6.3 6.1 6.3 7.6 9.3 11 14 18 ■ Typical Phase Noise Frequency 1kHz 10kHz 100kHz 1MHz 156.25MHz -114.70 dBc/Hz -124.11 dBc/Hz -126.23 dBc/Hz -140.45 dBc/Hz 212.5MHz -108.73 dBc/Hz -115.58 dBc/Hz -116.22 dBc/Hz -136.02 dBc/Hz 622.08MHz -100.38 dBc/Hz -106.69 dBc/Hz -106.43 dBc/Hz -126.36 dBc/Hz ■ PACKAGE DIMENSIONS ■ SOLDER PATTERN 0.9 0.8 ■ REFLOW PROFILE 0.9 Soldering 255 ±5°C 170 ±5°C 150 ±5°C TOP MARKING 0.7 2.5 ±0.1 1.8 Pre-heating
