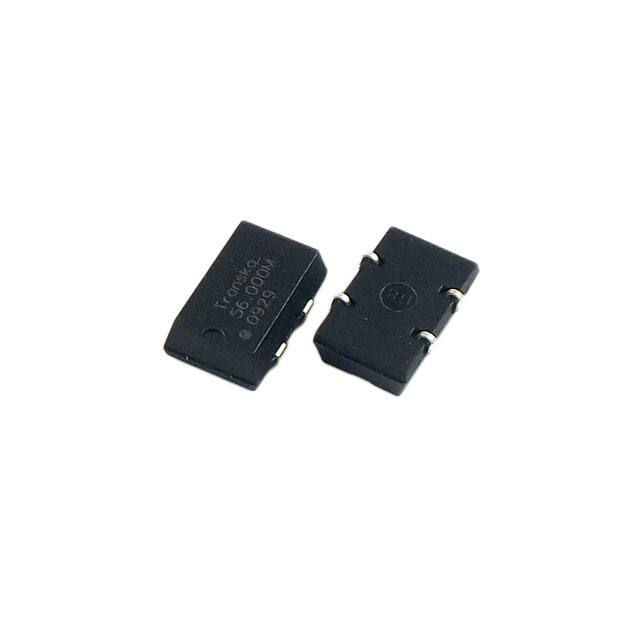

TSP-H00FM50RT-14.7456M

TSP RoHS Compliant PLASTIC MOLDED STANDARD SMD OSCILLATOR (14.0 x 9.8 x 4.7mm) FEATURES • PLASTIC MOLDED SMD OSCILLATOR • • WIDE FREQUENCY RANGE REFLOW CAPABLE / LOW CURRENT ■ SPECIFICATION FREQUENCY RANGE FREQUENCY STABILITY OPERATING TEMPERATURE RANGE STORAGE TEMPERATURE RANGE SUPPLY VOLTAGE ± 10% 1.000MHz ~ 125.000MHz ±10ppm ~ ±100ppm STD: 0°C ~ +70ºC, Option: -40°C ~ +85ºC (See P/N guide for other options) -55°C ~ 125°C 3.3VDC, 5.0VDC SUPPLY CURRENT OUTPUT 45mA max. LOGIC FAMILY LOAD LEVEL LOGIC ‘1’ (VOH) HCMOS: 0.9 x VDD min. TTL: 2.4VDC min. LEVEL LOGIC ‘0’ (VOL) HCMOS: 0.1 x VDD max. TTL: 0.4VDC max. HCMOS, TTL, CMOS/TTL 15pF, 10TTL SYMMETRY (DUTY CYCLE) STD: 40% / 60%, option: 45% / 55% 7nS max.: 1.000MHz ≤ f ≤ 60.000MHz 5nS max.: 60.000MHz < f ≤ 70.000MHz 4nS max.: 70.000MHz < f ≤125.000MHz RISE AND FALL TIME (Tr/Tf) START-UP TIME ENABLE (VIH) STAND-BY VOLTAGE DISABLE (VIL) AGING @ 25°C ± 3°C PHASE JITTER RMS (12kHz ~ 20MHz) 5mS max. 0.7 x VDD ≤ VIH ≤ VDD or N/C VIL ≤ 0.3 x VDD ±3.0ppm / 1st year max. 1pS max. ■ PACKAGE DIMENSIONS ■ SOLDER PATTERN ■ REFLOW PROFILE 5.08 Soldering 255 ±5°C 3.1 0.25 3 1 7.62 *0.01µF to 0.1µF bypass capacitor recommended * Unit :mm 150 ±5°C Pre-heating
