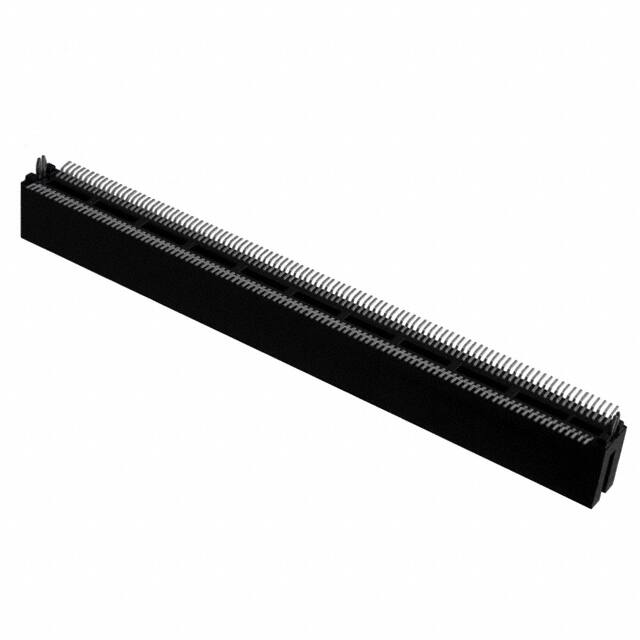

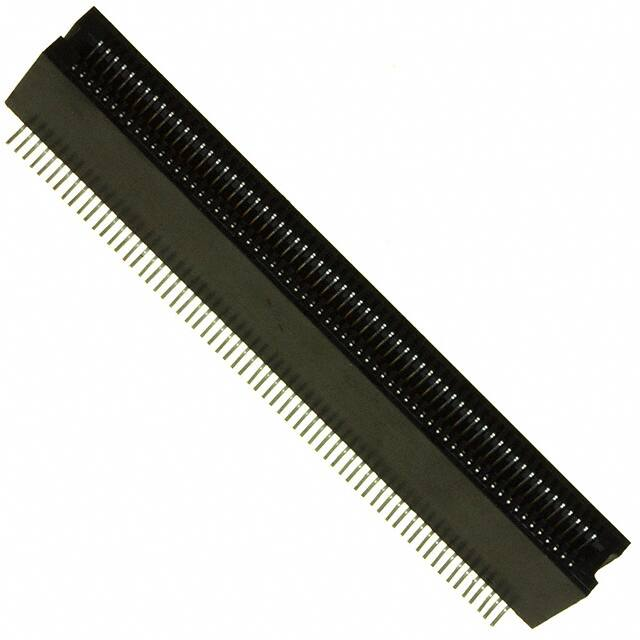

RBB105DHFR

High Density Card Edge .050” [1.27 mm] Contact Centers, .610” [15.49 mm] Insulator Height, Dip Solder/Card Extender/SMT for .031”[0.79 mm], .062”[1.57 mm] or .093”[2.36 mm] Mating PCB High Density Card Edge SPECIFICATIONS • Accommodates .031” ± .006” [0.79 mm ± 0.15 mm], .062” ± .008” [1.57 mm ± 0.20 mm] or .093” ± .008” [2.36 mm ± 0.20 mm] mating PCB • PPS or PA9T insulator • Molded-in key available • High reliability/high cycle hairpin bellow & cantilever contacts • 1 Amp current rating per contact for contacts fully energized • UL Flammability Rating: 94V-0 • Operating Temperature: -65°C up to +200°C TERMINATION TYPE HAIR PIN POST .018” [0.46] X .012” [0.30] L R L POST POST L POST L POST R L R POST CANTILEVER POST SIZE .016” [0.41] SQ. L POST R L POST (P/N CODE) TERMINATION LAYOUT ROW SPACING ('R' DIM) TAIL LENGTH ('L' DIM) (HH) THRU HOLE STRAIGHT figure 1 3X 0.100” [2.54] 0.125” [3.18] 0.160” [4.06] (HF) SURFACE MOUNT figure 3 N/A 0.100” [2.54] (HL) THRU HOLE STRAIGHT figure 4 0.250” [6.35] (HN) THRU HOLE STRAIGHT figure 4 0.100” [2.54] 0.125” [3.18] (P/N CODE) TERMINATION LAYOUT ROW SPACING ('R' DIM) TAIL LENGTH ('L' DIM) (YH) THRU HOLE STRAIGHT figure 1 3X 0.100” [2.54] 0.125” [3.18] R POST 2X Ø .125” [3.18] 'D' OR 'T' MOUNTING A PIN B2 F D PCB LAYOUT RECOMMENDED (HH, YH) FIGURE 2 .050”[1.27] TYP. 60° .200”[5.08] 0.160” [4.06] .062” ±.008”[1.57±0.20] PCB .020” [0.51] A .040” [1.02] PCB LAYOUT, SOLDER END (HR, YR) FIGURE 3 .050” [1.27 ] TYP. .315”[8.00] MIN. .040” [1.02] TYP. MAX. ACCEPTS .062” [1.57] PCB 2X Ø .125”[3.18] 'D' OR 'T' MOUNTING .185”[4.70] MAX. N/A 2X Ø .096” [2.44] 'R' MOUNTING A F D 0.175” [4.45] SURFACE MOUNT PCB LAYOUT (HF, YF) FIGURE 4 PIN 1 (YS) THRU HOLE STRAIGHT figure 4 2X Ø .096” [2.44] 'R' MOUNTING PIN B1 0.100” [2.54] D F A 2X Ø .096”[2.44] 'R' MOUNTING POST L Ø .040” [1.02] MIN. TYP. PIN A2 3X .100” [2.54] ACCEPTS .062” [1.57] PCB (YF) SURFACE MOUNT figure 3 L .050” [1.27] TYP. PIN A1 (HR) CARD EXTENDER figure 2 (YR) CARD EXTENDER figure 2 FIGURE 1 .100” [2.54] TYP. 2X Ø .125”[3.18] 'D' OR 'T' MOUNTING R 0.200” [5.08] 0.140” [3.56] .050”[1.27] TYP. Ø .030”[0.76] MIN. PCB LAYOUT (HL, HN, YS) MOUNTING STYLE Ø .125” [3.18] .134” [3.40] .250” [6.35] #4-40 .250” [6.35] .025” [0.64] BOARD LOCK (R) (with no mounting ears) 20 NO MOUNTING EARS (N) FLUSH MOUNTING (D) FLUSH MOUNTING WITH THREADED INSERT (T) .360” [9.14] .318” [8.08] .128” [3.25] .440” [11.18] .188” [4.77] .062” [1.57] Ø .078” [1.98] STRADDLE MOUNT (Q) www.sullinscorp.com | 760-744-0125 | toll-free 888-774-3100 | fax 760-744-6081 | info@sullinscorp.com High Density Card Edge .050” [1.27 mm] Contact Centers, .610” [15.49 mm] Insulator Height, Dip Solder/Card Extender/SMT for .031”[0.79mm], .062”[1.57mm] or .093”[2.36mm] Mating PCB G B B 40 D HH D - Sxxx PART NUMBER OPTIONS CONTACT FINISH - RoHS Compliant All platings are Lead Free and have .000050” Nickel underplate Contact Surface Termination B = .000010” Gold .000100” Pure Tin, Matte C = .000030” Gold .000100” Pure Tin, Matte ***M = .000030” Gold .000010” Gold Overall ***(YH, YR, YF & YS Termination only) CONTACT CENTERS B = .050” [1.27 mm] NUMBER OF CONTACT POSITIONS See Chart Below High Density Card Edge MODIFICATION CODE (Consult Factory) OMIT FOR STANDARD -S1648 = .031”±.006” [0.79 ± 0.15] Mating PCB -S1763 = .093”±.008” [2.36 ± 0.20] Mating PCB (for HH, HR, HF, HN & HL Termination Only) MOUNTING STYLE (Opposite Page) D = Flush Mounting N = No Mounting T = Flush Mounting With Threaded Insert Q = Straddle Mount (Card Extender Only)* R = Metal Board Locks TERMINATION TYPE (Opposite Page) HH, YH = Staggered Dip Solder HR, YR = Card Extender HF, YF = Surface Mount HL = Dip Solder HN = Dip Solder YS = Dip Solder READOUT (Opposite Page) D = Dual MATERIALS (INSULATOR/CONTACT) G = PA9T/Phosphor Bronze R = PPS/Phosphor Bronze J = PA9T/Beryllium Copper A = PPS/Beryllium Copper F = PPS/Spinodal** Refer to Page 7 for Operating/Processing Temperatures **Consult factory for special soldering guidelines. YH, YR, YF & YS termination with 'M' plating only. DIMENSIONS Dimensions in [ ] are in millimeters, all others are in inches. (D) MOUNTING SHOWN .300 [7.62] INSERTION DEPTH C 2X Ø .125 [3.18] FIRST POSITION INDICATOR .610 [15.49] .370 [9.40] .250 [6.35] A B D E POSITIONS/ CONTACTS 05/10 06/12 08/16 09/18 10/20 13/26 14/28 15/30 16/32 20/40 22/44 24/48 25/50 28/56 30/60 34/68 35/70 40/80 41/82* 44/88 45/90 50/100 55/110 60/120 62/124 64/128 65/130 66/132 70/140 75/150 80/160 81/162 85/170* 90/180 92/184* 95/190 96/192* 100/200 105/210 106/212 108/216* 110/220 120/240 A±.005 B±.005 0.200 0.250 0.350 0.400 0.450 0.600 0.650 0.700 0.750 0.950 1.050 1.150 1.200 1.350 1.450 1.650 1.700 1.950 2.000 2.150 2.200 2.450 2.700 2.950 3.050 3.150 3.200 3.250 3.450 3.700 3.950 4.000 4.200 4.450 4.550 4.700 4.750 4.950 5.200 5.250 5.350 5.450 5.950 0.300 0.350 0.450 0.500 0.550 0.700 0.750 0.800 0.850 1.050 1.150 1.250 1.300 1.450 1.550 1.750 1.800 2.050 2.100 2.250 2.300 2.550 2.800 3.050 3.150 3.250 3.300 3.350 3.550 3.800 4.050 4.100 4.300 4.550 4.650 4.800 4.850 5.050 5.300 5.350 5.450 5.550 6.050 INCHES C±.015 D±.010 0.490 0.540 0.640 0.690 0.740 0.890 0.940 0.990 1.040 1.240 1.340 1.440 1.490 1.640 1.740 1.940 1.990 2.240 2.290 2.440 2.490 2.740 2.990 3.240 3.340 3.440 3.490 3.540 3.740 3.990 4.240 4.290 4.490 4.740 4.840 4.990 5.040 5.240 5.490 5.540 5.640 5.740 6.240 .060 [1.52] .050 [1.27] TYP. REFER TO TERMINATION TYPE E±.020 0.776 1.090 0.826 1.140 0.926 1.240 0.976 1.290 1.026 1.340 1.176 1.490 1.226 1.540 1.276 1.590 1.326 1.640 1.526 1.840 1.626 1.940 1.726 2.040 1.776 2.090 1.926 2.240 2.026 2.340 2.226 2.540 2.276 2.590 2.526 2.840 2.576 2.890 2.726 3.040 2.776 3.090 3.026 3.340 3.276 3.590 3.526 3.840 3.626 3.940 3.726 4.040 3.776 4.090 3.826 4.140 4.026 4.340 4.276 4.590 4.526 4.840 4.576 4.890 4.776 5.090 5.026 5.340 5.126 5.440 5.276 5.590 5.326 5.640 5.526 5.840 5.776 6.090 5.826 6.140 5.926 6.240 6.026 6.340 ‘N’ Mounting Only F±.010 A±0.13 B±0.13 0.350 0.400 0.500 0.550 0.600 0.750 0.800 0.850 0.900 1.100 1.200 1.300 1.350 1.500 1.600 1.800 1.850 2.100 2.150 2.300 2.350 2.600 2.850 3.100 3.200 3.300 3.350 3.400 3.600 3.850 4.100 4.150 4.350 4.600 4.700 4.850 4.900 5.100 5.350 5.400 5.500 5.600 6.100 5.08 6.35 8.89 10.16 11.43 15.24 16.51 17.78 19.05 24.13 26.67 29.21 30.48 34.29 36.83 41.91 43.18 49.53 50.80 54.61 55.88 62.23 68.58 74.93 77.47 80.01 81.28 82.55 87.63 93.98 100.33 101.60 106.68 113.03 115.57 119.38 120.65 125.73 132.08 133.35 135.89 138.43 151.13 7.62 8.89 11.43 12.70 13.97 17.78 19.05 20.32 21.59 26.67 29.21 31.75 33.02 36.83 39.37 44.45 45.72 52.07 53.34 57.15 58.42 64.77 71.12 77.47 80.01 82.55 83.82 85.09 90.17 96.52 102.87 104.14 109.22 115.57 118.11 121.92 123.19 128.27 134.62 135.89 138.43 140.97 153.67 MILLIMETERS C±0.38 D±0.25 12.45 13.72 16.26 17.53 18.80 22.61 23.88 25.15 26.42 31.50 34.04 36.58 37.85 41.66 44.20 49.28 50.55 56.90 58.17 61.98 63.25 69.60 75.95 82.30 84.84 87.38 88.65 89.92 95.00 101.35 107.70 108.97 114.05 120.40 122.94 126.75 128.02 133.10 139.45 140.72 143.26 145.80 158.50 E±0.51 19.71 27.69 20.98 28.96 23.52 31.50 24.79 32.77 26.06 34.04 29.87 37.85 31.14 39.12 32.41 40.39 33.68 41.66 38.76 46.74 41.30 49.28 43.84 51.82 45.11 53.09 48.92 56.90 51.46 59.44 56.54 64.52 57.81 65.79 64.16 72.14 65.43 73.41 69.24 77.22 70.51 78.49 76.86 84.84 83.21 91.19 89.56 97.54 92.10 100.08 94.64 102.62 95.91 103.89 97.18 105.16 102.26 110.24 108.61 116.59 114.96 122.94 116.23 124.21 121.31 129.29 127.66 135.64 130.20 138.18 134.01 141.99 135.28 143.26 140.36 148.34 146.71 154.69 147.98 155.96 150.52 158.50 153.06 161.04 ‘N’ Mounting Only F±0.25 8.89 10.16 12.70 13.97 15.24 19.05 20.32 21.59 22.86 27.94 30.48 33.02 34.29 38.10 40.64 45.72 46.99 53.34 54.61 58.42 59.69 66.04 72.39 78.74 81.28 83.82 85.09 86.36 91.44 97.79 104.14 105.41 110.49 116.84 119.38 123.19 124.46 129.54 135.89 137.16 139.70 142.24 154.94 * Consult factory for availability. www.sullinscorp.com | 760-744-0125 | toll-free 888-774-3100 | fax 760-744-6081 | info@sullinscorp.com 21
