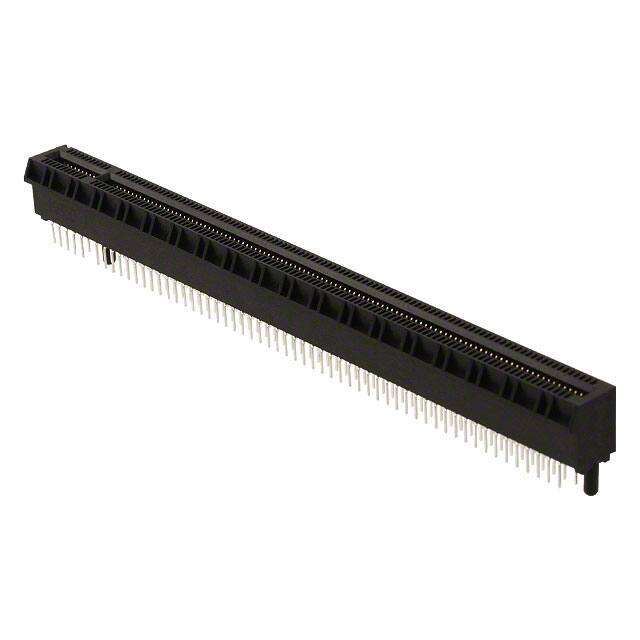

NWE115DHHN-T931

Sullins Card Edge 1.00 mm [.039”] Contact Centers, PCI Express, Dip Solder DIMENSIONS Dimensions in [ ] are in Inches, all others are in Millimeters 1.78[.070] C Sullins Card Edge B 11.65[.459"] 14.50[.571"] PIN A1 IDENTIFIER PIN A1 1.50[.059"] 11.25[ .443"] MAX 8.80 [.346"] PIN B1 1.00[.039] A 10.00[.394"] 1.00[.039"] TYP D 1.65[.065"] 1.35[.053"] 0.35[.014] REFER TO TERMINATION 18/36, 32/64, 49,98, 82/164 POSITION, STAGGERED DIP SOLDER (HH) POSITIONS/ CONTACTS MILLIMETERS A ± 0.10 B ± 0.15 [INCHES] C ± 0.009” D ± 0.008” 18/36 6.00 7.65 25.00 9.15 0.236 0.301 0.984 0.360 32/64 20.00 21.65 39.00 23.15 0.787 0.852 1.535 0.911 49/98 37.00 38.65 56.00 40.15 1.457 1.522 2.205 1.581 82/164 70.00 71.65 89.00 73.15 2.756 2.821 3.504 2.880 PIN A1 IDENTIFIER C ± 0.23 D ± 0.20 A ± 0.004” B ± 0.006” 1.00[.039"] TYP. 1.50[.059"] REF. 7.50[.295"] MAX PIN A1 8.85[.348"] PIN B1 103.00[4.055"] REF. 10.00 [.394"] REF. 11.68 [.460"] 122.00±0.25[4.803"±.010"] 104.67[4.121"] 1.73±0.08[.068"±.003"] 11.25[.442"] MAX 15.60 [.614"] 1.20[.047"] 0.34x0.25 [.013"x.010"] 1.00[.039"] REF. 106.15[4.179"] 14.65 [.577"] 115/230 POSITION, STAGGERED DIP SOLDER (HH) 1.00[.039"] TYP. PIN A1 IDENTIFIER 7.50[.295"] MAX PIN A1 8.85[.348"] PIN B1 10.00 [.394"] 90.00[3.543"] 37.00[1.457"] 149.00±0.25 [5.866"±.010"] 131.68[5.184"] 11.67 [.459"] 38.27[1.507"] 1.73±0.08[.068"±.003"] 91.68[3.609"] 1.73±0.08[.068"±.003"] 1.50[.059"] 11.25[.442"] MAX 15.60 [.614"] 1.20[.047"] 14.65 [.577"] 0.34x0.25 [.013"x.010"] 40.00[1.575"] 133.15[5.242"] 140/280 POSITION, STAGGERED DIP SOLDER (HH) 12 www.sullinscorp.com | 760-744-0125 | toll-free 888-774-3100 | fax 760-744-6081 | info@sullinscorp.com Sullins Card Edge 1.00 mm [.039”] Contact Centers, PCI Express, Dip Solder PART NUMBER OPTIONS N B E 18 D HH N -T9 2 1 COLOR 1 = Black Consult factory for alternate colors CONTACT FINISH - RoHS Compliant All platings are Lead Free and have .000050” Nickel underplate TAIL LENGTH 1 = 2.30mm [.091”] (18, 32, 49, 82, 115) (140 Position, not available) 2 = 2.54mm [.100”] (115 & 140) 3 = 3.10mm[.122”] (18, 32, 49, 82, 115) 3.00mm[.118”] (140 Position) B = C = W = Contact Surface .000010” Gold .000030” Gold Gold Flash Termination .000100” Pure Tin, Matte .000100” Pure Tin, Matte .000100” Pure Tin, Matte Sullins Card Edge MATERIALS (INSULATOR/CONTACT) N = Nylon46/Phosphor Bronze MOUNTING STYLE N = No Mounting CONTACT CENTERS E = 1mm [.039”] TERMINATION TYPE HH = Staggered Dip Solder NUMBER OF CONTACT POSITIONS 18, 32, 49, 82, 115, 140 READOUT D = Dual SPECIFICATIONS • All PCI Express parts meet the latest PCI Express specifications • Supports 2.5 Gb/s Data Transfer Rate (per pair data bandwidth) • Accommodates 1.57mm ± 0 .20mm [.062” ± .008”] PC board • Nylon46 insulator • 1.1 amp current rating per contact READOUT DUAL (D) TERMINATION TYPE MOUNTING STYLE 5.10[.201"] 3.75[.148"] MAX. SEE PART NUMBER CODING FOR TAIL LENGTH 0.25[.010"] 2x Ø 2.00±0.10 [.079"±.003"] 1.25[.049"] Ø 2.20[.087"]MAX 3.25[.128"] Staggered Dip Solder (HH) No Mounting Ears (N) www.sullinscorp.com | 760-744-0125 | toll-free 888-774-3100 | fax 760-744-6081 | info@sullinscorp.com 13
