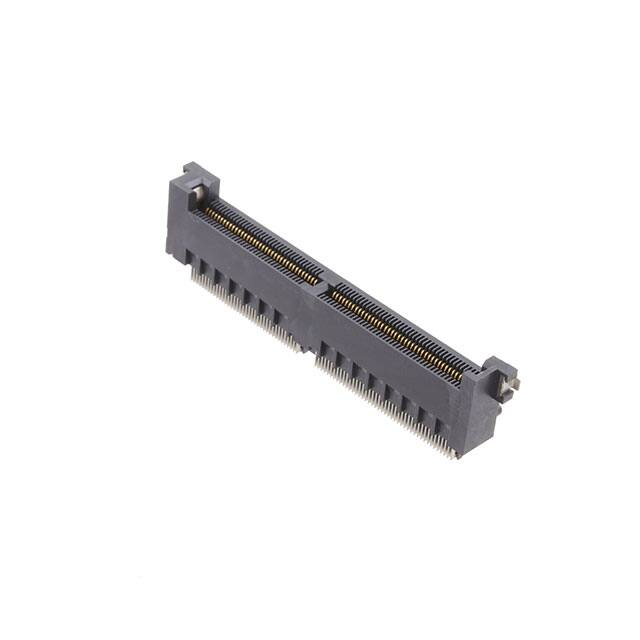

MEC5-080-01-L-RA-W2-TR

MICRO EDGE CARD SYSTEMS 0.50 mm, 0.635 mm, 0.80 mm, 1.00 mm, 1.27 mm, 2.00 mm PITCH FEATURES & BENEFITS • Up to 56 Gbps PAM4 • PCI Express® 4.0 (MEC5 Series) • Solutions for .062" (1.60 mm), and .093" (2.36 mm) thick cards • Choice of pitch: 0.50 mm, 0.635 mm, 0.80 mm, 1.00 mm, 1.27 mm, 2.00 mm • Vertical, right-angle, edge mount Staggered press-fit tails (MEC8-VP) • Available in surface mount and through-hole Justification beam ensures card and body are flushed (MEC5) KEY SPECIFICATIONS SERIES PITCH TOTAL POSITIONS INSULATOR MATERIAL CONTACT MATERIAL OPERATING TEMP RANGE CURRENT RATING VOLTAGE RATING LEAD-FREE SOLDERABLE MEC5 0.50 mm 60-200 Black LCP Phosphor Bronze -55 ℃ to +125 ℃ 1.5 A (2 pins) 125 VAC Yes MEC6 0.635 mm 20-140 Black LCP Phosphor Bronze -55 ℃ to +125 ℃ 2.4 A (2 pins) 195 VAC Yes MEC8 0.80 mm 20-140 Black LCP Phosphor Bronze -55 ℃ to +125 ℃ 1.8 A (4 pins) 185 VAC Yes MEC1 1.00 mm 20-140 Black LCP Phosphor Bronze -55 ℃ to +125 ℃ 2.2 A (2 pins) 250 VAC Yes MECF 1.27 mm 10-100 Black/Natural LCP BeCu -55 ℃ to +125 ℃ 3.5 A (2 pins) 280 VAC Yes MEC2 2.00 mm 10-100 Black/Natural LCP BeCu -55 ℃ to +125 ℃ 3.5 A (2 pins) 238 VAC Yes F-221 samtec.com/EdgeCard Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice. (0.50 mm) .0197" PITCH • MICRO EDGE CARD SOCKET MEC5 - - POSITIONS PER ROW -030, -040, -050, -060, -070, -080 01 - PLATING OPTION - –L =10 µ" (0.25 µm) Gold on contact, Matte Tin on tail (-RA & -DV) -090, -100 (-DV only) - TAIL OPTION –DV - WELD TAB OPTION –W1 Vertical –K = Weld Tab Through-hole (Required for -DV option) –RA Right-angle - OTHER OPTION = Polyimide Pick & Place Pad (Required for -DV) (Not available in -RA) –W2 = Weld Tab Surface Mount (Not available for -DV) MEC5-DV POSITIONS PER ROW B A No. of Positions x (0.50) .0197 + (10.38) .409 B (4.60) .181 A (4.60) .181 Leave blank for Tray Packaging –TR = Tape & Reel –FR = Full Reel Tape & Reel (must order max. quantity per reel; contact Samtec for quantity breaks) No. of Positions x (0.50) .0197 + (10.38) .409 Card Mates: (1.60 mm) .062" thick card with standard board tolerance “X”R (5.85) .230 (5.85) (10.25) .230 .404 (10.25) .404 C A B C –030 (17.10) .673 N/A (21.63) .852 –040 (22.10) .870 N/A (26.63) 1.048 –050 (29.60) 1.165 (15.48) .609 (34.13) 1.344 –060 (34.60) 1.362 (17.98) .708 (39.13) 1.541 –070 (39.60) 1.559 (20.48) .806 (44.13) 1.737 –080 (44.60) 1.756 (22.98) .905 (49.13) 1.934 –090 (49.60) 1.953 (25.48) 1.003 (54.13) 2.131 –100 (54.60) 2.150 (27.98) 1.102 (59.13) 2.328 Note: Polarization rib is not present on –030 & -040 positions C View complete specifications at: samtec.com?MEC5-DV MEC5-RA POSITIONS PER ROW Card Mates: (1.60 mm) .062" thick card with standard board tolerance –30 –40 –50 –60 (10.25) .404 –70 –80 A B (23.38) .920 (28.38) 1.117 (35.88) 1.413 (40.88) 1.609 (45.88) 1.806 (50.88) 2.003 (17.10) .673 (22.10) .870 (29.60) 1.165 (34.60) 1.362 (39.60) 1.559 (44.60) 1.756 C N/A N/A (15.44) .608 (17.94) .706 (20.44) .805 (22.94) .903 Note: Polarization rib is not present on –030 & -040 positions A D (18.16) .715 (23.16) .912 (30.66) 1.207 (35.66) 1.404 (40.66) 1.601 (45.66) 1.798 B C (10.25) .404 D A Note: Some sizes, styles and options are non-standard, non-returnable. (11.38) .448 (13.53) .532 B View complete specifications at: samtec.com?MEC5-RA C samtec.com/EdgeCard Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice. (11.38) D F-221
