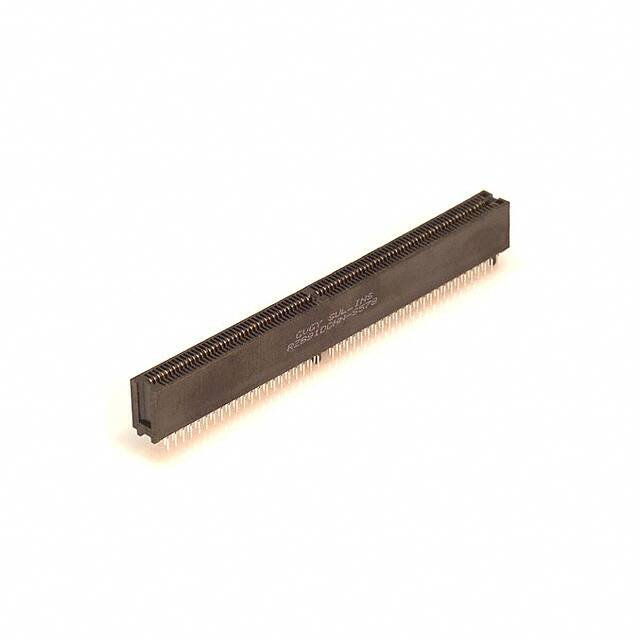

RZB91DCHN-S578

SULLINS PART NUMBER RZB91DCHN−S578 SULLINS ELECTRONICS CORP SAN MARCOS, CA 760−744−0125 FAX 760−744−6081 C = 4.890+−.015 [124.21+−0.38] F = 2.140+−.005 [54.36+−0.13] G = 2.490+−.005 [63.25+−0.13] > Guide Posts after Positions 42 and 91 Card Slot Barrier after Position 42 .012x.018[.30x.46] Staggered Hairpin Bellows Contacts Not Shown 1.0 SPECIFICATIONS FOR A DUAL 91/182 POSITION EDGECARD CONNECTOR 2.0 INSULATION MATERIAL: RYTON 3.0 CONTACT MATERIAL: CA510 PHOSPHOR BRONZE GRADE C 4.0 TEMPERATURE: TO 125 DEGREES C CONTINUOUS 5.0 PLATING: .000010" GOLD ON HEADS, .000100" TIN ON TAILS, .000050" NICKEL UNDERPLATE 6.0 UL FLAMMABILITY RATING: 94V−0 7.0 VOLTAGE RATING: 125 VDC MINIMUM AT SEA LEVEL 8.0 CURRENT RATING: 1 AMPERE 9.0 INSULATION RESISTANCE: 1,000 MEGA OHMS 10.0 BOARD THICKNESS ACCOMMODATED: .054 INCH TO .074 INCH 11.0 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE 12.0 NOT DRAWN TO SCALE PART NUMBER: RZB91DCHN−S578 DATE: 3−9−04 Print PDF 1
