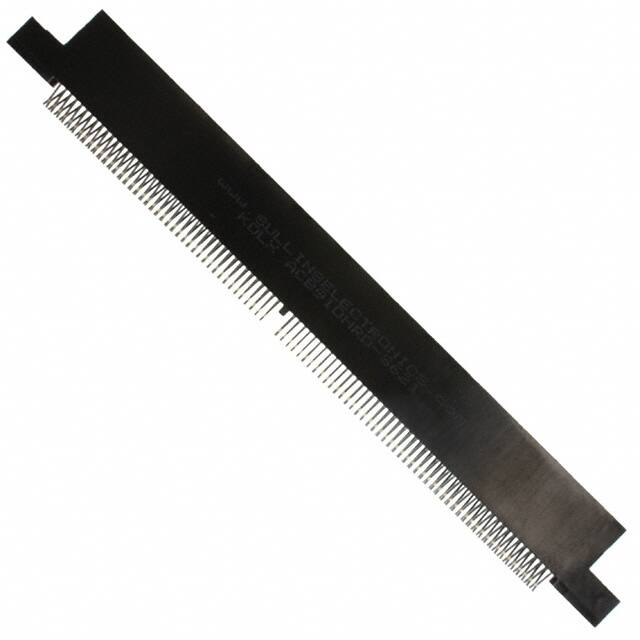

ACB91DHRD-S621

High Density Card Edge .050” [1.27 mm] Contact Centers, .610” [15.49 mm] Insulator Height, [MCA] Dip Solder/Card Extender/SMT Industry Standard Part High Density Card Edge SPECIFICATIONS • Accommodates .062” ± .008” [1.57 mm ± 0.20 mm] PC board (Consult factory for other board thicknesses) • PPS or PA9T insulator • Molded-in key available • High reliability/high cycle hairpin bellow contacts • 1 Amp current rating per contact for contacts fully energized • UL Flammability Rating: 94V-0 READOUT DUAL (D) TERMINATION TYPE Consult Factory for PC Board Layouts .160” [4.06] .160” [4.06] .125” [3.18] 3X .100” [2.54] STAGGERED DIP SOLDER (HH) Accommodates .062”[1.57] PCB CARD EXTENDER (HR) .100” ± .025” [2.54 ± 0.64] .125” [3.18] .250” [6.35] SURFACE MOUNT (HF) DIP SOLDER (HL) .100” [2.54] DIP SOLDER (HN) MOUNTING STYLE Ø.125” [3.18] .250” [6.35] NO MOUNTING EARS (N) 24 .188” [4.78] #4-40 .250” [6.35] FLUSH MOUNTING (D) .062” [1.57] .128” [3.25] FLUSH MOUNTING WITH THREADED INSERT(T) .134” [3.40] .025” [0.64] Ø.078” [1.98] BOARD LOCK (R) STRADDLE MOUNT (Q) (with no mounting ears) www.sullinscorp.com | 760-744-0125 | toll-free 888-774-3100 | fax 760-744-6081 | info@sullinscorp.com High Density Card Edge Industry Standard Part .050” [1.27 mm] Contact Centers, .610” [15.49 mm] Insulator Height, [MCA] Dip Solder/Card Extender/SMT PART NUMBER OPTIONS G B B 56 D HH D - S578 CONTACT FINISH - RoHS Compliant All platings are Lead Free and have .000050” Nickel underplate Contact Surface B = .000010” Gold C = .000030” Gold Termination .000100” Pure Tin, Matte .000100” Pure Tin, Matte CONTACT CENTERS B = .050” [1.27 mm] MODIFICATION (Consult Factory) -S578 = Card Slot Barriers With Guide Posts -S621 = Card Slot Barriers Without Guide Posts MOUNTING STYLE N = No Mounting D = Flush Mounting T = Flush Mounting With Threaded Insert Q = Straddle Mount (Card Extender Only - Consult Factory) R = Metal Board Lock TERMINATION TYPE HH = Staggered Dip Solder HR = Card Extender HF = Surface Mount HL = .250” [6.35] X .160” [4.06] Dip Solder HN = .100” [2.54] X .125” [3.18] Dip Solder READOUT NUMBER OF CONTACT POSITIONS 56, 66, 91, 106 D = Dual DIMENSIONS Dimensions in [ ] are in millimeters, all others are in inches. 3.740±.020 [95.00±0.51] FIRST POSITION INDICATOR (2.850[72.39]) .500 [12.70] (11 POSITIONS) 4.340±.020[110.24±0.51] FIRST POSITION INDICATOR 3.426±.010 [87.02±0.25] 4.026±.010 [102.26±0.25] (3.450 [87.63]) .500 [12.70] (11 POSITIONS) .150 [3.81] 2.200 [55.88] (45 POSITIONS) .150 [3.81] .150[3.81] 2.200 [55.88] (45 POSITIONS) .590 [14.99] .070 [1.78] .050 [1.27] TYP. .590 [14.99] 2X Ø.125 [3.18] .050 [1.27] TYP. .070[1.78] 2.290 [58.17] (2.950 [74.93]) 2X Ø.125[3.18] THRU. .050[1.27] .550 [13.97] 2.290[58.17] (3.550[90.17]) 3.740±.015 [95.00±0.38] 3.140±.015 [79.76±0.38] .300[7.62] INSERTION DEPTH .300 [7.62] INSERTION DEPTH .610 [15.49] .610 [15.49] .250[6.35] .250 [6.35] .575 [14.61] .450 [11.43] (10 POSITIONS) .370 [9.40] .370 [9.40] High Density Card Edge MATERIALS (INSULATOR/CONTACT) G = PA9T/Phosphor Bronze R = PPS/Phosphor Bronze J = PA9T/Beryllium Copper A = PPS/Beryllium Copper Refer to Page 7 for Operating/Processing Temperatures .018 X .012 [0.46 X 0.30] FITS Ø.040 [1.02] MIN. 2.350 [59.69] .575[14.61] 2X Ø .093[2.36] 2X Ø .093[2.36] 2.350 [59.69] .018 X .012 [0.46 X 0.30] FITS Ø .040 [1.02] MIN. GBB66DHHD-S578, 66 (11/45/10) POSITIONS GBB56DHHD-S578, 56 (11/45) POSITIONS 5.490±.020 [139.45±0.51] FIRST POSITION INDICATOR 5.176±.010 [131.47±0.25] (4.600[116.84]) .150 [3.81] 2.400 [60.96] (49 POSITIONS) 2.050 [52.07] (42 POSITIONS) .370[9.40] .070 [1.78] 2.140[54.36] (4.700 [119.38]) .050[1.27] TYP. 2.490 [63.25] 2X Ø.125 [3.18] THRU. 4.890±.015 [124.21±0.38] .300 [7.62] INSERTION DEPTH .610 [15.49] .250 [6.35] .018 X .012 [0.46 X 0.30] FITS Ø .040 [1.02] MIN. 2.550 [64.77] 2X Ø .093[2.36] 2.125 [53.98] GBB91DHHD-S578, 91 (42/49) POSITIONS 6.340±.020 [161.04±0.51] FIRST POSITION INDICATOR .500 [12.70] (11 POSITIONS) 6.026±.010 [153.06±0.25] .150 [3.81] 2.200 [55.88] (45 POSITIONS) (5.450[138.43]) .150[3.81] 2.450[62.23] (50 POSITIONS) .370 [9.40] .070 [1.78] .590 [14.99] .050 [1.27] 2.290 [58.17] .050 [1.27] TYP. 2.550 [64.77] 2X Ø .125 [3.18] THRU. (5.550 [140.97]) 5.740±.015 [145.80±0.38] (.300 [7.62] INSERTION DEPTH) .610 [15.49] .250 [6.35] .575 [14.61] 2.350[59.69] 2X Ø .093[2.36] .018 X .012 [0.46 X 0.30] FITS Ø .040 [1.02] MIN. GBB106DHHD-S578, 106 (11/45/50) POSITIONS www.sullinscorp.com | 760-744-0125 | toll-free 888-774-3100 | fax 760-744-6081 | info@sullinscorp.com 25
