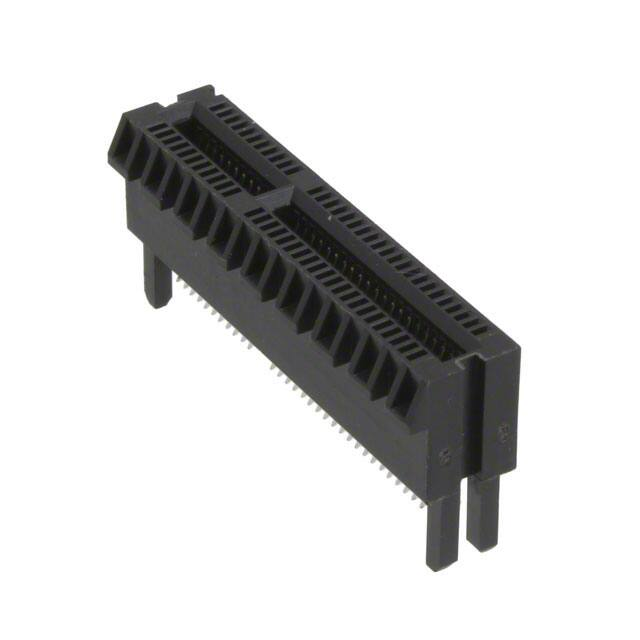

GWE32DHRN-T9410

High Density Card Edge High Density Card Edge 1.00 mm [.039”] Contact Centers, PCI Express, Card Extender for Straddle Mount DIMENSIONS Dimensions in [ ] are in inches, all others are in millimeters. C 1.50 [.059] MAX. 1.73±0.08 [.068±.003] PIN A1 IDENTIFIER PIN A1 3.75 [.148] 7.50 [.295] MAX. PIN B1 11.65 [.459] 14.50 [.571] 10.25 [.404] 1.00 [.039] TYP. B 0.34 [.013] TYP. STRADDLE MOUNT without PEGS Example Part Number: GBE18DHRN-T941 3.00 [.118] 1.00 [.039] A 10.00 [.394] C 1.50 [.059]MAX. PIN A1 IDENTIFIER 1.73±0.08 [.068±.003] PIN A1 10.25 [.404] 7.50 [.295] MAX. PIN B1 16.80 [.661] 1.00 [.039] TYP. B 11.65 [.459] 14.50 [.571] 0.34[.013] TYP. 10.00 [.394] 3.00[.118] A 1.00[.039] STRADDLE MOUNT with PEGS Example Part Number: GBE18DHRN-T9410 PIN A1 IDENTIFIER PIN A1 10.00 [.394] C 1.73±0.08 [.068±.003] A 1.00 [.039] TYP. 1.50 [.059] MAX. 7.50 [.295] MAX. 10.25 [.404] 16.30 [.642] PIN B1 11.65 [.459] 2X 2.50 [.098] B 14.50 [.571] 1.50 [.059] 16.30 [.642] 1.50 [.059] 0.34 [.013] TYP. D 2X Ø 2.00 [.079] STRADDLE MOUNT with CLIPS Example Part Number: GBE18DHRQ-T941 POSITIONS/ CONTACTS 14 MILLIMETERS A INCHES B C D A B C D 18/36 6.00 7.65 25.00 12.30 0.236 0.301 0.984 0.484 32/64 20.00 21.65 39.00 26.30 0.787 0.852 1.535 1.035 49/98 37.00 38.65 56.00 43.30 1.457 1.522 2.205 1.705 82/164 70.00 71.65 89.00 76.30 2.756 2.821 3.504 3.004 www.sullinscorp.com | 760-744-0125 | toll-free 888-774-3100 | fax 760-744-6081 | info@sullinscorp.com High Density Card Edge 1.00 mm [.039”] Contact Centers, PCI Express, Card Extender for Straddle Mount PART NUMBER OPTIONS G B E 18 D HR N -T9 4 1 0 MATERIALS (INSULATOR/CONTACT) G = Nylon/Phosphor Bronze CONTACT FINISH - RoHS Compliant All platings are Lead Free and have .000050” Nickel underplate Contact Surface B = .000010” Gold C = .000030” Gold Termination .000100” Pure Tin, Matte .000100” Pure Tin, Matte W = Gold Flash .000100” Pure Tin, Matte CONTACT CENTERS E = 1 mm [.039”] NUMBER OF CONTACT POSITIONS 18, 32, 49, 82 READOUT D = Dual Operating & Processing Temperature: Consult Factory High Density Card Edge MODIFICATION CODE Omit '0' For Without Pegs ('N' or 'Q' Mounting) 0 = Pegs (Available in 'N' Mounting Only) COLOR 1 = Black TAIL LENGTH 4 = 4.10 mm [.161”] MOUNTING STYLE N = No Mounting Q = Straddle Mount with Clips ('Q' Only Available with T941 Modification) TERMINATION TYPE HR = Card Extender for Straddle Mount SPECIFICATIONS • All PCI Express parts meet the latest PCI Express specifications • Supports 2.5 GT/s, 5.0 GT/s or 8.0 GT/s Data Transfer Rate (per pair data bandwidth) • Accommodates 1.57 mm [.062”] PC board • 1.1 Amp current rating per contact • UL Flammability Rating: 94V-0 TERMINATION TYPE READOUT 5.10 [.201”] 3.75 [.148”] MAX. 3.75 [.148”] 0.80 [.031”] 4.10 [.161”] 1.20 [.047”] DUAL (D) CARD EXTENDER (HR) MOUNTING STYLE 8.60 [.339”] 6.80 [.268”] WITHOUT PEGS NO MOUNTING (N) WITH PEGS ('N' Mounting Style with '0' Modification Code) 2X 1.60 [.063”] 2X 1.80 [.071”] 2X 6.50 [.256”] 2X Ø 2.00 [.079”] WITH CLIPS (Q) www.sullinscorp.com | 760-744-0125 | toll-free 888-774-3100 | fax 760-744-6081 | info@sullinscorp.com 15
