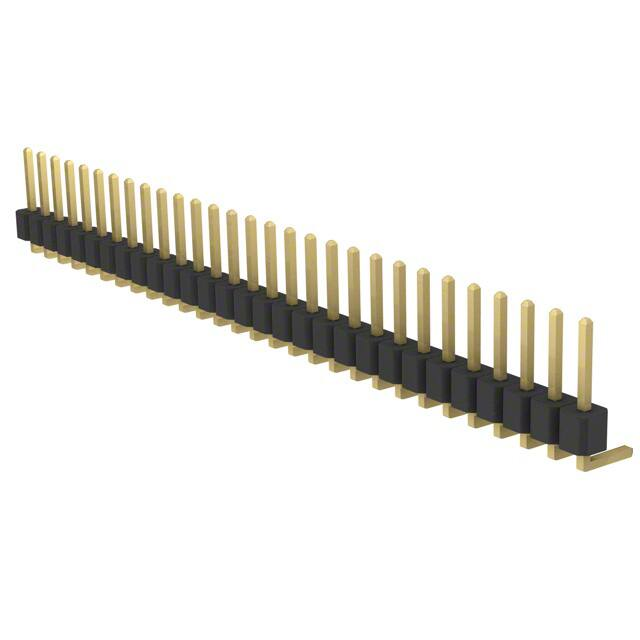

PRPC027SBAN-M71RC

8 7 4 5 6 1 2 3 REVISIONS REV. ECO. NO DESCRIPTION DATE BY A 2268 INITIAL RELEASE 03/21/2011 LH B 2422 ADD 'P' PLATING OPTION 08/08/2011 GC F F E E B .012[ 0.30] .098 2.50 A TAIL DIM. .012[0.30] D D HEAD DIM. .098 2.50 .100 2.54 .158 4.02 .025 0.64 C C A .100 2.54 RECOMMENDED PCB LAYOUT B A .039 1.00 B NOTES: 1. INSULATOR MATERIAL: SEE PART NUMBER CODING, UL 94V-0, BLACK. 2. CONTACT MATERIAL: SEE PART NUMBER CODING. 3. CONTACT PLATING: SEE PART NUMBER CODING. 4. CURRENT RATING: 3 AMPS PER CONTACT. 5. INSULATOR RESISTANCE: 5000 MEGOHMS MIN. 6. CONTACT RESISTANCE: 20 MILLIOHMS MAX. 7. DIELECTRIC WITHSTANDING: 1000 VAC. 8. OPERATING TEMPERATURE: SEE PART NUMBER CODING. 9. *PROCESSING TEMP.: SEE PART NUMBER CODING. DRAWN *INDICATED TEMPERATURE AND TIME IS FOR COMPONENT INSULATOR. HIGHER PROCESSING TEMPERATURES MAY BE USED, PROVIDED HEAT IS APPLIED FROM BACK SIDE OF PCB, AND INSULATOR DOES NOT EXCEED INDICATED TEMPERATURE AND TIME. 8 7 6 5 UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES [MM] Pb TOLERANCES: ANGULAR: .XX= .012 [.30] .XXX= .008 [.20] .XXXX= .0040 [.100] RoHS COMPLIANT 4 INTERPRET DIMENSIONS AND TOLERANCING PER: ASME Y14.5M-2009 3 DATE NAME 03/21/2011 LH THE INFORMATION HEREIN CONTAINS PROPIETARY INFORMATION OF SULLINS ELECTRONICS AND IS NOT TO BE REPRODUCED, USED OR DISCLOSED TO OTHERS FOR ANY PURPOSE EXCEPT AS SPECIFICALLY AUTHORIZED IN WRITING BY AN OFFICER OF SULLINS ELECTRONICS. TITLE HEADER MALE .100"[2.54mm]PITCH, RA PART NUMBER SIZE C _ R _C_ _ _S_ _N-M71RC CAGE CODE 54453 SCALE: 4:1 2 DWG. NO. 11637 SHEET 1 OF 1 1 REV B FILE NAME: Z:\ECO PENDING\2422, TAIWAN HEADER 100 CC ADD P PLATING\11637, _ R_C_ _ _S_ _N-M71RC PRINT: 8/26/2011 A
