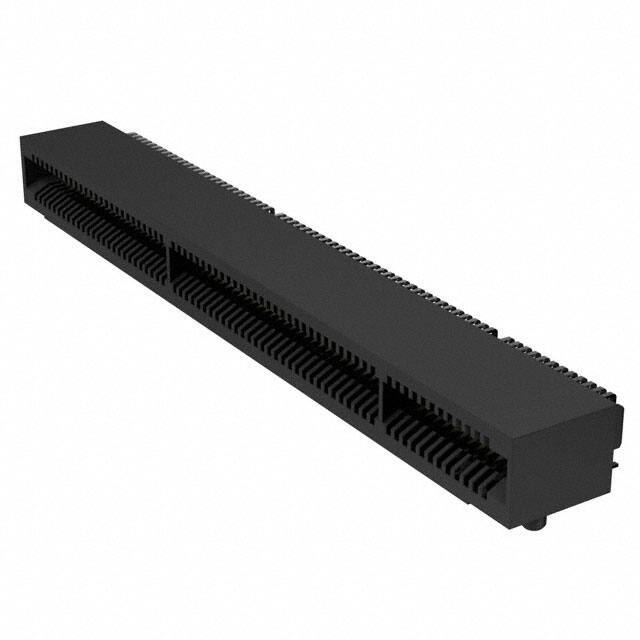

MEC1-170-02-F-D-RA1-SL

MICRO EDGE CARD SYSTEMS 0.50 mm, 0.635 mm, 0.80 mm, 1.00 mm, 1.27 mm, 2.00 mm PITCH FEATURES & BENEFITS • Up to 56 Gbps PAM4 • PCI Express® 4.0 (MEC5 Series) • Solutions for .062" (1.60 mm), and .093" (2.36 mm) thick cards • Choice of pitch: 0.50 mm, 0.635 mm, 0.80 mm, 1.00 mm, 1.27 mm, 2.00 mm • Vertical, right-angle, edge mount Staggered press-fit tails (MEC8-VP) • Available in surface mount and through-hole Justification beam ensures card and body are flushed (MEC5) KEY SPECIFICATIONS SERIES PITCH TOTAL POSITIONS INSULATOR MATERIAL CONTACT MATERIAL OPERATING TEMP RANGE CURRENT RATING VOLTAGE RATING LEAD-FREE SOLDERABLE MEC5 0.50 mm 60-200 Black LCP Phosphor Bronze -55 ℃ to +125 ℃ 1.5 A (2 pins) 125 VAC Yes MEC6 0.635 mm 20-140 Black LCP Phosphor Bronze -55 ℃ to +125 ℃ 2.4 A (2 pins) 195 VAC Yes MEC8 0.80 mm 20-140 Black LCP Phosphor Bronze -55 ℃ to +125 ℃ 1.8 A (4 pins) 185 VAC Yes MEC1 1.00 mm 20-140 Black LCP Phosphor Bronze -55 ℃ to +125 ℃ 2.2 A (2 pins) 250 VAC Yes MECF 1.27 mm 10-100 Black/Natural LCP BeCu -55 ℃ to +125 ℃ 3.5 A (2 pins) 280 VAC Yes MEC2 2.00 mm 10-100 Black/Natural LCP BeCu -55 ℃ to +125 ℃ 3.5 A (2 pins) 238 VAC Yes F-221 samtec.com/EdgeCard Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice. 14 G b p s (1.00 mm) .0394" PITCH • RIGHT-ANGLE/EDGE MOUNT EDGE CARD SOCKET MEC1 - 1 POSITIONS PER ROW - - 02 PLATING OPTION 05, 08, 20, 30, 40, 50, 60, 70 - D - - RA1 –F = Gold Flash on contact, Matte Tin on tail - NP SL - –NP Leave blank for tubes Leave blank for polarization = Tape & Reel (not available with 70 positions) = No Polarization (8 positions only) –L = 10 µ" (0.25 µm) Gold on contact, Matte Tin on tail –TR –FR = Full Reel Tape & Reel (must order max. quantity per reel; contact Samtec for quantity breaks) (not available with 70 positions) MEC1-RA Card Mates: (1.60 mm) .062" thick card “X”R (11.96) .471 (8.89) .350 (No. of Positions + 2) x (1.00) .03937 + (2.54) .100 (6.81) .268 (No. of Positions + 2) x (1.00) .03937 POSITIONS PER ROW POLARIZED POSITIONS (No Contact) 05 3, 4 08 5, 6 20 15, 16 30 21, 22 40 31, 32 50 41, 42 60 31, 32, 63 & 64 70 53, 54, 115 & 116 View complete specifications at: samtec.com?MEC1-RA MEC1 - 1 POSITIONS PER ROW - 02 - 05, 08, 20, 30, 40, 50, 60, 70 PLATING OPTION - D - EM2 –F = Gold Flash on contact, Matte Tin on tail - NP –L Leave blank for Tray Packaging Leave blank for polarization = Tape & Reel (not available with 60 & 70 positions) –FR (No. of Positions + 2) x (1.00) .03937 + (12.45) .490 (6.81) .268 POSITIONS POLARIZED POSITIONS PER ROW (No Contact) (No. of Positions + 2) x (1.00) .03937 (8.89) .350 (4.70) .185 Note: Some sizes, styles and options are non-standard, non-returnable. –TR = Full Reel Tape & Reel (must order max. quantity per reel; contact Samtec for quantity breaks) (not available with 60 & 70 positions) MEC1-EM Card Mates: (1.60 mm) .062" thick card “X”R –NP = No Polarization (8 positions only) = 10 µ" (0.25 µm) Gold on contact, Matte Tin on tail - View complete specifications at: samtec.com?MEC1-EM 05 3, 4 08 5, 6 20 15, 16 30 21, 22 40 31, 32 50 41, 42 60 31, 32, 63 & 64 70 53, 54, 115 & 116 samtec.com/EdgeCard Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice. F-221
